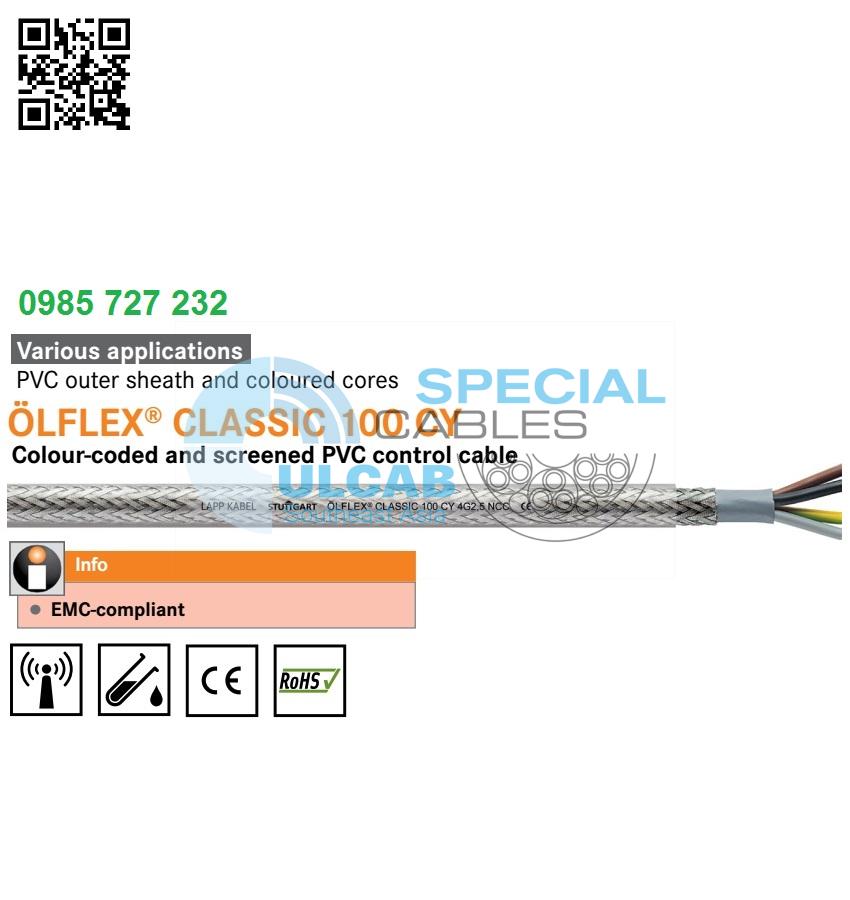

LAPP KABEL ÖLFLEX® CLASSIC 100 CY
Colour-coded and screened PVC control cable
ÖLFLEX® CLASSIC 100 CY – flexible PVC cable, colour coded and shielded. Power and control cable for various applications, from 1.5 mm²: 450/750V
EMC-compliant
Benefits
- Space-saving installation due to small cable diameters
- High electrical safety due to 4 kV test voltage
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Conveyor and transport systems
- Servo drives
- In EMC-sensitive environments
(electromagnetic compatibility)
Product features
- Flame-retardant according to IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
- High level of screening
Low coupling resistance
(max. 250 Ω/km at 30 MHz)
Norm references / approvals
- Based on IEC 60227-5 and EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Cores twisted in layers
- PVC inner sheath, grey
- Tinned-copper braiding
- PVC sheath, transparent
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
- From 6 cores: ÖLFLEX® colour code (appendix T7)
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- Up to 1.0 mm²: U0/U: 300/500 V
- From 1.5 mm²: U0/U: 450/750 V
Fixed, protected installation:
U0/U: 600/1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 100 CY; U0/U: 300/500 V | ||||
| 0035001 | 2 X 0.5 | 7 | 41 | 75 |
| 0035002 | 3 G 0.5 | 7,3 | 46 | 83 |
| 00350033 | 4 G 0.5 | 7,9 | 55 | 99 |
| 00352013 | 5 G 0.5 | 8,4 | 66 | 112 |
| 0035202 | 7 G 0.5 | 8,9 | 80 | 132 |
| 0035004 | 2 X 0.75 | 7,4 | 46 | 86 |
| 0035005 | 3 G 0.75 | 7,9 | 57 | 100 |
| 00350063 | 4 G 0.75 | 8,4 | 64 | 115 |
| 00350163 | 5 G 0.75 | 8,9 | 77 | 130 |
| 0035203 | 7 G 0.75 | 9,7 | 102 | 161 |
| 0035220 | 2 X 1.0 | 7,9 | 56 | 98 |
| 0035221 | 3 G 1.0 | 8,2 | 65 | 111 |
| 00352223 | 4 G 1.0 | 8,7 | 78 | 130 |
| 00352233 | 5 G 1.0 | 9,5 | 89 | 153 |
| 0035204 | 7 G 1.0 | 10,2 | 113 | 185 |
| ÖLFLEX® CLASSIC 100 CY; U0/U: 450/750 V | ||||
| 0035000 | 2 X 1.5 | 9,9 | 65 | 132 |
| 0035458 | 3 G 1.5 | 10,3 | 79 | 170 |
| 00354593 | 4 G 1.5 | 11,3 | 97 | 204 |
| 00354603 | 5 G 1.5 | 12,6 | 116 | 246 |
| 0035461 | 7 G 1.5 | 13,9 | 149 | 320 |
| 0035011 | 3 G 2.5 | 11,8 | 146 | 211 |
| 00350173 | 4 G 2.5 | 13,5 | 167 | 310 |
| 00350123 | 5 G 2.5 | 14,6 | 200 | 326 |
| 0035289 | 7 G 2.5 | 15,9 | 288 | 444 |
| 00350183 | 4 G 4 | 15,1 | 237 | 403 |
| 00350133 | 5 G 4 | 16,5 | 328 | 478 |
| 00350193 | 4 G 6 | 16,6 | 318 | 521 |
| 00350143 | 5 G 6 | 18,2 | 441 | 624 |
| 0034953 | 3 G 10 | 18,9 | 414 | 690 |
| 00350213 | 4 G 10 | 21,1 | 558 | 843 |
| 00352903 | 5 G 10 | 23,1 | 714 | 1004 |
| 0034954 | 3 G 16 | 21,7 | 607 | 910 |
| 00350223 | 4 G 16 | 23,9 | 804 | 1164 |
| 00350153 | 5 G 16 | 26,8 | 1,050.0 | 1812 |
| 0034955 | 3 G 25 | 26,6 | 936 | 1330 |
| 00350233 | 4 G 25 | 29,4 | 1,289.0 | 1903 |
| 00350243 | 5 G 25 | 32,6 | 1,446.0 | 2374 |
| 0034956 | 3 G 35 | 29,4 | 1,258.0 | 1370 |
| 00350253 | 4 G 35 | 32,4 | 1,693.0 | 2489 |
| 00350263 | 5 G 35 | 36 | 1,975.0 | 2771 |
| 0034952 | 3 G 50 | 35,1 | 1,748.0 | 2590 |
| 00350273 | 4 G 50 | 38,8 | 2,342.0 | 3362 |
| 00350283 | 4 G 70 | 43,7 | 3,035.0 | 3719 |
| 00350293 | 4 G 95 | 50,4 | 4,055.0 | 5849 |
| 00354303 | 4 G 120 | 56,8 | 5,225.0 | 7509 |
| 00354313 | 4 G 150 | 62,2 | 6,300.0 | 7800 |
| 00354323 | 4 G 185 | 67,8 | 7,753.0 | 9866 |
