Thanh Đấu Nối LS-VINA ( LS-PP-SC6A-24P-WM-ERI ) CAT6A,24 cổng,chống nhiễu,có thanh quản lý cáp
Description
LS Simple™ Modular type Category 6A Shielded Patch Panel
With accessories & full installation instructions
Individually terminated using 180° IDC(Insulation Displacement Connectors)
FCC 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 6A) and ISO/IEC 11801 compliant
Mounting on 19-inch standard rack (EIA-310-D)
Mounted wire management
RoHS complaint
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000/1G BASE-T (IEEE 802.3)
• 155 Mbps
• ATM LAN 1.2Gbit/s
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Listed | |
| Category | ANSI/TIA-568-C.2 Category 6A | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ℃ | ‐40 ~ 68 |
| Humidity | % | 10 ~ 90 |
| IDC accept | AWG | 22~26 (Solid wire) |
| PHYSICAL | ||
| Cap & Housing | High impact flame retardant plastic, UL 94V-2 rated over | |
| Spring Wire | Phosphor bronze plated with 50uin thick gold over nickel Undercoat | |
| IDC Plastic | Polycarbonate, UL 94V-2 rated over | |
| IDC Contact | Phosphor Bronze, plated with tin over nickel underplate |
Part Numbers
| Description | Dimension (H x W, inch) |
Part Number | Compatible Items |
| 24-port Category 6A Shielded Patch Panel |
1.75 x 19 | LS-PP-SC6A-24P-WM-ERI | Rack : 19-inch standard 1U Rack Tool : LS-EZT-TOOL-ER LS-TOOL-MJ, LS-STOOL |
Drawing

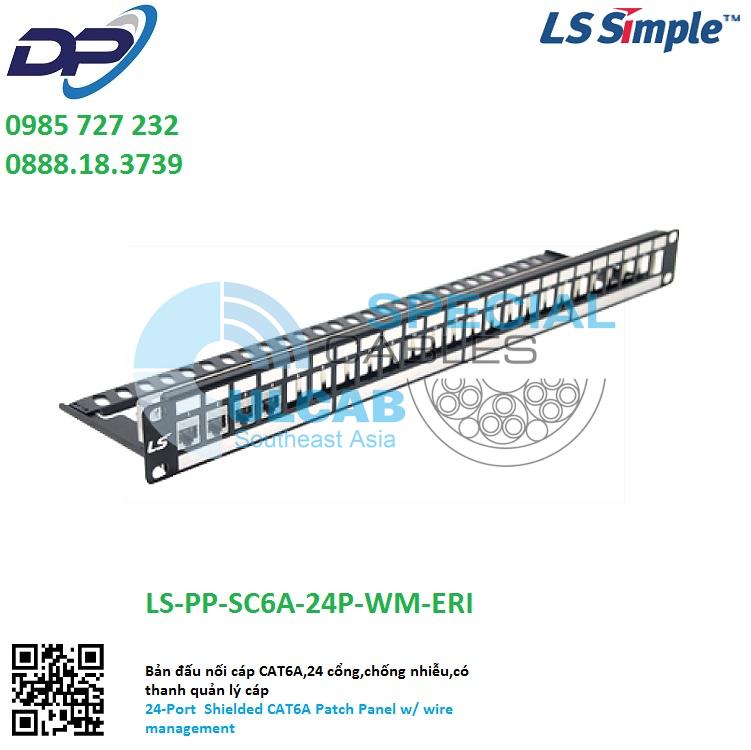

LS-PP-SC6A-24P-WM-ERI
Bản đấu nối cáp CAT6A,24 cổng,chống nhiễu,có
thanh quản lý cáp
24-Port Shielded CAT6A Patch Panel w/ wire
management
DATA SHEET
