Thanh Đấu Nối LS-VINA ( LS-PP-UC6-24P-WM ) CAT6,24 cổng,có thanh quản lý cáp,UL Listed và RoHS
Description
LS Simple™ PCB 1U 24 way Patch Panel
•UL Listed & ETL Verified (4‐connection)
•Rear cable management, accessories and full installation instructions are included
•T568B configuration
•Individually terminated using IDC(Insulation Displacement Connectors)
•47 CFR part 68 (RJ‐45), ANSI/TIA‐568‐C.2(Category 6) and ISO/IEC 11801 compliant
•High impact flame retardant plastic housing
•Easy managing & wiring by using the double hook’s structure between panel and management bar
•Mounted on 19‐inch standard rack
•RoHS compliant
Application
•Horizontal Distribution & Backbone Cabling
•4/16 Mbps Token Ring (IEEE 802.5)
•10/100/1000 BASE‐T (IEEE 802.3)
•155 Mbps ATM
•100Mbps TP‐PMD
•ISDN, ADSL
•ATM LAN 1.2G
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Listed & ETL Verified (4‐connection) | |
| Category | ANSI/TIA‐568‐C.2 Category 6 | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20 (89) |
| Temperature | ℃ | ‐40 ~ 68 |
| Humidity | % | 10 ~ 90 |
| IDC accept | AWG | 22~26 (Solid wire) |
| PHYSICAL | ||
| Cap & Housing | High impact flame retardant plastic, UL 94V‐0 | |
| Spring Wire | Phosphor bronze plated with 50μin gold over | |
| IDC Plastic | Polycarbonate, UL 94V‐0 rated | |
| IDC Contact | Phosphor bronze plated with minimum 100μin thick tin |
Part Numbers
| Description | Dimension (H x W, inch) |
Part Number | Compatible Items |
| 24‐Port Category 6 Unshielded Patch Panel with wire management |
1.73 x 19 | LS‐PP‐UC6‐24P‐WM | Rack : 19‐inch standard 1U rack Tool: LS‐TOOL‐MJ, LS‐STOOL |
Drawing

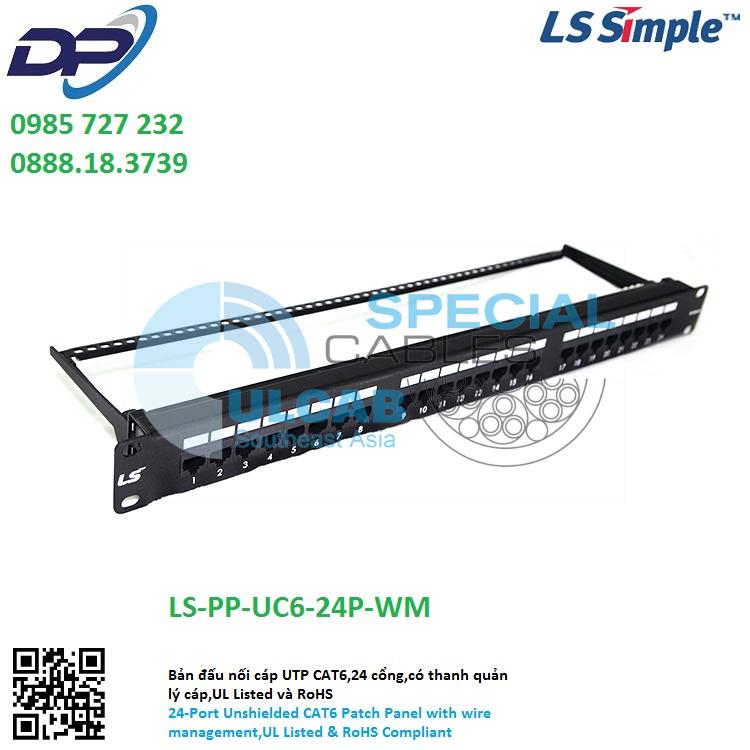

LS‐PP‐UC6‐24P‐WM
Bản đấu nối cáp UTP CAT6,24 cổng,có thanh quản
lý cáp,UL Listed và RoHS
24-Port Unshielded CAT6 Patch Panel with wire
management,UL Listed & RoHS Compliant
DATA SHEET
