Power and control cables
Various applications
PVC outer sheath and coloured cores

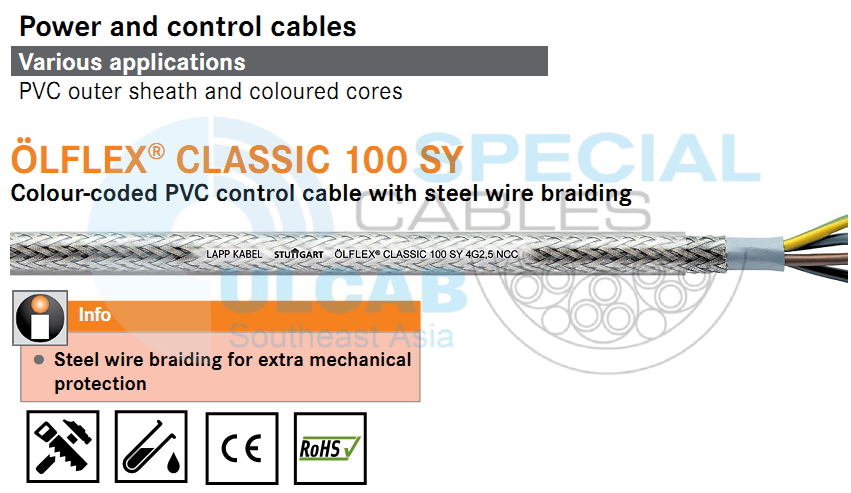

LAPP KABEL ÖLFLEX® CLASSIC 100 SY
Colour-coded PVC control cable with steel wire braiding
ÖLFLEX® CLASSIC 100 SY – flexible PVC cable, colour coded and with steel wire braiding. Power and control cable for various applications
Steel wire braiding for extra mechanical protection
Benefits
- Additional mechanical protection thanks to steel wire braiding
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Areas with increased requirements regarding mechanical stress
Product features
- Flame-retardant according to IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
Norm references / approvals
- Based on IEC 60227-5 and EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Cores twisted in layers
- PVC inner sheath, grey
- Braid of galvanized steel wires
- PVC sheath, transparent
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
- From 6 cores: ÖLFLEX® colour code (appendix T7)
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- Up to 1.5 mm²: U0/U: 300/500 V
- From 2.5 mm²: U0/U: 450/750 V
From 2.5 mm² in the case of fixed and protected installation: U0/U: 600/1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 100 SY; U0/U: 300/500 V | ||||
| 0016022 | 2 X 0.75 | 8,2 | 14,4 | 97 |
| 0016023 | 3 G 0.75 | 8,5 | 21,6 | 108 |
| 00160243 | 4 G 0.75 | 9,2 | 28,8 | 126 |
| 00160253 | 5 G 0.75 | 9,7 | 36 | 146 |
| 0016027 | 7 G 0.75 | 10,3 | 50 | 172 |
| 0016031 | 12 G 0.75 | 12,9 | 86 | 260 |
| 0016042 | 2 X 1.0 | 8,5 | 19,2 | 137 |
| 0016043 | 3 G 1.0 | 8,8 | 29 | 154 |
| 00160443 | 4 G 1.0 | 9,5 | 38,4 | 180 |
| 00160453 | 5 G 1.0 | 10,1 | 48 | 202 |
| 0016047 | 7 G 1.0 | 11 | 67 | 242 |
| 0016057 | 25 G 1.0 | 18,1 | 240 | 653 |
| 0016064 | 2 X 1.5 | 9,3 | 29 | 172 |
| 0016065 | 3 G 1.5 | 9,7 | 43 | 191 |
| 00160663 | 4 G 1.5 | 10,2 | 58 | 217 |
| 00160673 | 5 G 1.5 | 11,1 | 72 | 268 |
| 0016069 | 7 G 1.5 | 11,9 | 101 | 311 |
| 0016072 | 12 G 1.5 | 15,4 | 173 | 499 |
| 0016075 | 18 G 1.5 | 17,6 | 259 | 652 |
| 0016077 | 25 G 1.5 | 20,3 | 360 | 913 |
| 0016078 | 32 G 1.5 | 22,1 | 461 | 1065 |
| ÖLFLEX® CLASSIC 100 SY; U0/U: 450/750 V | ||||
| 0016087 | 2 X 2.5 | 12,1 | 48 | 245 |
| 0016088 | 3 G 2.5 | 12,6 | 72 | 278 |
| 00160893 | 4 G 2.5 | 13,9 | 96 | 339 |
| 00160903 | 5 G 2.5 | 15,2 | 120 | 397 |
| 0016092 | 7 G 2.5 | 16,3 | 168 | 470 |
| 0016101 | 2 X 4 | 13,6 | 76,8 | 329 |
| 00161023 | 4 G 4 | 15,7 | 154 | 457 |
| 00161033 | 5 G 4 | 17,1 | 192 | 545 |
| 0016106 | 3 G 6 | 15,8 | 173 | 544 |
| 00161073 | 4 G 6 | 17,2 | 230 | 687 |
| 00161083 | 5 G 6 | 18,8 | 288 | 798 |
| 00161103 | 4 G 10 | 21,3 | 384 | 1009 |
| 00161113 | 5 G 10 | 23,3 | 480 | 1197 |
| 00161133 | 4 G 16 | 24,1 | 614 | 1384 |
| 00161143 | 5 G 16 | 26,8 | 768 | 1740 |
| 00161163 | 4 G 25 | 29,4 | 960 | 2021 |
| 00161173 | 5 G 25 | 32,6 | 1,200.0 | 2464 |
| 00161183 | 4 G 35 | 32,4 | 1,344.0 | 2570 |
| 00161193 | 5 G 35 | 36 | 1,680.0 | 3185 |
| 00161203 | 4 G 50 | 38,8 | 1,920.0 | 3514 |
