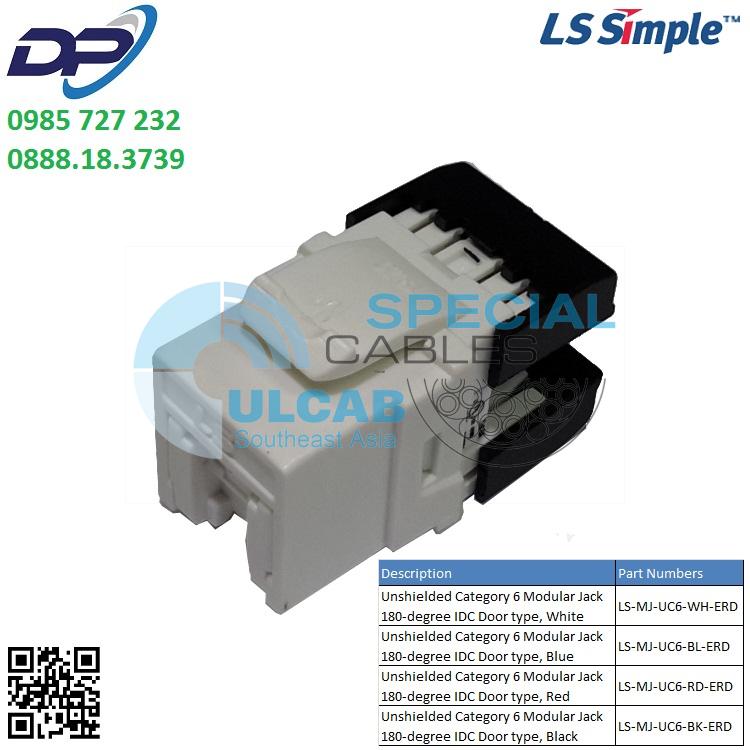

Nhân Mạng LS-VINA ( LS-MJ-UC6-BK-ERD ) Unshielded CAT 6 Modular Jack 180-degree IDC Door type, Mầu Black

Nhân Mạng LS-VINA ( LS-MJ-UC6-BK-ERD ) Unshielded CAT 6 Modular Jack 180-degree IDC Door type, Mầu Black

Description

LS Simple™ Unshielded Modular Jack Door type
• User instructions and basic wiring layout for standard configuration are included
• 180-degree slim Modular Jack
• Designed and manufactured to meet demanding of international standards.
• Individually terminated using slim-IDC (Insulation Displacement Connectors)
• T568A or T568B configuration
• 47 CFR part 68(RJ-45), ANSI/TIA-568-C.2(Category 6) and ISO/IEC 11801 compliant
• RoHS compliant
• High impact flame retardant plastic housing
• Easy installation & smart cabling arrangement by wiring cap

Application

• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps
• ATM LAN 1.2G
• 100Mbps TP-PMD
• ISDN, ADSL
• Analog & digital voice(VoIP) and video
• Full broadband and baseband video

Technical Details

Item Unit Information
FEATURE
Approvals UL Listed
Category ANSI/TIA-568-C.2 Category 6
Meet 47 CFR part 68
Wiring scheme T568A/T568B
ELECTRICAL
Current Rating Amps 1.5
Insulation Resistance Mega‐ohm > 500
Contact Resistance milli‐ohm < 20
DC Resistance ohm < 0.1
Voltage VAC < 150
MECHANICAL
Insertion Life Mating cycles 750
Pull Force lbs(N) 20(89)
Temperature ‐40 ~ 68
Humidity % (RH) 10 ~ 90
IDC accept AWG 23~26 (Solid wire)
PHYSICAL
Cap Polycarbonate (PC resin), UL 94V-2 rated, Transparent Black
Housing Acrylonitrile Butadiene Styrene (ABS resin) + Polycarbonate (PC resin)
UL94V-0 rated
Jack Contacts Phosphor bronze flat wire, plated with 1.27um (50uin)
thick hard gold on contact area over nickel underplate
Contact Bracket Polycarbonate (PC resin), UL94V-2 rated
PCB FR4, UL94V-0 rated
IDC Terminals Phosphor Bronze, plated with tin over nickel underplate
IDC Block Polycarbonate (PC resin) + Glass Fiber, UL94V-2 rated

Part Numbers

Description Part Numbers Dimension
(H x W x D, mm)
Compatible Items
Unshielded Category 6 Modular Jack 180-degree IDC Door type, White LS-MJ-UC6-WH-ERD 19.3 * 16.8 * 29.0 Panel : LS Empty Panel series
Outlet : LS-FP-SA(SF)(SU)(US) series
Tool : LS-EZT-TOOL-ER
Unshielded Category 6 Modular Jack 180-degree IDC Door type, Blue LS-MJ-UC6-BL-ERD 19.3 * 16.8 * 29.0
Unshielded Category 6 Modular Jack 180-degree IDC Door type, Red LS-MJ-UC6-RD-ERD 19.3 * 16.8 * 29.0
Unshielded Category 6 Modular Jack 180-degree IDC Door type, Black LS-MJ-UC6-BK-ERD 19.3 * 16.8 * 29.0
