Power and control cables
Various applications
PVC outer sheath and coloured cores

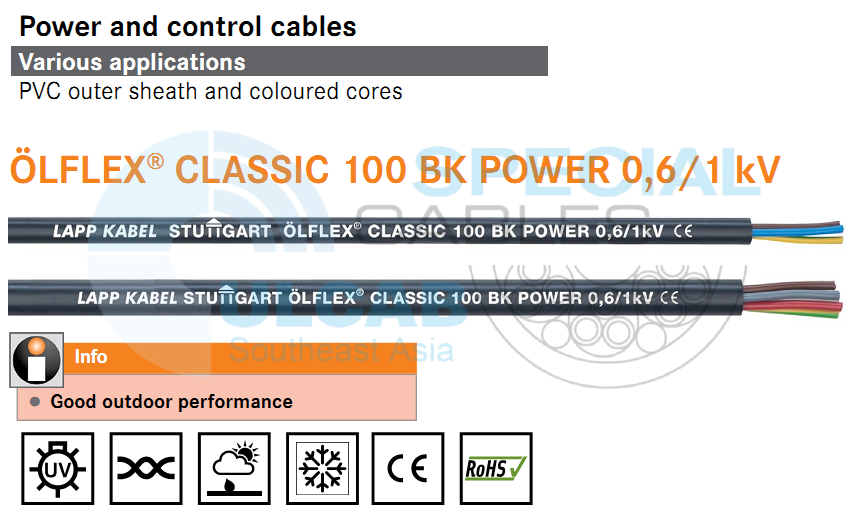

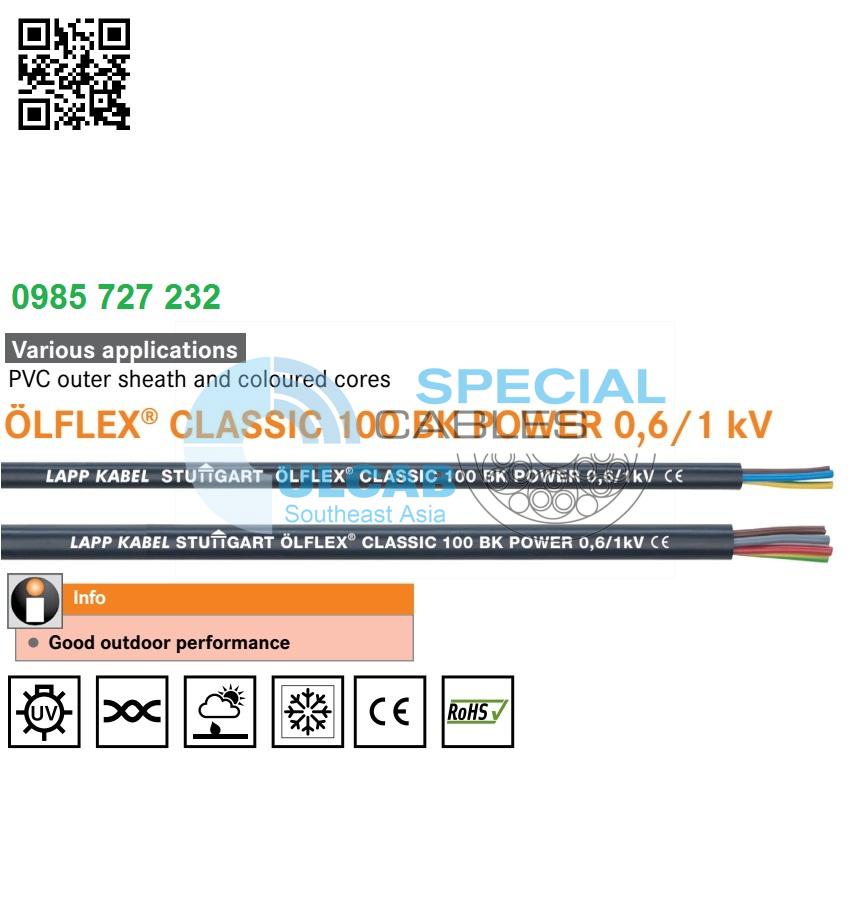

LAPP KABEL ÖLFLEX® CLASSIC 100 BK POWER 0,6/1 kV
ÖLFLEX® CLASSIC 100 BK POWER 0.6/1 kV power and control cable for various applications, PVC, class 5, colour-coded up to 5 cores, outdoor use and burial
Good outdoor performance
Benefits
- High electrical safety due to 4 kV test voltage
Application range
- Plant construction
Machine building
Heating and air-conditioning systems
Power plant engineering
Event equipment - For fixed installation as well as occasional flexing with free, non-continuously recurring movement without tensile load
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
- Suitable for outdoor applications
- Suitable for direct burial
Product features
- Flame-retardant according to IEC 60332-1-2
- UV and weather-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
- Flexible at temperatures down to -30°C
Design
- Finely stranded bare copper wires
- Core insulation: PVC, cold-resistant
- PVC sheath, cold-resistant, black (RAL 9005)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
- From 6 cores: ÖLFLEX® colour code (appendix T7)
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Torsion movement in WTG
- TW-0 & TW-1, refer to Appendix T0
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 600/1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -30°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX ® CLASSIC 100 BK POWER 0,6/1 kV | ||||
| 1120456 | 2 X 1.0 | 8.6 | 19.2 | 98 |
| 1120457 | 3 G 1.0 | 9.0 | 29.0 | 112 |
| 1120458 | 4 G 1.0 | 9.6 | 38.0 | 131 |
| 1120459 | 5 G 1.0 | 10.4 | 48.0 | 152 |
| 1120462 | 2 X 1.5 | 9.6 | 29.0 | 123 |
| 1120463 | 3 G 1.5 | 10.1 | 43.0 | 144 |
| 1120464 | 4 G 1.5 | 10.8 | 58.0 | 170 |
| 1120465 | 5 G 1.5 | 11.7 | 72.0 | 199 |
| 1120468 | 2 X 2.5 | 10.8 | 48.0 | 147 |
| 1120469 | 3 G 2.5 | 11.3 | 72.0 | 182 |
| 1120470 | 4 G 2.5 | 12.2 | 96.0 | 225 |
| 1120471 | 5 G 2.5 | 13.3 | 120.0 | 266 |
| 1120474 | 4 G 4 | 13.8 | 154.0 | 324 |
| 1120475 | 4 G 6 | 15.1 | 230.0 | 442 |
| 1120476 | 4 G 10 | 18.7 | 384.0 | 707 |
| 1120477 | 4 G 16 | 21.3 | 614.0 | 1100 |
| 1120478 | 4 G 25 | 26.2 | 960.0 | 1600 |
| 1120479 | 4 G 35 | 29.1 | 1,344.0 | 2400 |
