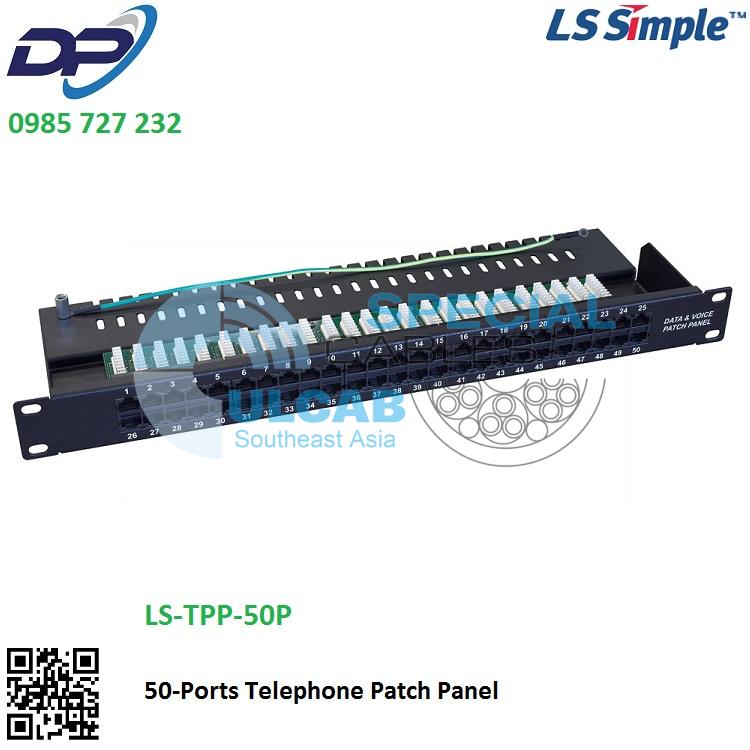

Thanh Đấu Nối LS-VINA ( LS-TPP-50P ) 50-Ports Telephone Patch Panel
Description
These PCB type 1U 25P / 50-port High Density Voice Unshielded Patch Panels are offered with 4-pin connecting RJ45 connector . The panel modules are individually terminated using insulation Displacement Connectors ( IDC ) giving assurance of wire connection and using punching down tool . ( LS-TOOL-MJ or LS-STOOL )
- Mounted on 19-inch standard rack
- High impact flame retardant plastic housing
- RoHS compliant
Application
- Voice Telephone
- PBX, X21, V.11
- So-Bus, S1/S2
- Ethernet 10Base-T
- Token Ring 4Mbit/s
Technical Details
| Item | Unit | Information |
| FEATURE | ||
| Approvals | UL Listed | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega-ohm | > 500 |
| Contact Resistance | milli-ohm | < 20 |
| DC Resistance | Ohm max | < 0.1 |
| Voltage | VAC max | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ̊̊̊̊°C | -40 ~ 68 |
| Humidity | % (RH) | 10 ~ 90 |
| IDC accept | AWG | 22~26 (Solid wire) |
| PHYSICAL | ||
| Cap & Housing | High impact flame retardant plastic, UL 94V-0 | |
| Spring Wire | Phosphor bronze plated with gold | |
| IDC Plastic | Polycarbonate, UL 94V-0 ratedGG | |
| IDC Contact | Phosphor bronze plated with tinGG |
Part Numbers
| Description | Dimension (H * W * D, inch) |
Part Numbers | Compatible Items |
| 25-Pair Telephone Patch Panel |
1.75” x 19” (1U) | LS-TPP-25P | 19” standard rack 1U Tool : 1-pin punching down tool |
| 50-Pair Telephone Patch Panel |
1.75” x 19” (1U) | LS-TPP-50P | 19” standard rack 1U Tool : 1-pin punching down tool |
Drawing (25P)
DATA SHEET
