Simplex Fiber Optic Cordage
Description

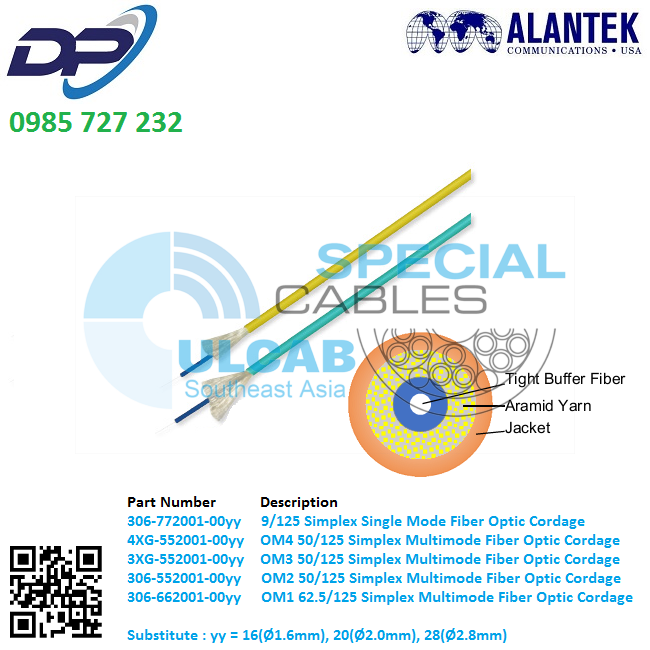

The fibers, either single mode or multimode type, are 900µm Tight buffer fiber. A
layer of Aramid yarn is applied around the Tight buffer fibers as strength member.
Application
This cable is suitable for Indoor jumper or interconnect between instruments and
communication equipment.
Standards
ISO/IEC 11801, IEC-60793-2, ANSI/TIA 568-C.3, ITU G.651.1/G.652.D/G.657.A
Characteristics
• Accurate fiber excess length ensures good mechanical and temperature performance
• Low induced attenuation within the operating temperature range
Physical Properties
| No. of Fiber | Fiber | Buffer OD | Strength Member | Jacket | Weight | |
| Material | 1 | 245µm ±5µm | PVC | Aramid | PVC | kg/km |
| Dimension | 600µm ±50µm 900µm ±50µm 900µm ±50µm |
1.6mm ±0.5mm 2.0mm ±0.5mm 2.8mm ±0.5mm |
3.65 5.25 7.8 |
| Temperature range | ℃ | -20 to +60 | |
| Min. Bending Radius (mm) | Install | x Diameter | 20 |
| Min. Bending Radius (mm) | Static | x Diameter | 10 |
| Max. Tension (N) | Short-term | N | 200 |
| Max. Tension (N) | Long-term | N | 100 |
| Max. Crushing Resistance (N/100mm2) | N/100mm2 | 1000 | |
Optical Properties
| SM G652.D | OM4 50/125 μm |
OM3 50/125 μm |
OM2 50/125 μm |
OM1 62.5/125 μm |
||
| Attenuation (+ 20 °C) Bandwidth (Class B) |
@ 850 nm | – | ≤ 3.0 dB/km | ≤ 3.0 dB/km | ≤ 3.0 dB/km | ≤ 3.0 dB/km |
| @ 1300 nm | – | ≤ 1.0 dB/km | ≤ 1.0 dB/km | ≤ 1.0 dB/km | ≤ 1.0 dB/km | |
| @1310 nm | ≤ 0.36 dB/km | – | – | – | – | |
| @1550 nm | ≤ 0.22 dB/km | – | – | – | – | |
| @ 850 nm | – | ≥ 3500 MHz-km | ≥ 1500 MHz-km | ≥ 500 MHz-km | ≥ 200 MHz-km | |
| @ 1300 nm | – | ≥ 500 MHz-km | ≥ 500 MHz-km | ≥ 500 MHz-km | ≥ 500 MHz-km | |
| Effective modal bandwidth |
@ 850 nm | – | ≥4700 | ≥2000 | – | – |
| Cable Cut-off Wavelength , λcc | ≤ 1260 nm | – | – | – | – | |
| Part Number | Description |
| 306-772001-a016 | 9/125 Simplex Single Mode Fiber Optic Cordage |
| 4XG-552001-a016 | OM4 50/125 Simplex Multimode Fiber Optic Cordage |
| 3XG-552001-a016 | OM3 50/125 Simplex Multimode Fiber Optic Cordage |
| 306-552001-a016 | OM2 50/125 Simplex Multimode Fiber Optic Cordage |
| 306-662001-a016 | OM1 62.5/125 Simplex Multimode Fiber Optic Cordage |
| 306-772001-a020 | 9/125 Simplex Single Mode Fiber Optic Cordage |
| 4XG-552001-a020 | OM4 50/125 Simplex Multimode Fiber Optic Cordage |
| 3XG-552001-a020 | OM3 50/125 Simplex Multimode Fiber Optic Cordage |
| 306-552001-a020 | OM2 50/125 Simplex Multimode Fiber Optic Cordage |
| 306-662001-a020 | OM1 62.5/125 Simplex Multimode Fiber Optic Cordage |
| 306-772001-a028 | 9/125 Simplex Single Mode Fiber Optic Cordage |
| 4XG-552001-a028 | OM4 50/125 Simplex Multimode Fiber Optic Cordage |
| 3XG-552001-a028 | OM3 50/125 Simplex Multimode Fiber Optic Cordage |
| 306-552001-a028 | OM2 50/125 Simplex Multimode Fiber Optic Cordage |
| 306-662001-a028 | OM1 62.5/125 Simplex Multimode Fiber Optic Cordage |
Note:
1. a = production code, subjected to change upon shipping
2. Available in G657A1 and G657A2, upon request
DATA SHEET
