Duplex Fiber Optic Cordage

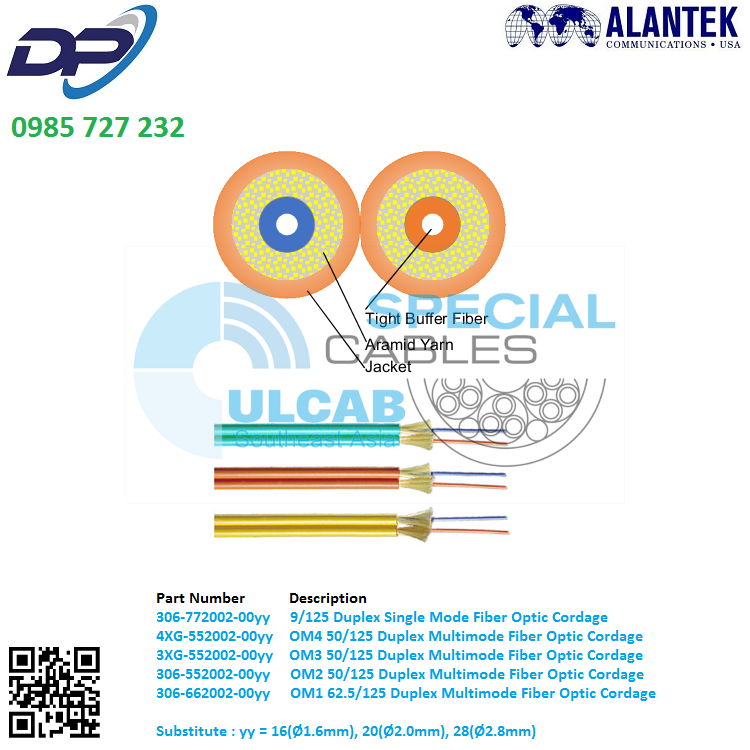

Description
The fibers, either single mode or multimode type, are 900µm Tight buffer fiber. A
layer of Aramid yarn is applied around the Tight buffer fibers as strength member.
The cable is completed with a figure-8 PVC jacket.
Application
This cable is suitable for Indoor jumper or interconnect between instruments and
communication equipment.
Standards
ISO/IEC 11801, IEC-60793-2, ANSI/TIA 568-C.3, ITU G.651.1/G.652.D/G.657.A
Characteristics
• Accurate fiber excess length ensures good mechanical and temperature performance
• Low induced attenuation within the operating temperature range
Physical Properties
| No. of Fiber | Fiber | Buffer OD | Strength Member | Jacket | Weight | |
| Material | 2 | 245µm ±5µm | PVC | Aramid | PVC | kg/km |
| Dimension | 600µm ±50µm 900µm ±50µm 900µm ±50µm |
1.6mm(±0.5mm) x 3.4mm(±0.3mm) 2.0mm(±0.5mm) x 4.2mm(±0.3mm) 2.8mm(±0.5mm) x 6.0mm(±0.3mm) |
7.3 10.5 15.6 |
| Temperature range | ℃ | -20 to +60 | |
| Min. Bending Radius (mm) | Install | x Diameter | 20 |
| Min. Bending Radius (mm) | Static | x Diameter | 10 |
| Max. Tension (N) | Short-term | N | 200 |
| Max. Tension (N) | Long-term | N | 100 |
| Max. Crushing Resistance (N/100mm2) | N/100mm2 | 1000 | |
Optical Properties
| SM G652.D | OM4 50/125 μm |
OM3 50/125 μm |
OM2 50/125 μm |
OM1 62.5/125 μm |
||
| Attenuation (+ 20 °C) Bandwidth (Class B) |
@ 850 nm | – | ≤ 3.0 dB/km | ≤ 3.0 dB/km | ≤ 3.0 dB/km | ≤ 3.0 dB/km |
| @ 1300 nm | – | ≤ 1.0 dB/km | ≤ 1.0 dB/km | ≤ 1.0 dB/km | ≤ 1.0 dB/km | |
| @1310 nm | ≤ 0.36 dB/km | – | – | – | – | |
| @1550 nm | ≤ 0.22 dB/km | – | – | – | – | |
| @ 850 nm | – | ≥ 3500 MHz-km | ≥ 1500 MHz-km | ≥ 500 MHz-km | ≥ 200 MHz-km | |
| @ 1300 nm | – | ≥ 500 MHz-km | ≥ 500 MHz-km | ≥ 500 MHz-km | ≥ 500 MHz-km | |
| Effective modal bandwidth |
@ 850 nm | – | ≥4700 | ≥2000 | – | – |
| Cable Cut-off Wavelength , λcc | ≤ 1260 nm | – | – | – | – | |
| Part Number | Description |
| 306-772002-0016 | 9/125 Duplex Single Mode Fiber Optic Cordage |
| 4XG-552002-0016 | OM4 50/125 Duplex Multimode Fiber Optic Cordage |
| 3XG-552002-0016 | OM3 50/125 Duplex Multimode Fiber Optic Cordage |
| 306-552002-0016 | OM2 50/125 Duplex Multimode Fiber Optic Cordage |
| 306-662002-0016 | OM1 62.5/125 Duplex Multimode Fiber Optic Cordage |
| 306-772002-0020 | 9/125 Duplex Single Mode Fiber Optic Cordage |
| 4XG-552002-0020 | OM4 50/125 Duplex Multimode Fiber Optic Cordage |
| 3XG-552002-0020 | OM3 50/125 Duplex Multimode Fiber Optic Cordage |
| 306-552002-0020 | OM2 50/125 Duplex Multimode Fiber Optic Cordage |
| 306-662002-0020 | OM1 62.5/125 Duplex Multimode Fiber Optic Cordage |
| 306-772002-0028 | 9/125 Duplex Single Mode Fiber Optic Cordage |
| 4XG-552002-0028 | OM4 50/125 Duplex Multimode Fiber Optic Cordage |
| 3XG-552002-0028 | OM3 50/125 Duplex Multimode Fiber Optic Cordage |
| 306-552002-0028 | OM2 50/125 Duplex Multimode Fiber Optic Cordage |
| 306-662002-0028 | OM1 62.5/125 Duplex Multimode Fiber Optic Cordage |
DATA SHEET
