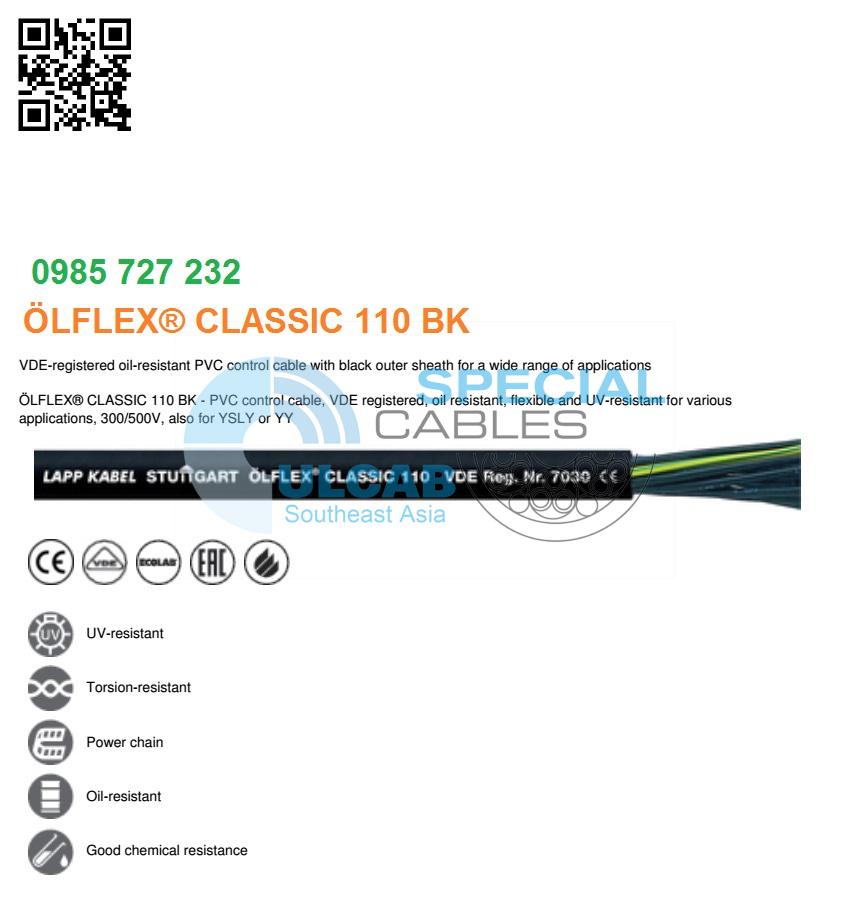

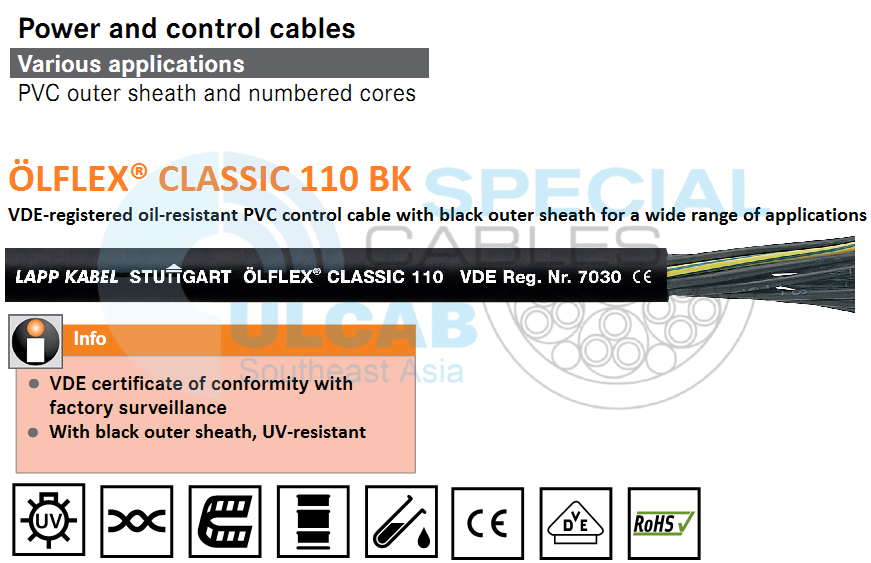

LAPP KABEL ÖLFLEX® CLASSIC 110 BK
VDE-registered oil-resistant PVC control cable with black outer sheath for a wide range of applications
ÖLFLEX® CLASSIC 110 BK – PVC control cable, VDE-registered, oil-resistant, flexible and UV-resistant for various applications, 300/500V, also for YSLY or YY
- With black outer sheath, UV-resistant
- VDE certificate of conformity with
factory surveillance
Benefits
- Suitable for outdoor applications
- Wide choice of standardized lengths and individual cuts
Application range
- For fixed installation as well as occasional flexing with free, non-continuously recurring movement without tensile load
- Dry or damp rooms that are subject to normal mechanical loads
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
- In power chains for a travelling distance up to 5 m and 0.2 – 1 million bending cycles for the following dimensions: 0.5 to 2.5 mm² and 2 to 7 cores
- Suitable for outdoor applications
Product features
- Flame-retardant according to IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
- Oil-resistant according to DIN EN 50290-2-22 (TM54)
- UV and weather-resistant according to ISO 4892-2
Norm references / approvals
- VDE reg. no. 7030 for the following sizes:up to 2.5 mm²: 2 – 65 coresfrom 4 mm²: 2 – 7 coresfrom 25 mm²: 2 – 5 cores
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Cores twisted in layers
- PVC sheath, black (RAL 9005)
Technical Data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to DIN EN 60228 (VDE 0295), class 5 / IEC 60228 class 5
Torsion movement in WTG
- TW-0 & TW-1, refer to Appendix T0
Minimum bending radius
- Occasional flexing: 10 x outer diameter
In power chains: 15 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -15°C to +70°C
In power chains: -5°C to +70°C - Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1119809 | 2 X 0.75 | 5,4 | 14,4 | 45 |
| 1119871 | 3 G 0.75 | 5,7 | 21,6 | 55 |
| 1119892 | 3 X 0.75 | 5,7 | 21,6 | 55 |
| 1119872 | 4 G 0.75 | 6,2 | 28,8 | 66 |
| 1119893 | 4 X 0.75 | 6,2 | 28,8 | 66 |
| 1119873 | 5 G 0.75 | 6,7 | 36 | 79 |
| 1119874 | 7 G 0.75 | 7,3 | 50,4 | 101 |
| 1119875 | 12 G 0.75 | 9,9 | 86,4 | 171 |
| 1119876 | 18 G 0.75 | 11,7 | 130 | 244 |
| 1119877 | 25 G 0.75 | 13,8 | 180 | 337 |
| 1119878 | 34 G 0.75 | 15,9 | 245 | 448 |
| 1119894 | 2 X 1 | 5,7 | 19,2 | 53 |
| 1119244 | 3 G 1 | 6 | 28,8 | 65 |
| 1119895 | 3 X 1 | 6 | 28,8 | 65 |
| 1119245 | 4 G 1 | 6,5 | 38,4 | 79 |
| 1119896 | 4 X 1 | 6,5 | 38,4 | 79 |
| 1119246 | 5 G 1 | 7,1 | 48 | 94 |
| 1119897 | 5 X 1 | 7,1 | 48 | 94 |
| 1119247 | 7 G 1 | 8 | 67,2 | 126 |
| 1119248 | 12 G 1 | 10,5 | 115 | 205 |
| 1119249 | 18 G 1 | 12,7 | 173 | 290 |
| 1119251 | 25 G 1 | 14,7 | 240 | 390 |
| 1119252 | 34 G 1 | 17,1 | 326 | 551 |
| 1119898 | 2 X 1.5 | 6,3 | 28,8 | 68 |
| 1119020 | 3 G 1.5 | 6,7 | 43,2 | 84 |
| 1119899 | 3 X 1.5 | 6,7 | 43,2 | 84 |
| 1119879 | 4 G 1.5 | 7,2 | 57,6 | 104 |
| 1119900 | 4 X 1.5 | 7,2 | 57,6 | 104 |
| 1119880 | 5 G 1.5 | 8,1 | 72 | 128 |
| 1119911 | 5 X 1.5 | 8,1 | 72 | 128 |
| 1119881 | 7 G 1.5 | 8,9 | 101 | 166 |
| 1119913 | 7 X 1.5 | 8,9 | 101 | 166 |
| 1119882 | 12 G 1.5 | 12 | 173 | 279 |
| 1119883 | 18 G 1.5 | 14,4 | 259 | 407 |
| 1119884 | 25 G 1.5 | 16,9 | 360 | 560 |
| 1119914 | 2 X 2.5 | 7,5 | 48 | 100 |
| 1119885 | 3 G 2.5 | 8,1 | 72 | 132 |
| 1119886 | 4 G 2.5 | 8,9 | 96 | 163 |
| 1119887 | 5 G 2.5 | 10 | 120 | 200 |
| 1119888 | 7 G 2.5 | 11,1 | 168 | 267 |
| 1119889 | 12 G 2.5 | 14,8 | 288 | 444 |
| 1119890 | 18 G 2.5 | 17,8 | 432 | 648 |
| 1119891 | 25 G 2.5 | 20,8 | 600 | 890 |
| 1119915 | 3 G 4 | 9,9 | 115,2 | 201 |
| 1119916 | 4 G 4 | 10,8 | 154 | 249 |
| 1119917 | 5 G 4 | 12,1 | 192 | 315 |
| 1119918 | 4 G 6 | 13 | 230 | 365 |
| 1119919 | 5 G 6 | 14,5 | 288 | 447 |
| 1119920 | 4 G 10 | 16,2 | 384 | 590 |
| 1119921 | 5 G 10 | 18,1 | 480 | 722 |
| 1119922 | 4 G 16 | 18,8 | 614 | 1087 |
| 1119923 | 5 G 16 | 21,2 | 768 | 1370 |
