Cáp Quang LS-VINA ( DT-NVTKVXX/ARR MG24X(24N9.2OR) ) Indoor,Tight Buffer,Multimode, OM2, 50/125um,24 Cores,PVC,Orange

04
Th5

Cáp Quang LS-VINA ( DT-NVTKVXX/ARR MG24X(24N9.2OR) ) Indoor,Tight Buffer,Multimode, OM2, 50/125um,24 Cores,PVC,Orange

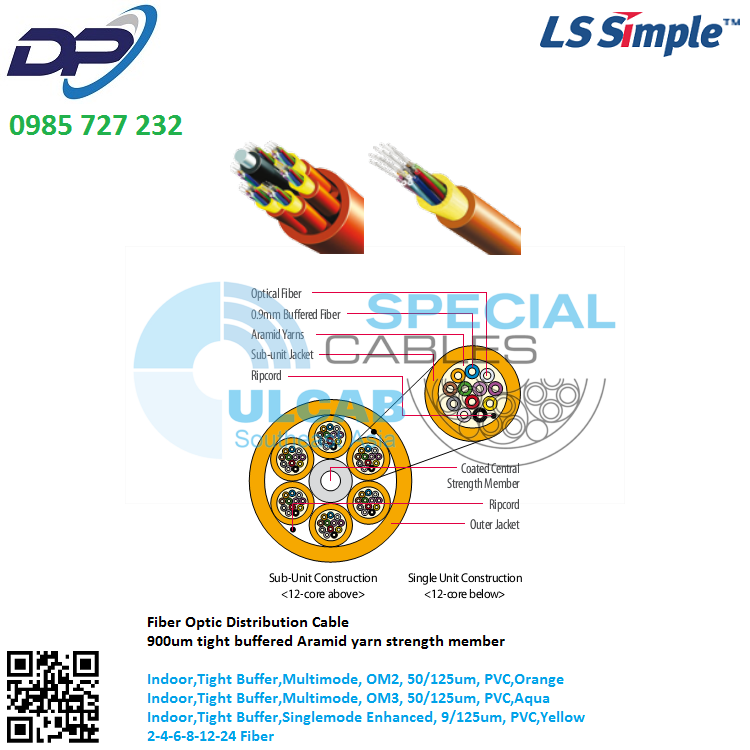

Fiber Optic Distribution Cable
900um tight buffered Aramid yarn strength member

Description
•Distribution cables are rugged, high performance
optical communication cables for inside plant installations
•Backbone & Computer Room Cabling
•Compact design for limited conduit space
•RoHS (Restriction of the use of certain Substances Directive) Complied

Specification
•ISO / IEC 11801
•Telcordia GR-409-CORE
•ANSI/ ICEA S-83-596

Options
•Fiber
– Single mode, 50㎛, 62.5㎛Multi mode Available
•Sub-unit & Outer Jacket color
– 62.5/125㎛1Gbe : Orange
– 50/125㎛1Gbe : Orange
– 50/125㎛10Gbe : Aqua
•If the cable will be used indoor/outdoor
applications, outer cable jacket shall be black
•Outer jacket : PVC or LSZH (Low Smoke Zero Halogen)

Sub-unit Identification
•The identification code & number is printed on the  sub-unit jacket every 10cm(eg. SM#1, SM#2)

Color of Buffer

01 – Blue 07 – Red 13 – Blue/Black dash 19 – Red/Black dash
02 – Orange 08 – Black 14 – Orange/Black dash 20 – Black/White dash
03 – Green 09 – Yellow 15 – Green/Black dash 21 – Yellow/Black dash
04 – Brown 10 – Violet 16 – Brown/Black dash 22 – Violet/Black dash
05 – Gray 11 – Pink 17 – Gray/Black dash 23 – Pink/Black dash
06 – White 12 – Aqua 18 – White/Black dash 24 – Aqua/Black dash

Mechanical Characteristics
Storage Temperature : -4 to +158℉(-20 to 70℃)/ Operating Temperature : 14 to +140℉(-10 to 60℃)

Construction Fiber
Count		 Nominal
Outer Diameter		 Nominal
Weight		 Maximum Tensile Load Crush Load Minimum Bend Radius
Short Term Long Term Short Term Long Term Loaded Installed
[mm] [Inch] [kg/km] [lb/kft] [N] [N] [N/cm] [N/cm] [mm] [Inch] [mm] [Inch]
Single Unit 2 4.5 0.18 20 0.04 660 300 50 25 90 3.54 45 1.79
4 5.3 0.21 25 0.06 660 300 50 25 106 4.17 53 2.11
6 5.7 0.22 30 0.07 660 300 50 25 114 4.49 57 2.27
8 6 0.24 35 0.08 660 300 50 25 120 4.72 60 2.39
12 6.7 0.26 40 0.09 660 450 50 25 134 5.28 67 2.67
16 8.5 0.33 70 0.15 1,320 800 100 50 170 6.69 85 3.38
18 8.9 0.35 75 0.17 1,320 1,350 100 50 178 7.01 89 3.54
24 9.8 0.39 90 0.2 1,320 1,350 100 50 196 7.72 98 3.9
6 Fiber Sub units 24* 13.9 0.55 160 0.35 1,320 1,350 100 50 278 10.94 139 5.53
12 Fiber Sub units 48 18.3 0.72 275 0.61 1,320 1,350 100 50 366 14.41 183 7.28

Part Number

DT-NVTKVXX/ARR MG24X(24N9.2OR)

Cáp quang dùng trong nhà,loại Tight Buffer,Đa mốt,OM2,50/125um,24 lõi quang,vỏ PVC,Màu cam
Indoor,Tight Buffer,Multimode, OM2, 50/125um,24 Cores,PVC,Orange

Xuất Xứ: Korea
