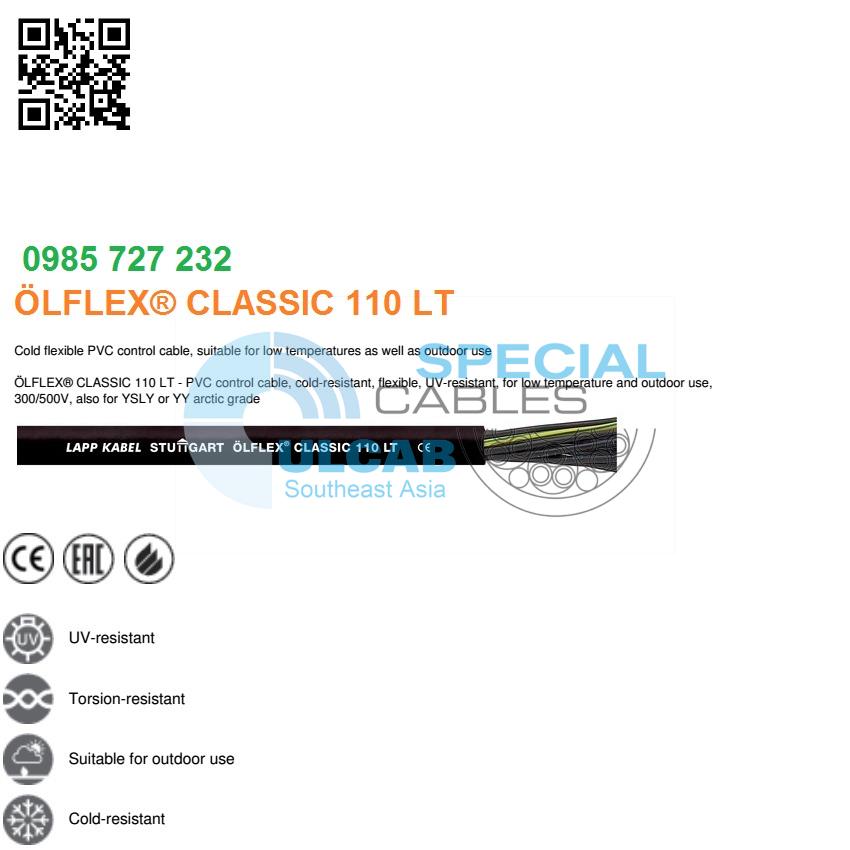

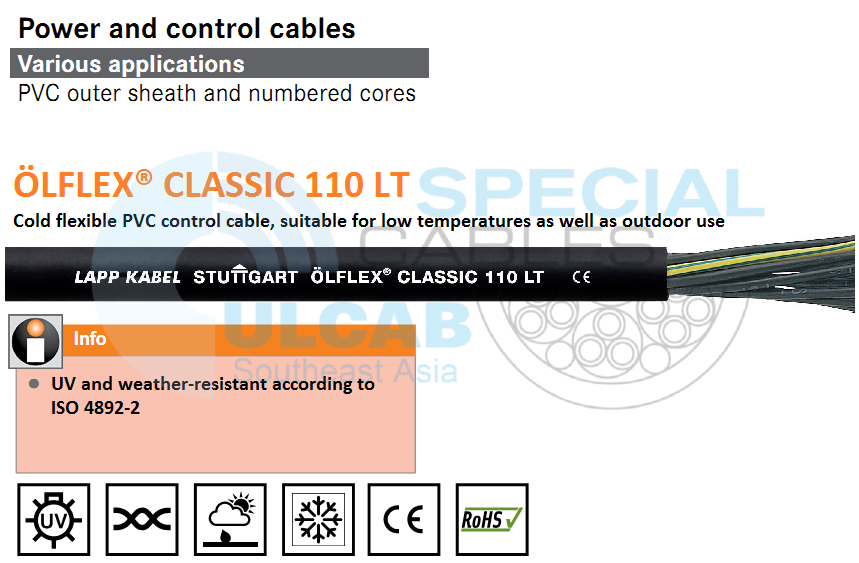

LAPP KABEL ÖLFLEX® CLASSIC 110 LT
PVC control cable that is flexible at cold temperatures, suitable for low temperatures as well as outdoor use
ÖLFLEX® CLASSIC 110 LT – PVC control cable, cold-resistant, flexible, UV-resistant, for low temperature and outdoor use, 300/500V, also for YSLY or YY
- Successor of ÖLFLEX CLASSIC 110 COLD, flexible down to -30°C
- UV and weather-resistant according to ISO 4892-2
- Torsion resistant for drip loops
Benefits
- Inexpensive control cable for flexible outdoor use
- Space-saving installation due to small cable diameters
- High electrical safety due to 4 kV test voltage
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Refrigerated goods plants, cold storage
- Suitable for outdoor applications
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
- Flame-retardant according to IEC 60332-1-2
- Flexible at temperatures down to -30°C
- UV and weather-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
Norm references / approvals
- Based on EN 50525-2-51
Design
- Finely stranded bare copper wires
- Core insulation: PVC, cold-resistant
- Cores twisted in layers
- Sheath: PVC, cold-resistant, black
Technical Data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Torsion movement in WTG
- TW-0 & TW-2, refer to Appendix T0
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -30°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1120730 | 2 X 0.75 | 5,4 | 14,4 | 45 |
| 1120731 | 3 X 0.75 | 5,7 | 21,6 | 55 |
| 1120732 | 3 G 0.75 | 5,7 | 21,6 | 55 |
| 1120733 | 4 X 0.75 | 6,2 | 28,8 | 66 |
| 1120734 | 4 G 0.75 | 6,2 | 28,8 | 66 |
| 1120735 | 5 G 0.75 | 6,7 | 36 | 79 |
| 1120736 | 7 G 0.75 | 7,3 | 50,4 | 101 |
| 1120737 | 12 G 0.75 | 9,9 | 86,4 | 171 |
| 1120738 | 18 G 0.75 | 11,7 | 130 | 244 |
| 1120739 | 25 G 0.75 | 13,8 | 180 | 337 |
| 1120740 | 2 X 1 | 5,7 | 19,2 | 53 |
| 1120741 | 3 X 1 | 6 | 28,8 | 65 |
| 1120742 | 3 G 1 | 6 | 28,8 | 65 |
| 1120743 | 4 X 1 | 6,5 | 38,4 | 79 |
| 1120744 | 4 G 1 | 6,5 | 38,4 | 79 |
| 1120745 | 5 G 1 | 7,1 | 48 | 94 |
| 1120746 | 7 G 1 | 8 | 67,2 | 126 |
| 1120747 | 12 G 1 | 10,5 | 115 | 205 |
| 1120748 | 18 G 1 | 12,7 | 173 | 300 |
| 1120749 | 25 G 1 | 14,7 | 240 | 408 |
| 1120750 | 2 X 1.5 | 6,3 | 29 | 68 |
| 1120751 | 3 X 1.5 | 6,7 | 43 | 84 |
| 1120752 | 3 G 1.5 | 6,7 | 43 | 84 |
| 1120753 | 4 X 1.5 | 7,2 | 58 | 104 |
| 1120754 | 4 G 1.5 | 7,2 | 58 | 104 |
| 1120755 | 5 X 1.5 | 8,1 | 72 | 128 |
| 1120756 | 5 G 1.5 | 8,1 | 72 | 128 |
| 1120757 | 7 X 1.5 | 8,9 | 101 | 166 |
| 1120758 | 7 G 1.5 | 8,9 | 101 | 166 |
| 1120759 | 12 G 1.5 | 12 | 173 | 279 |
| 1120760 | 18 G 1.5 | 14,4 | 259 | 407 |
| 1120761 | 25 G 1.5 | 16,9 | 360 | 560 |
| 1120762 | 2 X 2.5 | 7,5 | 48 | 101 |
| 1120763 | 3 G 2.5 | 8,1 | 72 | 132 |
| 1120764 | 4 G 2.5 | 8,9 | 96 | 163 |
| 1120765 | 5 G 2.5 | 10 | 120 | 200 |
| 1120766 | 7 G 2.5 | 11,1 | 168 | 267 |
| 1120767 | 12 G 2.5 | 14,8 | 288 | 445 |
| 1120768 | 18 G 2.5 | 17,8 | 432 | 648 |
| 1120769 | 25 G 2.5 | 20,8 | 600 | 890 |
| 1120770 | 4 G 4 | 10,8 | 154 | 249 |
| 1120771 | 5 G 4 | 12,1 | 192 | 305 |
| 1120772 | 4 G 6 | 13 | 230 | 365 |
| 1120773 | 5 G 6 | 14,5 | 288 | 447 |
