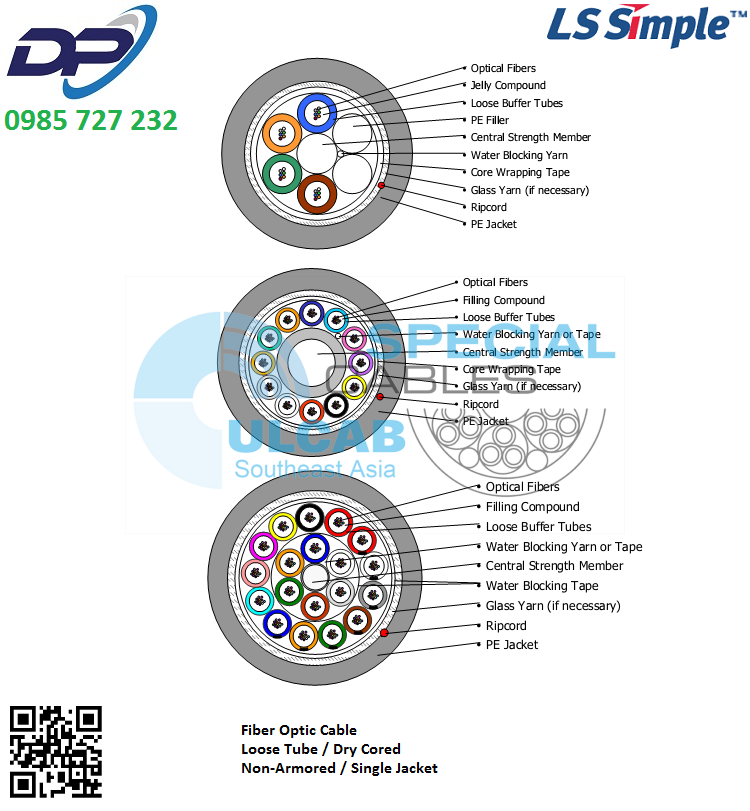

Cáp Quang LS-VINA ( LT-DJBGEXX/BRN SE4XXX(06T2.00) ) Outdoor/Indoor, Loose Tube, Singlemode Enhanced, 9/125um, 4 Cores, Single PE Jacket, Non Armor,Black
Fiber Optic Loose Tube Cable
Single/Double Jacketed Loose Tube Cable
Description
•Single Jacket Loose Tube cable is
a UV-stabilized, fully water blocked cable
for In/Outdoor duct applications.
•Loose tube design provides stable and highly
reliable transmission parameters for a variety of
voice, data, video and imaging applications.
•This lightweight cable offers durability and
flexibility required for many outside plant uses.
•RoHS (Restriction of the use of Certain Hazardous
Substances Directive) complied
Specification
•Telcordia GR-20-CORE
•IEC 60793, 60794
•IEC 60332-1,3
•IEEE 383
Construction
•Fiber – Single mode, multi mode(50um/62.5um) available
•Sequential meter or footage markings
•Outer jacket : Black UV and moisture-resistant
LSZH(Low Smoke Zero Halogen)
or PE(Polyethylene)
Color Identification
| 01 – Blue | 07 – Red |
| 02 – Orange | 08 – Black |
| 03 – Green | 09 – Yellow |
| 04 – Brown | 10 – Violet |
| 05 – Slate | 11 – Rose |
| 06 – White | 12 – Aqua |
Mechanical Characteristics
Storage Temperature : -40 to 70℃/ Operating Temperature : -40 to 70℃
| Fiber Count |
Nominal Outer Diameter |
Nominal Weight |
Maximum Tensile Load | Crush Load | Minimum Bend Radius | |||||||||||
| Short Term | Long Term | Short Term | Long Term | Loaded | Installed | |||||||||||
| [mm] | [Inch] | [kg/km] | [lb/kft] | [N] | [lb] | [N] | [lb] | [N/cm] | [lb/Inch] | [N/cm] | [lb/Inch] | [mm] | [Inch] | [mm] | [Inch] | |
| 6 | 10.5 | 0.41 | 86 | 58 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 21 | 8.27 | 10.5 | 4.13 |
| 12 | 10.5 | 0.41 | 86 | 58 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 21 | 8.27 | 10.5 | 4.13 |
| 24 | 10.5 | 0.41 | 86 | 58 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 21 | 8.27 | 10.5 | 4.13 |
| 36 | 10.5 | 0.41 | 86 | 58 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 21 | 8.27 | 10.5 | 4.13 |
| 48 | 11 | 0.43 | 92 | 62 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 22 | 8.66 | 11 | 4.33 |
| 72 | 11 | 0.43 | 92 | 62 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 22 | 8.66 | 11 | 4.33 |
| 96 | 12.1 | 0.48 | 113 | 76 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 24 | 9.53 | 12.1 | 4.76 |
| 120 | 13.6 | 0.54 | 139 | 93 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 27 | 10.71 | 13.6 | 5.35 |
| 144 | 15 | 0.59 | 167 | 112 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 30 | 11.81 | 15 | 5.9 |
| 228 | 15.8 | 0.62 | 178 | 120 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 32 | 12.44 | 15.8 | 6.22 |
| 276 | 17 | 0.67 | 212 | 142 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 34 | 13.39 | 17 | 6.69 |
| 300 | 17.7 | 0.7 | 228 | 153 | 2,700 | 125 | 1,000 | 46 | 110 | 63 | 55 | 31 | 35 | 13.94 | 17.7 | 6.97 |
Part Number:
LT-DJBGEXX/BRN SE4XXX(06T2.00)
Cáp quang dùng cả trong nhà/ngoài trời,loại Loose Tube,Đơn mốt nâng
cao,9/125um,4 lõi quang,vỏ dơn PE,không có giáp bảo vệ,Màu đen
(Chú ý: Nếu lắp ngoài trời phải luồn cáp trong ống)
Outdoor/Indoor, Loose Tube,Singlemode Enhanced, 9/125um, 4
Cores,Single PE Jacket, Non Armor,Black (Note: Using a conduit for
outdoor)
Xuất Xứ: Korea
