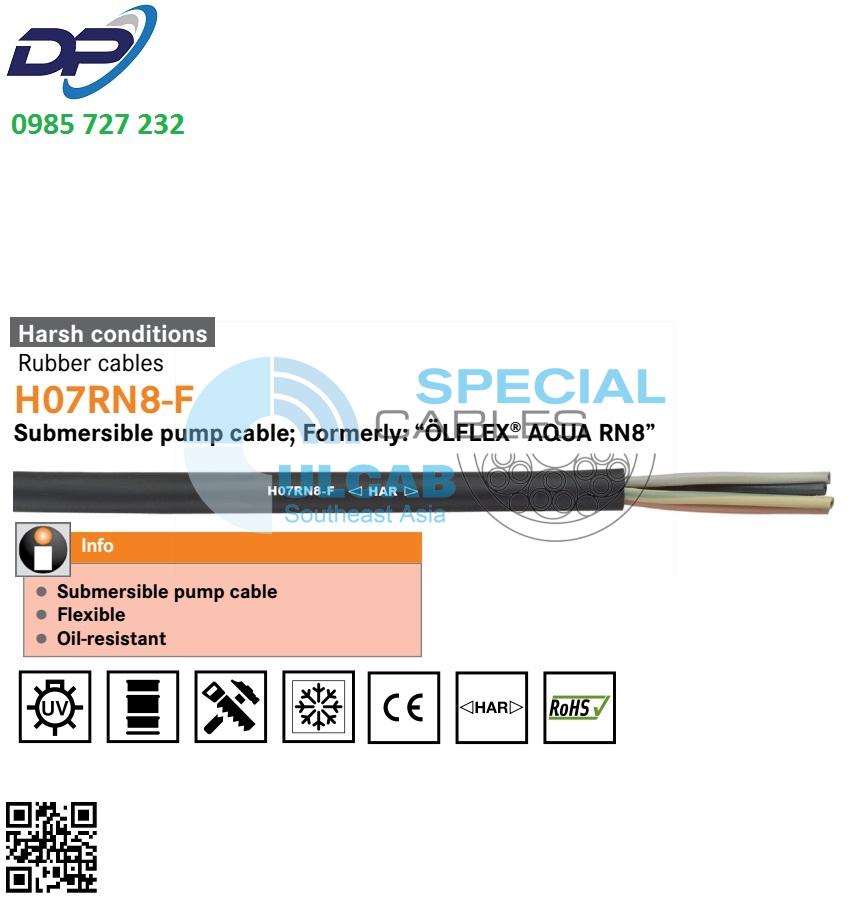

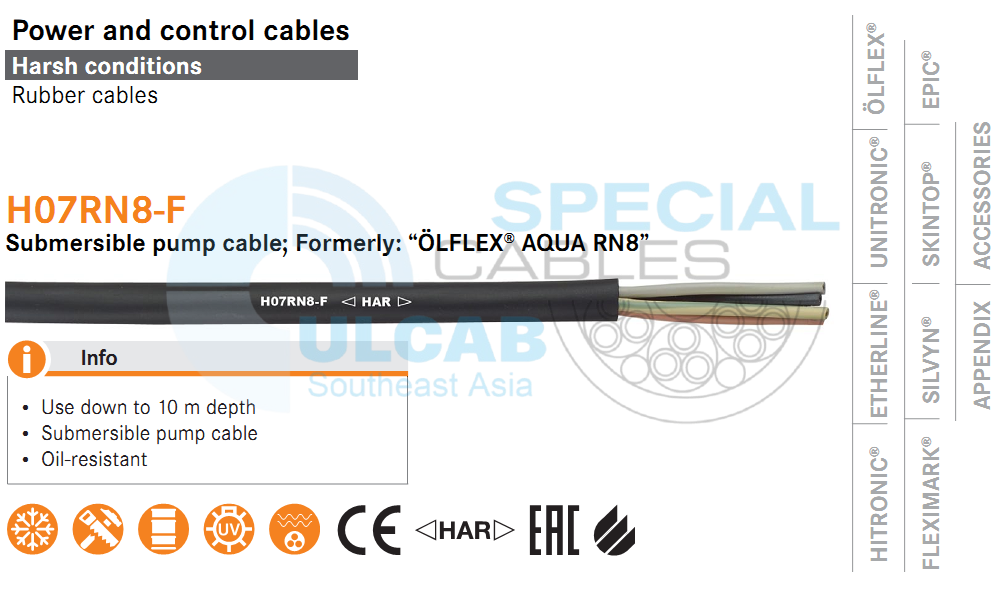

H07RN8-F
Cable for submersible pumps; formerly: “ÖLFLEX® AQUA RN8”
H07RN8-F, HAR, power and control cable, rubber, 450/750V, permanent submersion up to a depth of 10 m, submersible pumps, class 5, oil-resistant, flame-retardant
- Use down to 10 m water depth
- Cable for submersible pumps
- Oil-resistant
Benefits
- Use in water taking into consideration application standards, e.g. EN 50565-2
- According to EN 50565-2, underwater use prohibited in areas with shipping traffic, moving water or where there is a risk of dangerous, mechanical damage
- High stresses
- Type-compliant versions <HAR> certified with the “<HAR>” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area
Application range
- According to EN 50565-2: Dry and damp rooms, as well as outdoors and in industrial water
- For flexible connection of electrical equipment in industrial water
- For use with submersible pumps
- Submersion according AD8 standard down to 10 m depth
Product features
- Flame-retardant according to IEC 60332-1-2
- Oil-resistant according to EN 60811-404
- Flexible
Norm references / approvals
- <HAR> type certification according to EN 50525-2-21
Design
- Conductor made of bare copper wires
- Core insulation: Rubber compound, type EI 4
- Outer sheath: Rubber compound type EM 2
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage
- U0/U: 450/750 V
Test voltage
- 2500 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Current load capacity
- VDE 0298 part 4
- EN 50565-1/ VDE 0298-565-1
Temperature range
- Conductor: Fixed/flexible: -40/-25°C to +60°C
- Max. water temperature: +40°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1600600 | 1 X 4 | 7.2 – 9.0 | 38.4 | 100 |
| 1600601 | 1 X 6 | 7.9 – 9.8 | 57.6 | 120 |
| 1600602 | 1 X 10 | 9.5 – 11.9 | 96 | 200 |
| 1600604 | 1 X 25 | 12.7 – 15.8 | 240 | 400 |
| 1600606 | 3 G 1.5 | 9.2 – 11.9 | 43.2 | 170 |
| 1600609 | 4 G 1.5 | 10.2 – 13.1 | 57.6 | 205 |
| 1600620 | 7 G 1.5 | 14.0 – 17.5 | 100.8 | 385 |
| 1600607 | 3 G 2.5 | 10.9 – 14.0 | 72 | 210 |
| 1600610 | 4 G 2.5 | 12.1 – 15.5 | 96 | 260 |
| 1600621 | 7 G 2.5 | 16.5 – 20.0 | 168 | 520 |
| 1600611 | 4 G 4 | 14.0 – 17.9 | 153.6 | 356 |
| 1600612 | 4 G 6 | 15.7 – 20.0 | 230.40 | 475 |
| 1600613 | 4 G 10 | 20.9 – 26.5 | 384.00 | 837 |
| 1600614 | 4 G 16 | 23.8 – 30.1 | 614.40 | 1220 |
| 1600615 | 4 G 25 | 28.9 – 36.6 | 960.00 | 1770 |
| 1600616 | 4 G 35 | 32.5 – 41.1 | 1,344.00 | 2304 |
