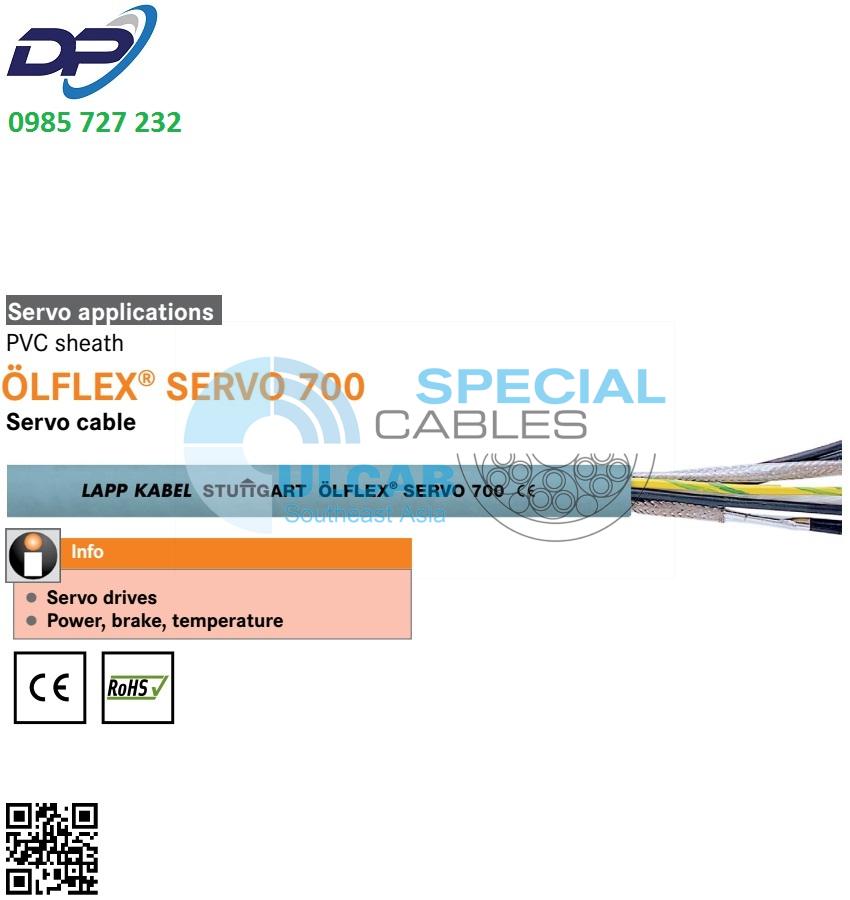

ÖLFLEX® SERVO 700
Servo cable with shielded control pairs and PVC sheath for fixed installation
ÖLFLEX® SERVO 700 – servo cable with control core pair(s) for brakes and temperature sensors, for fixed installation or occasional flexing.
- Power, brake, temperature
- Fits servo drive systems from various manufacturers
- Without overall shielding
Benefits
- One common cable for multiple circuits
Application range
- Connecting cable between servo controller and motor
- For fixed installation and applications with occasional movements
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range and with UV-protection
- In dry, damp or wet interiors with normal mechanical stress conditions
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Core based on VDE 0812/0250/0285
- Sheath based on VDE 0245/0285
Design
- Fine-wire, bare copper conductor
- Core insulation: PVC
- Control pairs 0.34 mm², colour-coded, from 0.5 mm², black with consecutive imprinted numbering
- Control pair with laminated aluminium foil and screening made of tin-plated copper wires
- The model with one control pair does not have laminated aluminium foil (FDF).
- Core and pairs are twisted together
- PVC sheath, grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Versions with 2 control pairs or 1 star quad:
Power cores: black with white numbers 1-3 and GN/YE protective conductor;
Control cores: black with white numbers 5-8 (numbering increases in line with cross-section); 0.34 mm² pairs: WH/BN/GN/YE - Versions with 1 control pair:
Power cores (4+7-core): black with white numbers 3-5 or 3-8 and GN/YE protective conductor;
Power cores (5-core): coloured according to VDE 0293-1
Control cores: black with white numbers 1-2
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- Power cores: U0/U 600/1000 V
- Control core pairs: 250 V/AC
Test voltage
- Power cores:
C/C: 4000 V; C/S: 2000V - Control cores:
C/C: 1500 V; C/S: 750 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +80°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®SERVO 700 | ||||
| 0036140 | 4 G 0,75 + 2 x (2 x 0,34) | 9.5 | 91.9 | 120 |
| 0036145 | 4 G 1,5 + 2 x (2 x 0,75) | 12.1 | 100.6 | 185 |
| 0036150 | 4 G 2,5 + (2 x 2 x 0,75) | 13.9 | 142.1 | 327 |
| 0036151 | 4 G 4 + (2 x 0,75 + 2 x 1,0) | 15.8 | 217.8 | 423 |
| 0036152 | 4 G 6 + (2 x 0,75 + 2 x 1,0) | 16.7 | 294.6 | 544 |
| 0036154 | 4 G 16 + (2 x 2 x 1,0) | 23.5 | 668.8 | 1168 |
| 0036025 | 4 G 1,5 + (2 x 0,75) | 11.7 | 98 | 149 |
| 0036001 | 5 G 1,5 + (2 x 0,75) | 12.7 | 110 | 160 |
| 0036015 | 7 G 1,5 + (2 x 0,75) | 12.4 | 144.8 | 210 |
| 0036026 | 4 G 2,5 + (2 x 0,75) | 13.1 | 138.6 | 227 |
| 0036020 | 7 G 2,5 + (2 x 0,75) | 15.2 | 215.7 | 334 |
■ Accessories
▯ EPIC®CIRCON LS1
▯ SKINTOP®ST-M
