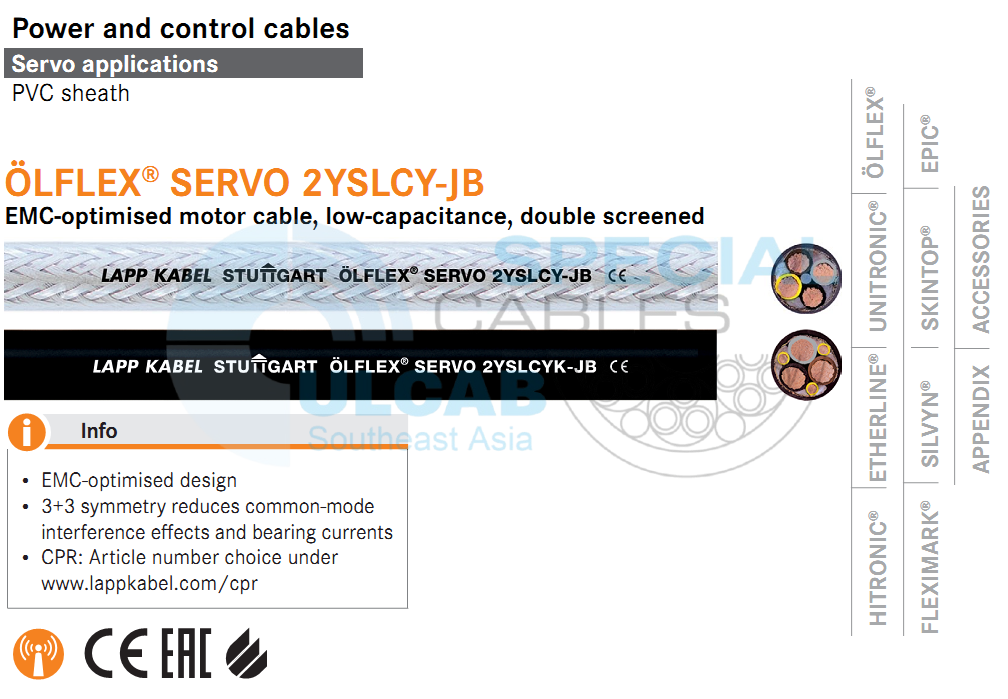

ÖLFLEX® SERVO 2YSLCY-JB
EMC-optimised motor cable, low-capacitance, double shielded
ÖLFLEX® SERVO 2YSLCY-JB – connection cable for electrical drives with high power and servo applications, EMC-optimised and double shielded.
- EMC-optimised design
- 4-core design in transparent and black
- 3+3 symmetry reduces common-mode interferences
Benefits
- EMC-compliant installation of speed-controlled electrical drives compliant with EN 61800-3
- High power transmission for large drives
- Longer cable connection possible between converter and drive due to low capacitance design
- Ground-symmetrical 3+3 version supports the reduction of bearing currents
- Versions with black outer sheath are suitable for outdoor use and direct burial
Application range
- Connecting cable between frequency converter and motor
- In dry, damp and wet interiors
- Paper industry
- Chemical industry
- Heavy industry
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0207 / 0250 / 0295
Design
- Fine-wire, bare copper conductor
- Core insulation: Polyethylene (PE)
- Cores twisted concentrically (protective conductor is symmetrically divided into three parts for the 3+3 version and is split between the power cores in terms of the interstice filler)
- Screening: Aluminium-laminated foil wrapping combined with tin-plated copper braiding
- 4-core version: Optional transparent or black PVC outer sheath
- 3+3 core version: PVC outer sheath, black – flexible at low temperatures
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Coloured according to HD 308 S2 VDE 0293-308
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 600/1000 V
Test voltage
- Core/Core: 4 kV
- Core/Shield: 4 kV
Protective conductor
- G = with GN-YE protective conductor
X = without protective conductor - Protective conductor of 3+3 version is split between the power cores in terms of the interstice filler
Temperature range
- Flexing: -5°C to +70°C
3+3 core version: -15°C to +70°C - Fixed installation: -40°C to +70°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®SERVO 2YSLCY-JB | ||||
| 0036425 | 4 G 1.5 | 11.4 | 95 | 230 |
| 0036426 | 4 G 2.5 | 12.4 | 150 | 300 |
| 0036427 | 4 G 4 | 15.6 | 235 | 485 |
| 0036428 | 4 G 6 | 17 | 320 | 630 |
| 0036429 | 4 G 10 | 19.6 | 533 | 860 |
| 0036430 | 4 G 16 | 22.1 | 789 | 1290 |
| 0036431 | 4 G 25 | 26.3 | 1,236.00 | 1860 |
| 0036432 | 4 G 35 | 29.5 | 1,662.00 | 2610 |
| 0036433 | 4 G 50 | 35.8 | 2,345.00 | 2950 |
| 0036434 | 4 G 70 | 40.3 | 3,196.00 | 3950 |
| 0036435 | 4 G 95 | 46.5 | 4,316.00 | 5300 |
| 0036436 | 4 G 120 | 53.2 | 5,435.00 | 6600 |
| 0036437 | 4 G 150 | 57.3 | 6,394.00 | 7043 |
| 0036438 | 4 G 185 | 62.3 | 7,639.00 | 8384 |
| 0036439 | 3 X 1,5 + 3 G 0,25 | 11.4 | 88 | 140 |
| 0036440 | 3 X 2,5 + 3 G 0,5 | 12.2 | 144 | 220 |
| 0036441 | 3 X 4 + 3 G 0,75 | 14.4 | 224 | 323 |
| 0036442 | 3 X 6 + 3 G 1,0 | 15.7 | 276 | 420 |
| 0036443 | 3 X 10 + 3 G 1,5 | 18 | 491 | 615 |
| 0036444 | 3 X 16 + 3 G 2,5 | 20.2 | 723 | 819 |
| 0036445 | 3 X 25 + 3 G 4 | 23.8 | 1,136.00 | 1325 |
| 0036446 | 3 X 35 + 3 G 6 | 26.9 | 1,535.00 | 1718 |
| 0036447 | 3 X 50 + 3 G 10 | 32.6 | 2,156.00 | 2399 |
| 0036448 | 3 X 70 + 3 G 10 | 36.4 | 2,871.00 | 3056 |
| 0036449 | 3 X 95 + 3 G 16 | 42 | 3,953.00 | 4162 |
| 0036450 | 3 X 120 + 3 G 16 | 47.8 | 4,836.00 | 5074 |
| 0036451 | 3 X 150 + 3 G 25 | 51.6 | 5,412.00 | 6128 |
| 0036479 | 3 X 185 + 3 G 35 | 56.5 | 7,041.00 | 7500 |
| 0036453 | 3 X 240 + 3 G 50 | 65.1 | 8,986.00 | 9770 |
