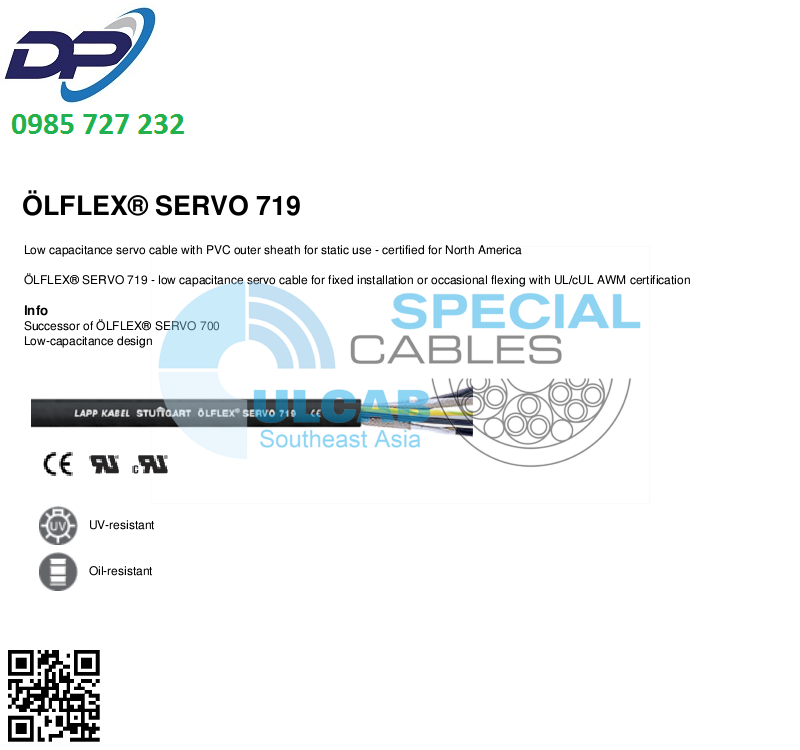

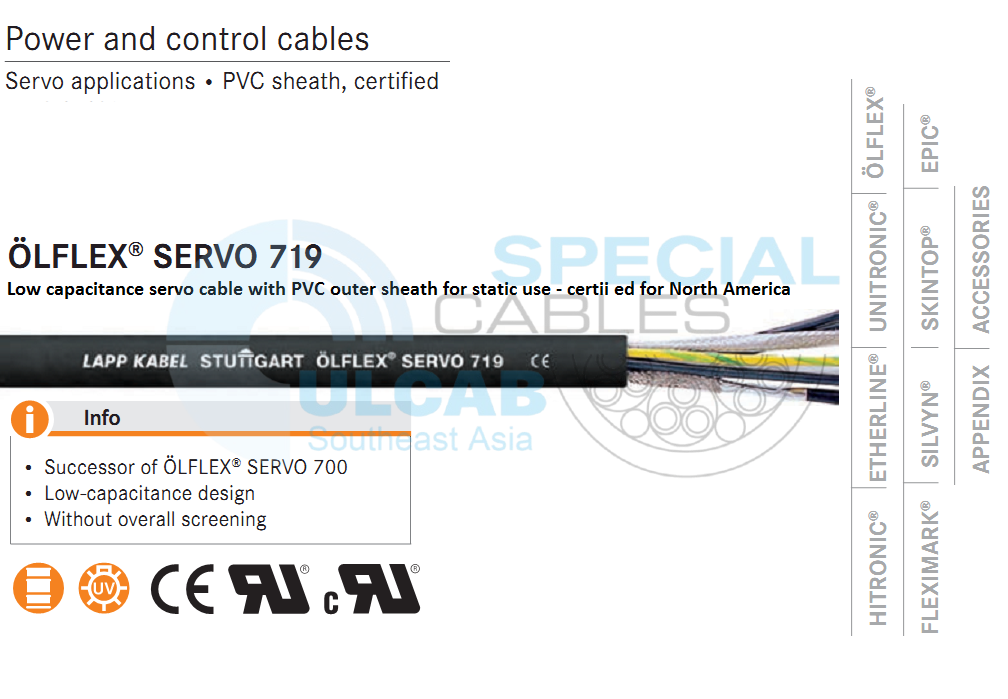

ÖLFLEX® SERVO 719
Low capacitance servo cable with PVC outer sheath for static use – certified for North America
ÖLFLEX® SERVO 719 – low capacitance servo cable for fixed installation or occasional flexing with UL/cUL AWM certification
- Successor of ÖLFLEX® SERVO 700
- Low-capacitance design
Benefits
- One common cable for multiple circuits
- Longer installation lengths thanks to low capacitance cable design
- Multi-standard certification reduces part varieties and saves costs
- Space and weight-saving installation due to small cable diameters
Application range
- Connecting cable between servo controller and motor
- For fixed installation and applications with occasional movements
- Plant construction
- Industrial machinery and machine tools
- Printing machines
Product features
- Low capacitance
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Oil-resistant
Norm references / approvals
- USA: UL AWM Style 2570
Canada: cUL AWM Style I/II A/B FT1 - UL File No. E63634
Design
- Fine-wire, bare copper conductor
- Core insulation: Polypropylene (PP)
- Individual design depending on the item: Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths
- PVC sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
- Single-paired versions: black; white
Double-paired versions: black with white numbers 5; 6; 7; 8
0.34 mm² pairs: WH/BN/GN/YE
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- Power cores and control cores:
IEC U0/U: 600/1000 V - UL & CSA: 1000 V
Test voltage
- Core/Core: 4 kV
- Core/Shield: 4 kV
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Occasional flexing:
-5°C to +70°C (UL: +80°C)
Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1020060 | 4 G 1,5 + (2 x 0,75) | 9.7 | 83.3 | 177 |
| 1020065 | 4 G 1,5 + (2 x 1,5) | 10.8 | 108.3 | 214 |
| 1020061 | 5 G 1,5 + (2 x 0,75) | 10.6 | 97.7 | 203 |
| 1020062 | 7 G 1,5 + (2 x 0,75) | 11.5 | 126.5 | 241 |
| 1020063 | 4 G 2,5 + (2 x 0,75) | 11.1 | 121.7 | 238 |
| 1020066 | 4 G 2,5 + (2 x 1,5) | 12.2 | 146.7 | 276 |
| 1020064 | 7 G 2,5 + (2 x 0,75) | 12.7 | 193.70 | 325 |
| 1020067 | 4 G 4 + (2 x 1,5) | 13.9 | 204.30 | 360 |
| 1020068 | 4 G 6 + (2 x 1,5) | 16.1 | 281.10 | 478 |
| 1020069 | 4 G 10 + (2 x 1,5) | 18.2 | 434.70 | 654 |
| 1020071 | 4 G 0,75 + 2 x (2 x 0,34) | 9 | 62.10 | 121 |
| 1020072 | 4 G 1,5 + 2 x (2 x 0,75) | 11.6 | 111.60 | 203 |
| 1020073 | 4 G 2,5 + 2 x (2 x 1,0) | 13.6 | 159.70 | 286 |
| 1020074 | 4 G 4 + 2 x (2 x 1,0) | 15.3 | 217.30 | 377 |
| 1020075 | 4 G 4 + (2 x 1,0) + (2 x 1,5) | 15.5 | 237.6 | 396 |
| 1020076 | 4 G 6 + (2 x 1,0) + (2 x 1,5) | 17.4 | 314.4 | 512 |
