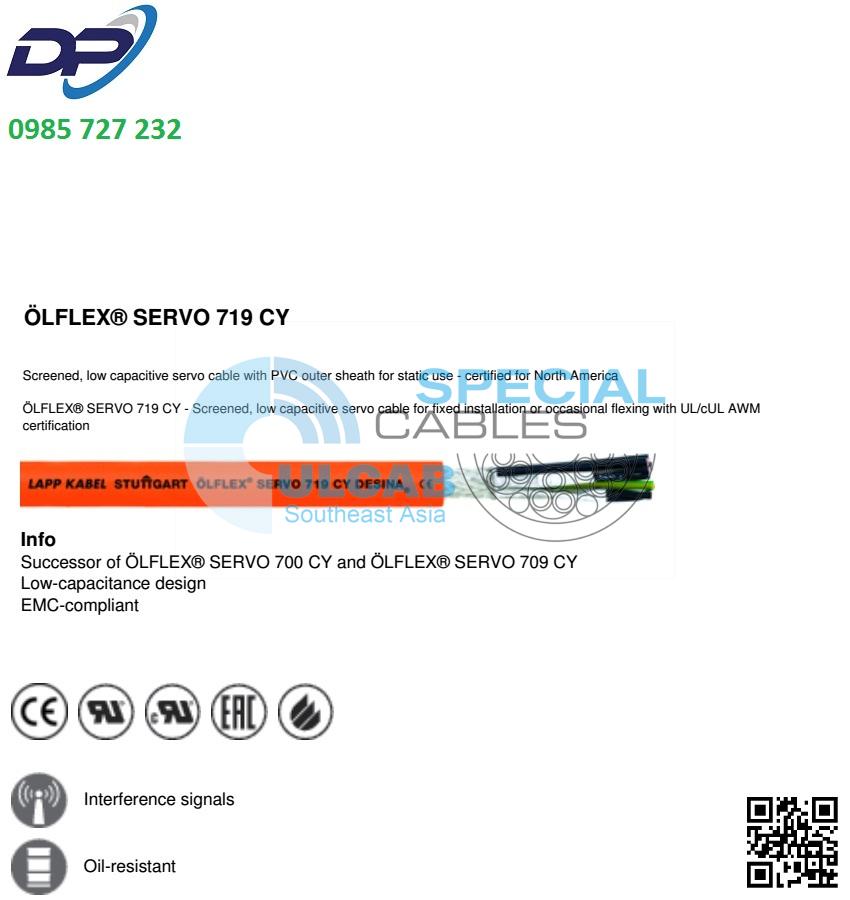

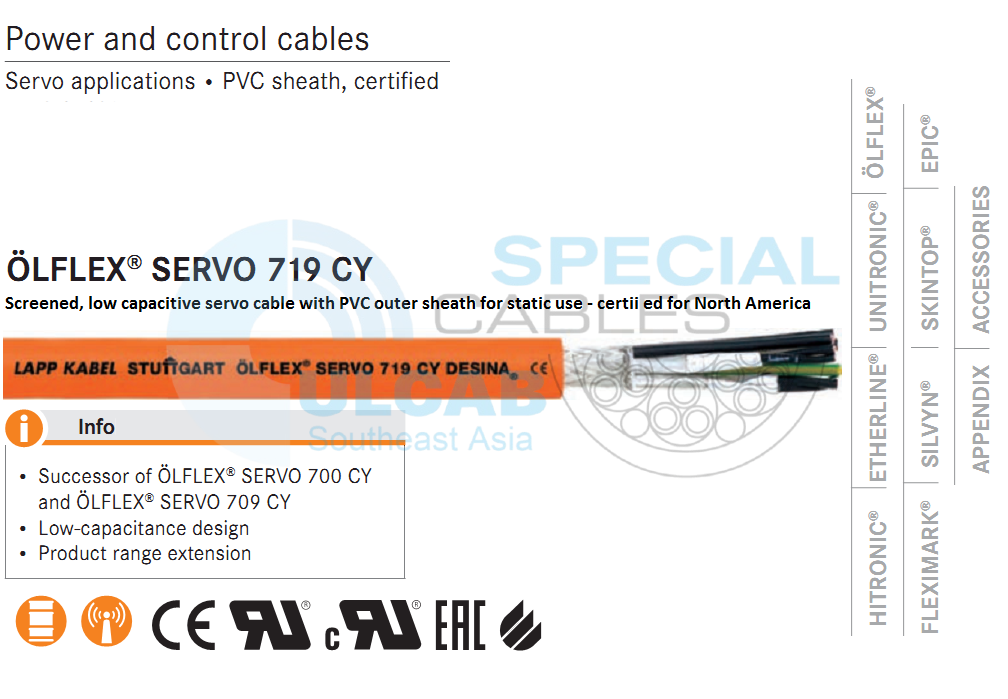

ÖLFLEX® SERVO 719 CY

Shielded, low capacitive servo cable with PVC sheath for fixed installation – certified for North America

ÖLFLEX® SERVO 719 CY – shielded servo cable for fixed installation or occasional flexing with UL/cUL AWM certification.

  • Successor of ÖLFLEX® SERVO 700 CY and ÖLFLEX® SERVO 709 CY
  • Low-capacitance design
  • EMC-compliant

Interference signals Oil-resistant

Benefits

  • Suitable for use with servomotor systems from leading drive manufacturers
  • Longer installation lengths thanks to low capacitance cable design
  • Multi-standard certification reduces part varieties and saves costs
  • Space and weight-saving installation due to small cable diameters
  • Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference

Application range

  • Connecting cable between servo controller and motor
  • For fixed installation and applications with occasional movements
  • Plant construction
  • Industrial machinery and machine tools
  • Printing machines

Product features

  • Low capacitance
  • Flame retardance:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Oil-resistant
  • EMC-compliant

Norm references / approvals

  • USA: UL AWM Style 2570
    Canada: cUL AWM Style I/II A/B FT1
  • UL File No. E63634

Design

  • Fine-wire, bare copper conductor
  • Core insulation: Polypropylene (PP)
  • Individual design depending on the item:
    Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths;
    Power cores with control core triplet twisted together in short lay lengths
  • Tin-plated copper braiding
  • PVC sheath, orange (RAL 2003)

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Single-paired versions: individual design depending on the item black; white or brown; white
    Double-paired versions: black with white numbers 5; 6; 7; 8
    0.34 mm² pairs: WH/BN/GN/YE
    Triplet: black with white numbers 1; 2; 3

Conductor design

  • Fine wire according to VDE 0295 class 5 / IEC 60228 class 5

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • Power cores and control cores:
    IEC U0/U: 600/1000 V
  • UL & CSA: 1000 V

Test voltage

  • Core/Core: 4 kV
  • Core/Shield: 4 kV

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Occasional flexing:
    -5°C to +70°C (UL: +80°C)
    Fixed installation: -40°C to +80°C
Article number Number of cores and mm² per conductor Outer diameter (mm) approx. Copper index (kg/km) Weight (kg/km)
ÖLFLEX®SERVO 719 CY
1020010 4 G 1,5 8.4 83 130
1020011 4 G 2,5 9.9 125 190
1020012 4 G 4 11.7 191 273
1020013 4 G 6 13.7 290 394
1020014 4 G 10 16.7 452 581
1020015 4 G 16 20.1 721 884
1020016 4 G 25 24.3 1,100.00 1348
1020017 4 G 35 27.7 1,548.00 1840
1020018 4 G 50 33.7 2,151.00 2645
1020040 4 G 0,75 + (2 x 0,5) 8.9 78.00 159
1020041 4 G 1 + (2 x 0,5) 9.3 88.00 147
1020044 4 G 1 + (2 x 1,0) 10.2 107.00 204
1020042 4 G 1,5 + (2 x 0,5) 10.3 111.00 180
1020045 4 G 1,5 + (2 x 1,0) 10.8 130.00 230
1020053 4 G 1,5 + (3 x 1,0) 11.5 145 225
1020019 4 G 1,5 + (2 x 1,5) 11.5 146 242
1020043 4 G 2,5 + (2 x 0,5) 11.7 158 247
1020046 4 G 2,5 + (2 x 1,0) 12.1 173 293
1020054 4 G 2,5 + (3 x 1,0) 12.9 188 290
1020020 4 G 2,5 + (2 x 1,5) 12.9 189 306
1020047 4 G 4 + (2 x 1,0) 14.3 250.00 373
1020055 4 G 4 + (3 x 1,0) 14.8 270.00 402
1020021 4 G 4 + (2 x 1,5) 15 271.00 420
1020048 4 G 6 + (2 x 1,0) 16 334.00 485
1020022 4 G 6 + (2 x 1,5) 17 351.00 529
1020056 4 G 6 + (3 x 1,5) 17 370.00 537
1020049 4 G 10 + (2 x 1,0) 18.8 526.00 712
1020023 4 G 10 + (2 x 1,5) 19.5 540.00 752
1020057 4 G 10 + (3 x 1,5) 19.5 559.00 758
1020050 4 G 16 + (2 x 1,0) 22.3 772 991
1020058 4 G 16 + (3 x 1,5) 23 805 1151
1020024 4 G 0,75 + 2 x (2 x 0,34) 9.7 99 163
1020035 4 G 1 + 2 x (2 x 0,75) 11.3 126.4 207
1020025 4 G 1,5 + 2 x (2 x 0,75) 12.3 150 245
1020026 4 G 2,5 + 2 x (2 x 1,0) 14.7 223 357
1020027 4 G 4 + 2 x (2 x 1,0) 16.4 288 452
1020028 4 G 4 + (2 x 1,0) + (2 x 1,5) 16.6 307 469
1020029 4 G 6 + (2 x 1,0) + (2 x 1,5) 18.5 421 617
1020030 4 G 10 + (2 x 1,0) + (2 x 1,5) 22.1 588 852
1020031 4 G 16 + 2 x (2 x 1,5) 25 876 1162
1020032 4 G 25 + 2 x (2 x 1,5) 28.7 1227 1590
1020033 4 G 35 + 2 x (2 x 1,5) 30.6 1652 2023
1020034 4 G 50 + 2 x (2 x 2,5) 37 2264 2876
