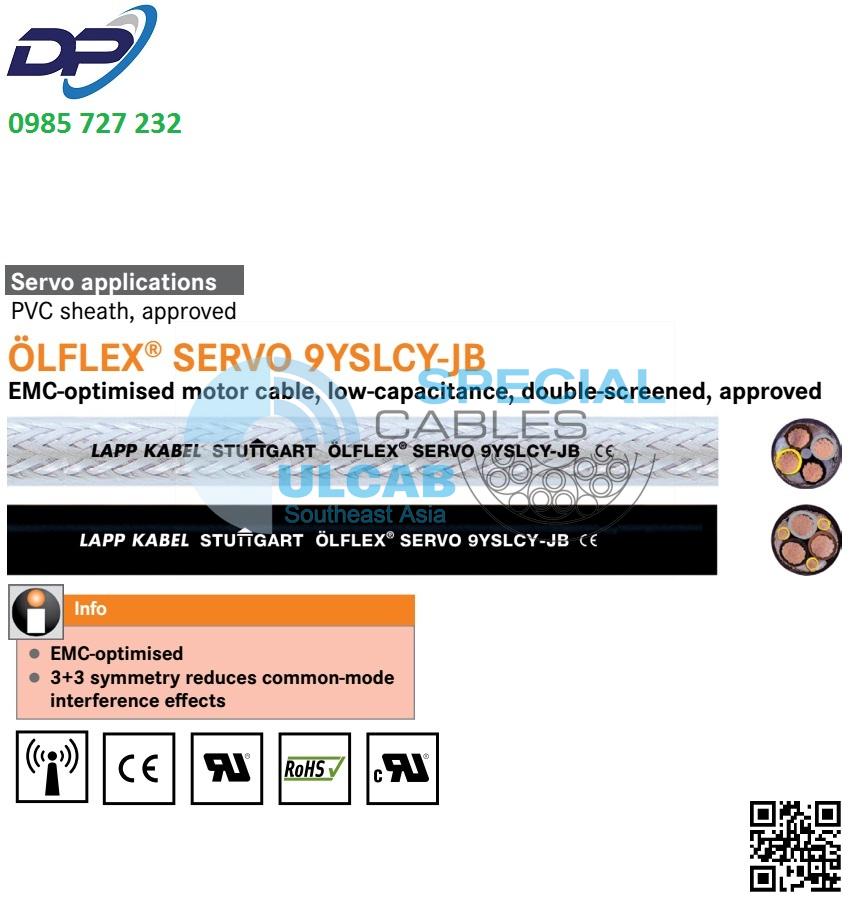

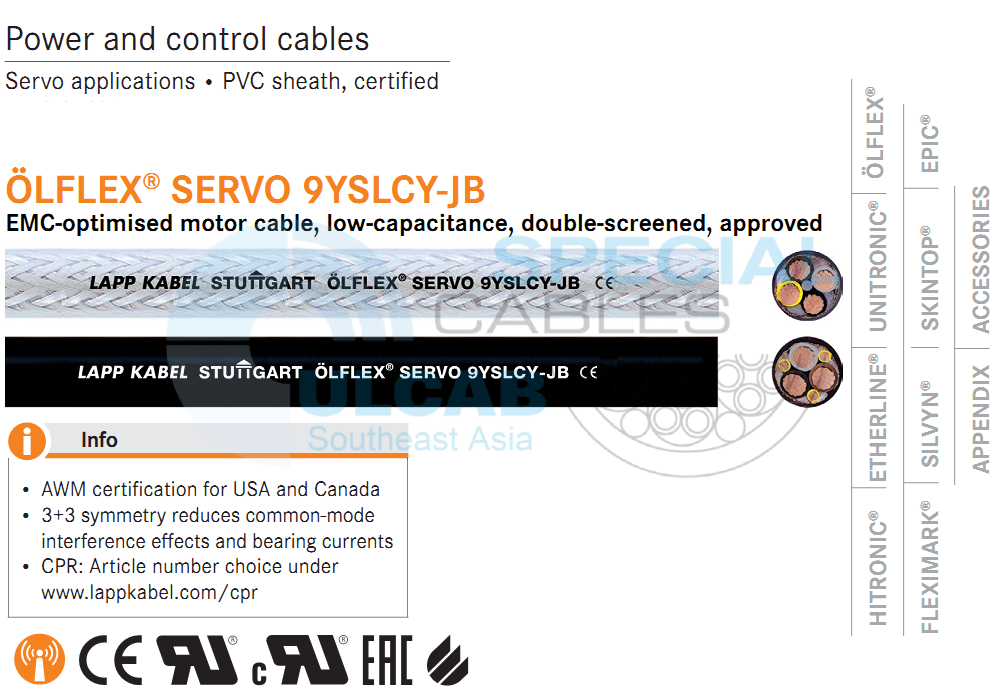

ÖLFLEX® SERVO 9YSLCY-JB
EMC-optimised motor cable, low-capacitance, double shielded, certified
ÖLFLEX® SERVO 9YSLCY-JB – connection cable for electrical drives with high power and servo applications, with UL/cUL AWM certification, double shielded.
- EMC-optimised design
- 3+3 symmetry reduces common-mode interferences
- AWM certification for USA and Canada
Benefits
- EMC-compliant installation of speed-controlled electrical drives compliant with EN 61800-3
- High power transmission for large drives
- Longer cable connection possible between converter and drive due to low capacitance design
- Ground-symmetrical 3+3 version supports the reduction of bearing currents
- 9YSLCY design, black: Also for outdoor applications or buried underground, but not for USA or Canada
Application range
- Connecting cable between frequency converter and motor
- In dry, damp and wet interiors
- Paper industry
- Chemical industry
- Heavy industry
Product features
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
- EN/VDE +90°C PP insulation
Norm references / approvals
- USA: AWM Style 2570 or 20886, 1kV 80°C VW-1
Canada: AWM I/II A/B 1kV 80°C FT1 - UL File No. E63634
- Based on VDE 0276, 0250, 0207
Design
- Fine-wire, bare copper conductor
- Core insulation: Polypropylene (PP)
- Cores twisted concentrically (protective conductor is symmetrically divided into three parts for the 3+3 version and is split between the power cores in terms of the interstice filler)
- Screening: Aluminium-laminated foil wrapping combined with tin-plated copper braiding
- 4-core design: transparent PVC outer sheath
- 3+3 core version: PVC outer sheath, black
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Coloured according to HD 308 S2 VDE 0293-308
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- IEC U0/U: 600/1000 V
- UL & CSA: 1000 V
Test voltage
- 4000 V
Protective conductor
- Protective conductor of 3+3 version is split between the power cores in terms of the interstice filler
Temperature range
- Flexing:
IEC: transparent -5°C to +80°C
IEC: black -5°C to +90 °C
UL/CSA: -5°C to +80°C - Fixed installation:
IEC: transparent -40°C to +80°C
IEC: black -40°C to +90 °C
UL/CSA: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®SERVO 9YSLCY-JB | ||||
| 0037000 | 4 G 1,5 | 10.5 | 87 | 230 |
| 0037001 | 4 G 2,5 | 11.8 | 133 | 300 |
| 0037002 | 4 G 4 | 13.3 | 213 | 485 |
| 0037003 | 4 G 6 | 14.9 | 298 | 630 |
| 0037004 | 4 G 10 | 17.7 | 460 | 860 |
| 0037005 | 4 G 16 | 21.5 | 707 | 1290 |
| 0037006 | 4 G 25 | 26.3 | 1,100.00 | 1860 |
| 0037007 | 4 G 35 | 29.7 | 1,542.00 | 2610 |
| 0037008 | 4 G 50 | 34.1 | 2,206.00 | 2950 |
| 0037009 | 4 G 70 | 40.9 | 3,002.00 | 3950 |
| 0037010 | 4 G 95 | 45.4 | 4,004.00 | 5300 |
| 0037011 | 4 G 120 | 49.8 | 5,108.00 | 6600 |
| 0037012 | 4 G 150 | 56.1 | 6,225.00 | 7043 |
| 0037013 | 4 G 185 | 61.4 | 7,568.00 | 8384 |
| 0037014 | 4 G 240 | 67.9 | 9,940.00 | 12150 |
| 0037015 | 3 X 1,5 + 3 G 0,25 | 11.4 | 88 | 140 |
| 0037016 | 3 X 2,5 + 3 G 0,5 | 12.9 | 130 | 220 |
| 0037017 | 3 X 4 + 3 G 0,75 | 13.6 | 224 | 323 |
| 0037018 | 3 X 6 + 3 G 1,0 | 15.2 | 276 | 420 |
| 0037019 | 3 X 10 + 3 G 1,5 | 17.4 | 5 11.0 | 615 |
| 0037020 | 3 X 16 + 3 G 2,5 | 20 | 751.00 | 819 |
| 0037021 | 3 X 25 + 3 G 4 | 24.3 | 1,204.00 | 1325 |
| 0037022 | 3 X 35 + 3 G 6 | 27.5 | 1,535.00 | 1718 |
| 0037023 | 3 X 50 + 3 G 10 | 31.1 | 2,156.00 | 2399 |
| 0037024 | 3 X 70 + 3 G 10 | 37. 1 | 2,980.00 | 3056 |
| 0037025 | 3 X 95 + 3 G 16 | 40 | 3,953.00 | 4162 |
| 0037026 | 3 X 120 + 3 G 16 | 42.6 | 4,836.00 | 5074 |
| 0037027 | 3 X 150 + 3 G 25 | 50 | 5,412.00 | 6128 |
| 0037028 | 3 X 185 + 3 G 35 | 55.6 | 7,077.00 | 7820 |
