Cables in accordance with SIEMENS® standard 6FX 5008-

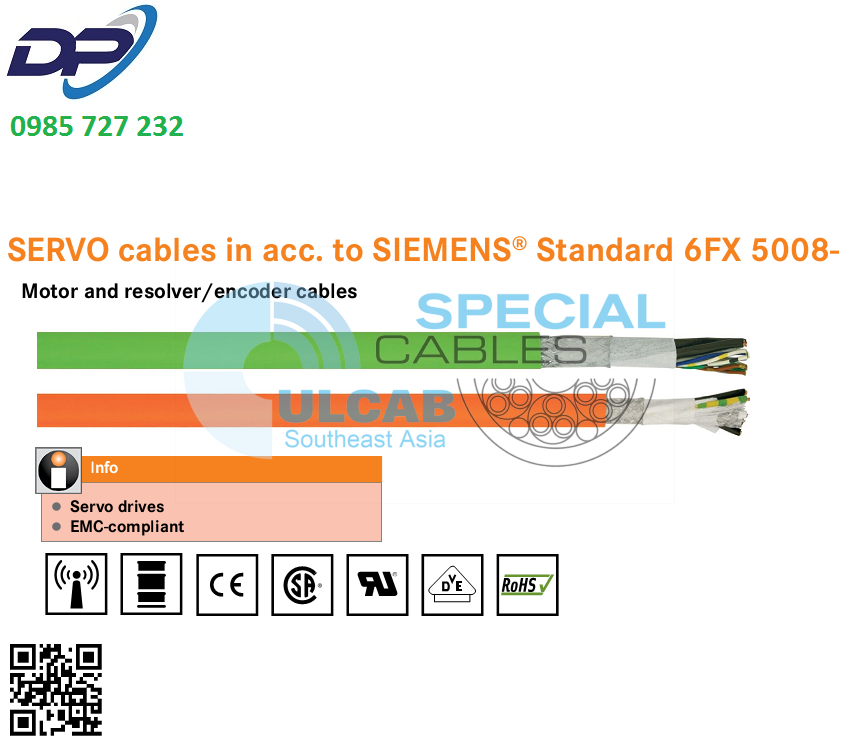

Motor connection and rotary encoder cables – certified
Cables according to SIEMENS® standard 6FX 5008 – shielded motor connection and rotary encoder cables for fixed installation with UL/CSA AWM and VDE.
- Servo drives
- EMC-compliant
Benefits
- Motor & servo motor cables up to and including 6 mm² low capacitance thanks to PP insulation
- Multi-standard certification reduces part varieties and saves costs
Application range
- Connecting cable between servo controller and motor
- For fixed installation and applications with occasional movements
- Plant construction
- Industrial machinery and machine tools
- Printing machines
Product features
- Oil-resistant
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
- EMC-compliant
Norm references / approvals
- Power cables:
VDE-registered
UL/CSA AWM style 2570 - Signal cables:
UL/CSA AWM style 2502 - UL File No. E63634
Design
- Design according to SIEMENS® standard 6FX5008.
- Core insulation: Up to and including 6 mm² PP; 10 mm² and larger: PVC
- Core and pairs are twisted together
- Tin-plated copper braiding
- Sheath made of special PVC compound
- Signal cables: green (RAL 6018)
- Motor and servomotor cables: orange (RAL 2003)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- For fixed installation: 5 x outer diameter
- For flexible use:
15 x outer diameter
Nominal voltage
- Signal cables:
30 V AC (IEC)
30 V AC/DC (UL/CSA) - Power cables:
– Power cores:
U0/U 600/1000 V (IEC)
1000 V (UL/CSA)
– Control cores:
30 V AC (IEC)
1000 V (UL/CSA)
Test voltage
- Power cables:
Power cores: 4000 V
Control cores: 2000 V - Signal cables: 500 V
Temperature range
- Fixed installation: -20°C to +80°C
- Flexing: from -0°C to +60°C
| Article number | Number of cores and mm² per conductor | Reference article no. | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Signal cables | |||||
| 25724 | 4 x 2 x 0,38 + 4 x 0,5 | 6FX5008-1BD21 | 9 | 76.4 | 120 |
| 25725 | 3 x (2 x 0,14) + 4 x 0,14 + 2 x 0,5 | 6FX5008-1BD41 | 8.9 | 63 | 100 |
| 25726 | 3 x (2 x 0,14) + 4 x 0,14 + 2 x 0,5 + 4 x 0,23 | 6FX5008-1BD51 | 9.5 | 69 | 139 |
| Motor cables | |||||
| 257001 | 4 G1.5 | 6FX5008-1BB11 LC | 8 | 88 | 131 |
| 257011 | 4 G2.5 | 6FX5008-1BB21 LC | 9.6 | 132 | 219 |
| 257021 | 4 G4 | 6FX5008-1BB31 LC | 11 | 195.00 | 312 |
| 257031 | 4 G6 | 6FX5008-1BB41 LC | 13.1 | 280.00 | 380 |
| 25704 | 4 G10 | 6FX5008-1BB51 | 19.3 | 445.00 | 620 |
| 25705 | 4 G16 | 6FX5008-1BB61 | 23.3 | 715.00 | 1060 |
| 25706 | 4 G25 | 6FX5008-1BB25 | 26.9 | 1,110.00 | 1640 |
| 25707 | 4 G35 | 6FX5008-1BB35 | 30.3 | 1,540.00 | 2310 |
| 25708 | 4 G50 | 6FX5008-1BB50 | 36.5 | 2,160.00 | 3240 |
| Servo cables | |||||
| 257151 | 4 G 1,5 + (2 x 1,5) | 6FX5008-1BA11 LC | 10.4 | 150.00 | 248 |
| 257161 | 4 G 2,5 + (2 x 1,5) | 6FX5008-1BA21 LC | 12 | 194 | 310 |
| 257171 | 4 G 4 + (2 x 1,5) | 6FX5008-1BA31 LC | 13.6 | 272 | 445 |
| 257181 | 4 G 6 + (2 x 1,5) | 6FX5008-1BA41 LC | 15.6 | 351 | 554 |
| 25719 | 4 G 10 + (2 x 1,5) | 6FX5008-1BA51 | 21 | 536 | 806 |
