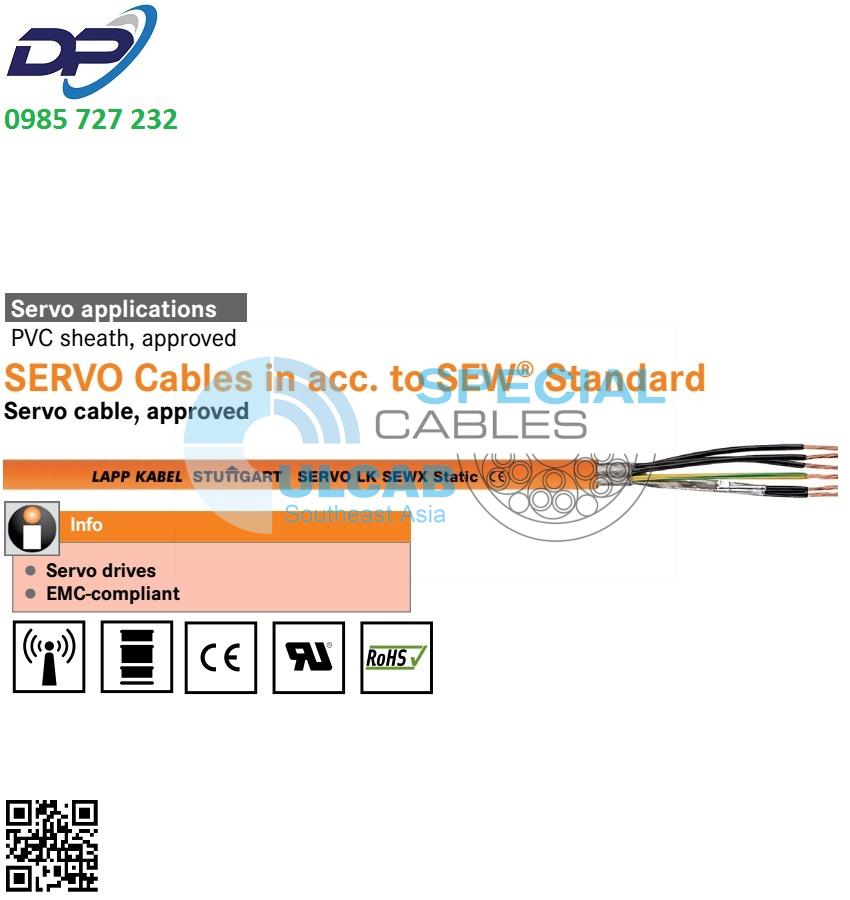

Cables in accordance with SEW® standard
Shielded, low capacitive servo cable with PVC sheath for fixed installation – certified for North America
Cables in accordance with SEW® standard – shielded servo cable for fixed installation or occasional flexing with UL AWM certification.
- Servo drives
- EMC-compliant
Benefits
- Multi-standard certification reduces part varieties and saves costs
- Longer installation lengths thanks to low capacitance cable design
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- Specially designed to connect to SEW servomotors
- Connecting cable between servo controller and motor
- For fixed installation and applications with occasional movements
- Industrial machinery and machine tools
- Plant construction
Product features
- Oil-resistant
- Flame-retardant according to IEC 60332-1-2,
UL VW-1 & CSA FT 1
Norm references / approvals
- Based on VDE 0250 / 0285
- UL AWM Style 2570
- UL File No. E63634
Design
- Fine-wire, bare copper conductor
- Core insulation made of TPE
- Control core triplet with laminated aluminium film and a wrapping of tin-plated copper wires
- Cores twisted in short lay lengths
- Tin-plated copper braiding
- PVC sheath, orange (RAL 2003)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Power: black cores with U, VV, WWW printing and 1 core gnye
- Control cores: black cores with numbers 1, 2 and 3
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- Power cores: IEC 750 V, UL 600 V
- Control cores: IEC 350 V, UL 600 V
Test voltage
- 2000 V
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Flexing: -10°C to +80°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Servo cables | ||||
| 0038060 | 4 G 1,5 + (3 x 1,0) | 11.8 | 151 | 300 |
| 0038061 | 4 G 2,5 + (3 x 1,0) | 13.4 | 212.9 | 370 |
| 0038062 | 4 G 4 + (3 x 1,0) | 15 | 281.8 | 476 |
| 0038063 | 4 G 6 + (3 x 1,5) | 17 | 392.8 | 625 |
| 0038064 | 4 G 10 + (3 x 1,5) | 20 | 625.1 | 1024 |
