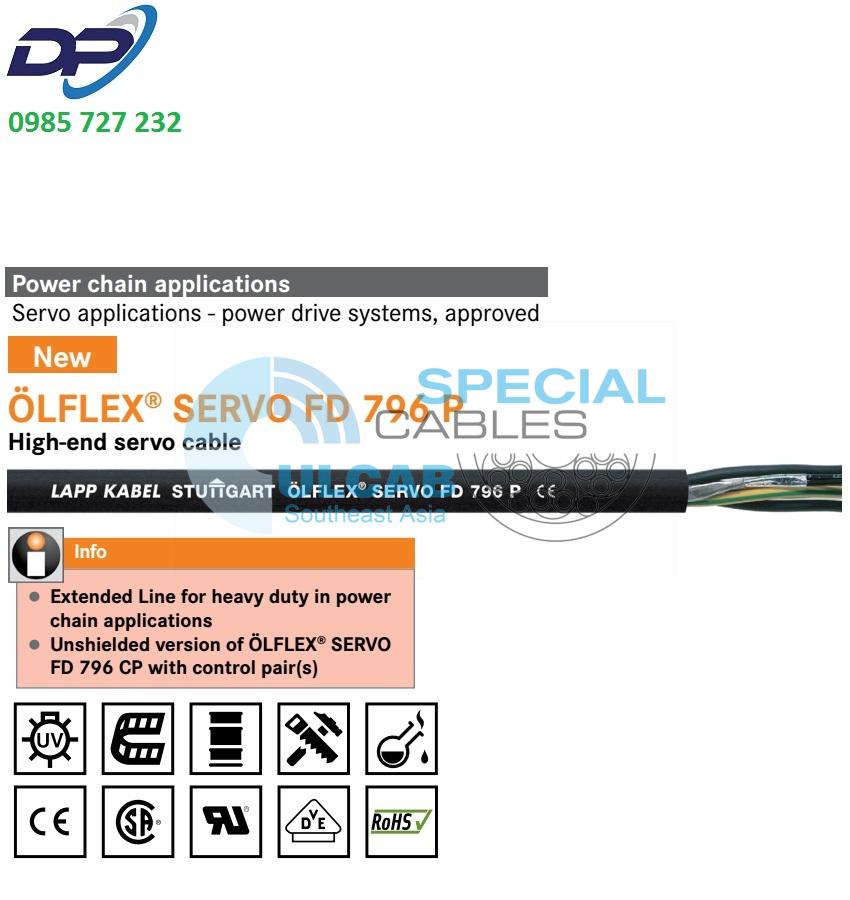

ÖLFLEX® SERVO FD 796 P
Servo cable with PUR sheath for highly dynamic power chain application – certified for North America
ÖLFLEX® SERVO FD 796 P – servo cable for highly dynamic power chain applications in harsh conditions with UL/CSA AWM and VDE.
- Extended line for high loads in power chains
- AWM certification for USA and Canada
- VDE-tested characteristics
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Longer cable connection possible between converter and drive due to low capacitance design
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- Multi-standard certification reduces part varieties and saves costs
Application range
- Connecting cable between servo controller and motor
- In power chains or mobile machine parts
- For use in assembly & automatic placement machines
- Particularly in wet areas of machine tools and transfer lines
- For indoor and outdoor use
Product features
- Dynamic drag chain performance:
Acceleration up to 50 m/s².
Travel speeds up to 5 m/s.
Travel distances up to 100 m. - Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Halogen-free materials
- Abrasion-resistant and notch-resistant
- Oil-resistant
Norm references / approvals
- VDE – reg – no. 8591 (≥ 4G1,5)
UL AWM Style 20234
cULus AWM I/II A/B, 1000V 80° FT1
CSA AWM I/II A, 1000V 80° FT1 - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation: Polypropylene (PP)
- Individual design depending on the item: Power cores with one or with two control pair(s), twisted in short lay lengths
- Fleece wrapping
- Polyurethane sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
- Single-paired versions: black; white
Double-paired versions: black with white numbers 5; 6; 7; 8
0.34 mm² pairs: WH/BN/GN/YE
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- IEC U0/U: 600/1000 V
- UL & CSA: 1000 V
Test voltage
- Core/Core: 4 kV
- Core/Shield: 2 kV
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Flexing:
-40°C to +90°C (UL/CSA: +80°C) - Fixed installation:
-50°C to +90°C (UL/CSA: +80°C)
Alternating bending cycles
- 10 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®SERVO FD 796 P | ||||
| 0025319 | 4 G 1,5 + (2 x 1,5) | 11.7 | 99 | 217 |
| 0025320 | 4 G 2,5 + (2 x 1,5) | 13.1 | 134 | 270 |
| 0025321 | 4 G 4 + (2 x 1,5) | 14.2 | 195 | 333 |
| 0025322 | 4 G 6 +(2 x 1,5) | 16 | 272 | 403 |
| 0025323 | 4 G 10 + (2 x 1,5) | 18.4 | 425 | 581 |
| 0025324 | 4 G 16 + (2 x 1,5) | 22.1 | 656.00 | 887 |
| 0025326 | 4 G 0,75 + 2 x (2 x 0,34) | 10.9 | 54.00 | 143 |
| 0025327 | 4 G 1,5 + 2 x ( 2 x 0,75) | 12.3 | 103.00 | 209 |
| 0025328 | 4 G 2,5 + 2 x (2 x 1,0) | 14.3 | 152 | 306 |
| 0025312 | 4 G 4 + 2 x (2 x 1,0) | 15.4 | 218 | 381 |
| 0025329 | 4 G 4 + (2 x 1,0) + (2 x 1,5) | 15.6 | 231 | 388 |
| 0025330 | 4 G 6 + (2 x 1,0) + (2 x 1,5) | 17. 1 | 308 | 460 |
