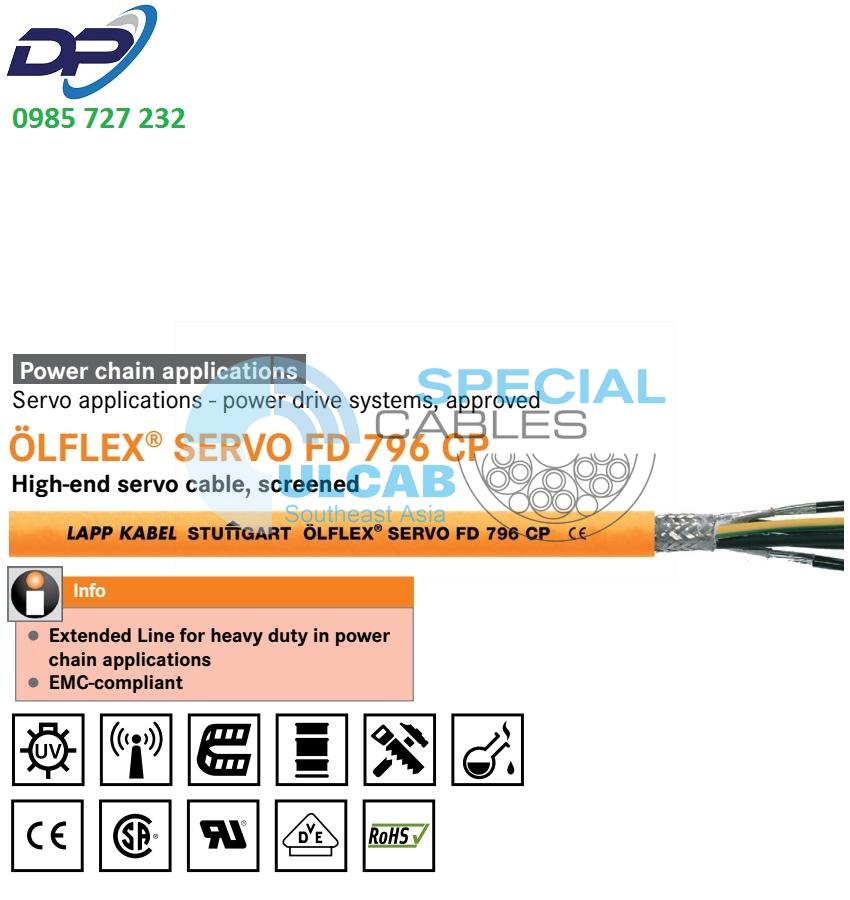

ÖLFLEX® SERVO FD 796 CP
Shielded servo cable with PUR sheath for highly dynamic power chain application – certified
ÖLFLEX® SERVO FD 796 CP – shielded servo cable for highly dynamic power chain applications in harsh conditions with UL/CSA AWM and VDE.
- Extended line for high loads in power chains
- AWM certification for USA and Canada
- VDE-tested characteristics
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Suitable for use with servomotor systems from leading drive manufacturers
- Longer cable connection possible between converter and drive due to low capacitance design
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- Connecting cable between servo controller and motor
- In power chains or mobile machine parts
- For use in assembly & automatic placement machines
- Particularly in wet areas of machine tools and transfer lines
- Assembly and production lines, in all kinds of machines
- For indoor and outdoor use
Product features
- Dynamic drag chain performance:
Acceleration up to 50 m/s².
Travel speeds up to 5 m/s.
Travel distances up to 100 m. - Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Halogen-free materials
- Abrasion-resistant and notch-resistant
- Oil-resistant
Norm references / approvals
- VDE – reg. – no. 8591
UL AWM Style 20234
cULus AWM I/II A/B, 1000V 80° FT1
CSA AWM I/II A, 1000V 80° FT1 - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation: Polypropylene (PP)
- Individual design depending on the item: Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths
- Fleece wrapping
- Tin-plated copper braiding
- Polyurethane sheath (PUR), orange (RAL 2003)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
- Optional designs with
one pair of control cores: black; white
Two pairs of control cores: black with white numbers: 5, 6, 7, 8
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter (1.5-16mm²)
10 x outer diameter (25-50mm²) - Fixed installation: 4 x outer diameter
Nominal voltage
- Power cores and control cores:
IEC U0/U: 600/1000 V - UL & CSA: 1000 V
Test voltage
- Core/Core: 4 kV
- Core/Shield: 2 kV
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Flexing:
-40°C to +90°C (UL/CSA: +80°C) - Fixed installation:
-50°C to +90°C (UL/CSA: +80°C)
Alternating bending cycles
- 10 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® SERVO FD 796 CP | ||||
| 0027950 | 4 G 1,5 | 9.1 | 79 | 140 |
| 0027951 | 4 G 2,5 | 10.6 | 129 | 197 |
| 0027952 | 4 G 4 | 11.9 | 186 | 268 |
| 0027953 | 4 G 6 | 14.5 | 296 | 397 |
| 0027954 | 4 G 10 | 17.5 | 449 | 591 |
| 0027955 | 4 G 16 | 21.6 | 716.00 | 955 |
| 0027956 | 4 G 25 | 25.2 | 1,073.00 | 1337 |
| 0027957 | 4 G 35 | 28.6 | 1,480.00 | 1769 |
| 0027958 | 4 G 50 | 33.4 | 2,115.00 | 2468 |
| 0027959 | 4 G 1,5 + (2 x 1,5) | 11.6 | 135 | 261 |
| 0027960 | 4 G 2,5 + (2 x 1,5) | 13.4 | 188 | 318 |
| 0027961 | 4 G 4 + (2 x 1,5) | 14.8 | 235 | 385 |
| 0027962 | 4 G 6 + (2 x 1,5) | 16.8 | 329 | 486 |
| 0027963 | 4 G 10 + (2 x 1,5) | 19.4 | 515 | 701 |
| 0027964 | 4 G 16 + (2 x 1,5) | 23.1 | 757 | 1048 |
| 0027965 | 4 G 25 + (2 x 1,5) | 26.6 | 1, 147.0 | 1532 |
| 0027966 | 4 G 35 + (2 x 1,5) | 30.9 | 1,538.00 | 2097 |
| 0027967 | 4 G 50 + (2 x 1,5) | 34 | 2,181.00 | 2721 |
| 0027969 | 4 G 1,5 + 2 x (2 x 0,75) | 12.2 | 159 | 313 |
| 0027970 | 4 G 2,5 + 2 x (2 x 1,0) | 14.6 | 207 | 395 |
| 0027980 | 4 G 4 + 2 x (2 x 1,0) | 16.1 | 274 | 466 |
| 0027971 | 4 G 4 + (2 x 1,0) + (2 x 1,5) | 16.3 | 344 | 485 |
| 0027972 | 4 G 6 + (2 x 1,0) + (2 x 1,5) | 18.1 | 436 | 588 |
| 0027973 | 4 G 10 + (2 x 1,0) + (2 x 1,5) | 21.8 | 610 | 819 |
| 0027974 | 4 G 16 + 2 x (2 x 1,5) | 25.5 | 801 | 1135 |
| 0027975 | 4 G 25 + 2 x (2 x 1,5) | 28.8 | 1, 187.0 | 1559 |
| 0027976 | 4 G 35 + 2 x (2 x 1,5) | 30.9 | 1,588.00 | 2093 |
| 0027977 | 4 G 50 + 2 x (2 x 2,5) | 36.3 | 2,557.00 | 2920 |
