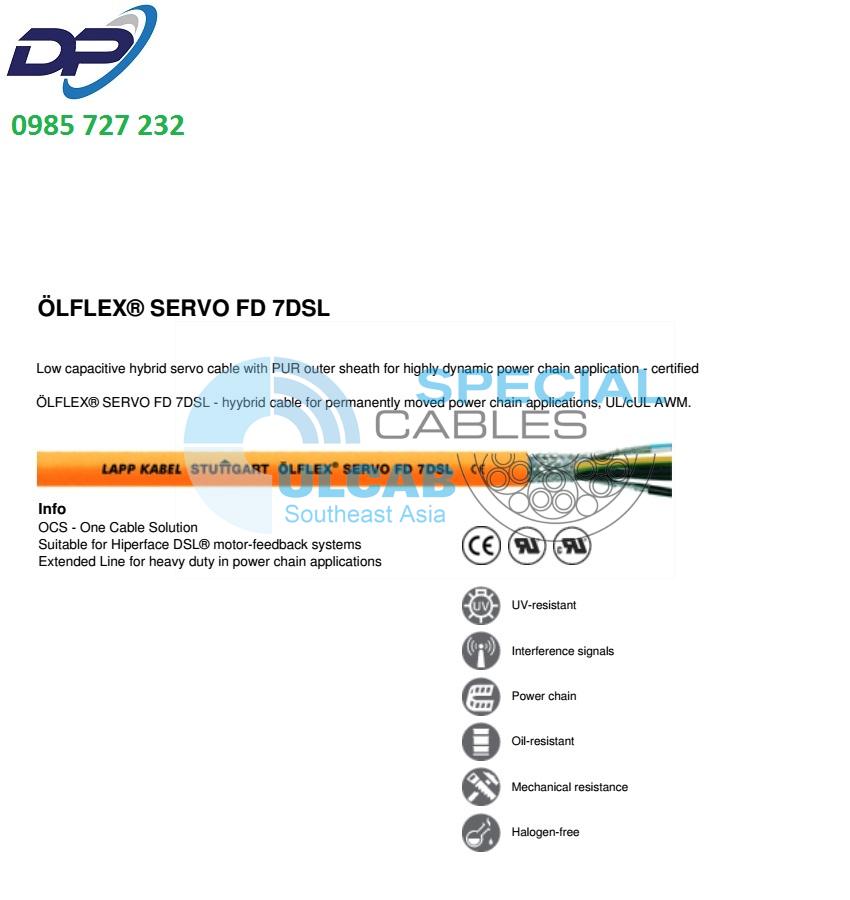

ÖLFLEX® SERVO FD 7DSL
Low capacitive hybrid servo cable with PUR sheath for highly dynamic power chain application – certified
ÖLFLEX® SERVO FD 7DSL – hybrid cable for permanently flexing applications with UL/cUL AWM.
- OCS – One Cable Solution
- Suitable for Hiperface DSL® motor-feedback systems
- Extended line for high loads in power chains
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Only one connection line between frequency converter and motor-feedback system. Instead of the encoder cable, an integrated DSL pair takes over the signalling.
- Fewer cables required and reduced connection costs
- Space and weight savings thanks to hybrid cable design
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Application range
- Applications in electric drive systems
- Connecting cable between servo controller and motor
- In power chains or mobile machine parts
- For use in assembly & automatic placement machines
- Particularly in wet areas of machine tools and transfer lines
Product features
- Dynamic drag chain performance:
Acceleration up to 50 m/s².
Travel speeds up to 5 m/s.
Travel distances up to 20m. - Maximum DSL transmission length: 100m
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Halogen-free materials
- Low-capacitance design
- Oil-resistant
Norm references / approvals
- UL AWM Style 21223
cRU AWM I/II A/B FT1 - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire, bare copper conductor (power cores and control pair) and 19-wire, tin-plated copper conductor (signal pair)
- Core insulation: Polypropylene (PP)
- Individual design depending on the item: Power cores without or with one individually shielded control pair and one DSL signal pair twisted together
- Fleece wrapping
- Tin-plated copper braiding
- Polyurethane sheath (PUR), orange (RAL 2003)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
- Signal pair: white, blue
Control pair (optional): black with numbers 5 + 6
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
- DSL pair: 19-wire
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 5 x outer diameter
Nominal voltage
- Power and control cores:
IEC: U0/U: 600/1000 V
UL: 1000 V
Signal pair: 300 V
Test voltage
- Power and control cores: 4 kV
Signal pair: 1kV
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Flexing: -40°C to +90°C (UL: +80°C)
- Fixed installation: -50°C to +90°C (UL: +80°C)
Alternating bending cycles
- 10 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Hybrid cables for power chain applications | ||||
| 1023275 | 4 G 1,5 + (2 x 22AWG) | 11.2 | 115 | 198 |
| 1023276 | 4 G 2,5 + (2 x 22AWG) | 12.6 | 160 | 269 |
| 1023277 | 4 G 4 + (2 x 22AWG) | 14 | 218 | 343 |
| 1023274 | 4 G 1 + (2 x 0,75) + (2 x 22AWG) | 11.8 | 133 | 202 |
| 1023278 | 4 G 1,5 + (2 x 1,0) + (2 x 22AWG) | 13.2 | 152 | 256 |
| 1023279 | 4 G 2,5 + (2 x 1,0) + (2 x 22AWG) | 14 | 195.00 | 313 |
| 1023280 | 4 G 4 + (2 x 1,0) + (2 x 22AWG) | 15.8 | 268.00 | 407 |
