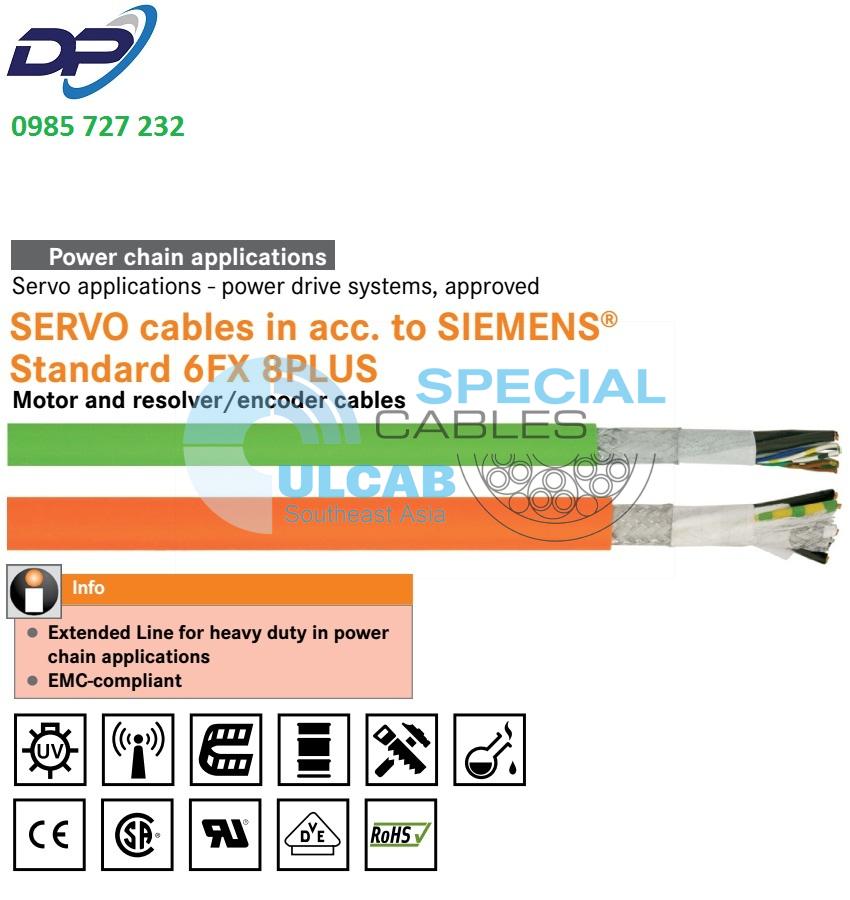

Cables in accordance with SIEMENS® standard 6FX 8PLUS
Motor connection and rotary encoder cables – certified
Cables according to SIEMENS® standard 6FX 8PLUS – shielded motor connection and rotary encoder cables for dynamic applications with UL/CSA AWM and VDE.
- Servo drives
- PUR outer sheath
- EMC-compliant
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Multi-standard certification reduces part varieties and saves costs
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Application range
- Connecting cable between servo controller and encoder/resolver
- Connecting cable between servo controller and motor
- In power chains or mobile machine parts
- For use in assembly & automatic placement machines
- Particularly in wet areas of machine tools and transfer lines
- Assembly and production lines, in all kinds of machines
Product features
- Dynamic drag chain performance:
Acceleration up to 50 m/s².
Travel speeds up to 5 m/s.
Travel distances up to 100 m. - Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres
- Abrasion-resistant, cut-resistant, halogen-free, oil-resistant
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
Norm references / approvals
- Power cable:
VDE-registered
UL AWM style 21223
CSA AWM I/II, A/B 1000 V 80° FT 1 - Encoder cables:
UL/CSA AWM style 20236 - UL File No. E63634
- For horizontal travel distances up to 100m
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of copper wires:
> Signal cables: tin-plated
> Power cables: bare - Core insulation: Polypropylene (PP)
- Tin-plated copper braiding
- PUR outer sheath
- Signal cables: green (RAL 6018)
- Servo cables: orange (RAL 2003)
- Refer to data sheet for more details
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Details see datasheet
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- Power cable:
Static: 4 x outer diameter
Dynamic:
1.5 mm² – 16 mm²: 7.5 x outer diameter
25 mm² – 50 mm²: 10 x outer diameter
Signal cable:
Static: 4 x outer diameter
Dynamic: 8 x outer diameter
Nominal voltage
- Signal cables:
30 V AC/DC - Power cables:
– Power cores:
U0/U 600/1000 V (IEC)
1000 V (UL/CSA)
– Control cores:
24 V AC/DC (IEC)
1000 V (UL/CSA)
Test voltage
- Power cable: 4KV
- Signal cables: 500 V
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Flexing: -20°C to +60°C
- Fixed installation: -50°C to +80°C
Alternating bending cycles
- 10 million cycles
| Article number | Number of cores and mm² per conductor | Reference article no. | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Feedback / signal cables | |||||
| 00277101 | 8 x 2 x 0,18 | 6FX8008-1BD11 | 7.8 | 54 | 85 |
| 00277111 | 4 x 2 x 0,38 + 4 x 0,5 | 6FX8008-1BD21 | 8.9 | 77 | 120 |
| 00277121 | 3 x (2 x 0,14) + 2 x (0,5) | 6FX8008-1BD31 | 8.9 | 69 | 113 |
| 00277131 | 3 x (2 x 0,14) + 4 x 0,14 + 2 x 0,5 | 6FX8008-1BD41 | 8.8 | 66 | 101 |
| 00277141 | 3 x (2 x 0,14) + 4 x 0,14 + 2 x 0,5 + 4 x 0,22 | 6FX8008-1BD51 | 9.4 | 86 | 139 |
| 00277151 | 4 x 2 x 0,18 | 6FX8008-1BD61 | 6.4 | 34.20 | 53 |
| 00277161 | 2 x 2 x 0,18 | 6FX8008-1BD71 | 5 | 23.10 | 36 |
| 00277171 | 12 x 0,22 | 6FX8008-1BD81 | 6.9 | 48.00 | 76 |
| 00277992 | 2 x 2 x 0,15 + 1 x 2 x 0,38 | 6FX8008-2DC00 | 7.2 | 39.00 | 67 |
| Motor cables | |||||
| 0027784 | 4 G1.5 | 6FX8008-1BB11-Plus | 9.1 | 90 | 150 |
| 0027785 | 4 G2.5 | 6FX8008-1BB21-Plus | 10.6 | 132 | 220 |
| 0027786 | 4 G4 | 6FX8008-1BB31-Plus | 11.9 | 204 | 300 |
| 0027787 | 4 G6 | 6FX8008-1BB41-Plus | 14.5 | 315 | 450 |
| 0027788 | 4 G10 | 6FX8008-1BB51-Plus | 17.5 | 488 | 660 |
| 0027789 | 4 G16 | 6FX8008-1BB61-Plus | 21.6 | 769 | 1010 |
| Servo cables | |||||
| 0027790 | 4 G 1,5 + (2 x 1,5) | 6FX8008-1BA11-Plus | 11.6 | 146 | 230 |
| 0027791 | 4 G 2,5 + (2 x 1,5) | 6FX8008-1BA21-Plus | 13.4 | 187.00 | 300 |
| 0027792 | 4 G 4 + (2 x 1,5) | 6FX8008-1BA31-Plus | 14.8 | 258.00 | 380 |
| 0027793 | 4 G 6 + (2 x 1,5) | 6FX8008-1BA41-Plus | 16.8 | 365 | 530 |
| 0027794 | 4 G 10 + (2 x 1,5) | 6FX8008-1BA51-Plus | 19.4 | 560 | 765 |
| 0027795 | 4 G 16 + (2 x 1,5) | 6FX8008-1BA61-Plus | 23.1 | 816 | 1090 |
| 0027796 | 4 G 25 + (2 x 1,5) | 6FX8008-1BA25-Plus | 26.6 | 1,166.00 | 1530 |
| 0027797 | 4 G 35 + (2 x 1,5) | 6FX8008-1BA35-Plus | 30.9 | 1,554.00 | 2040 |
| 0027798 | 4 G 50 + (2 x 1,5) | 6FX8008-1BA50-Plus | 34 | 2,188.00 | 2760 |
