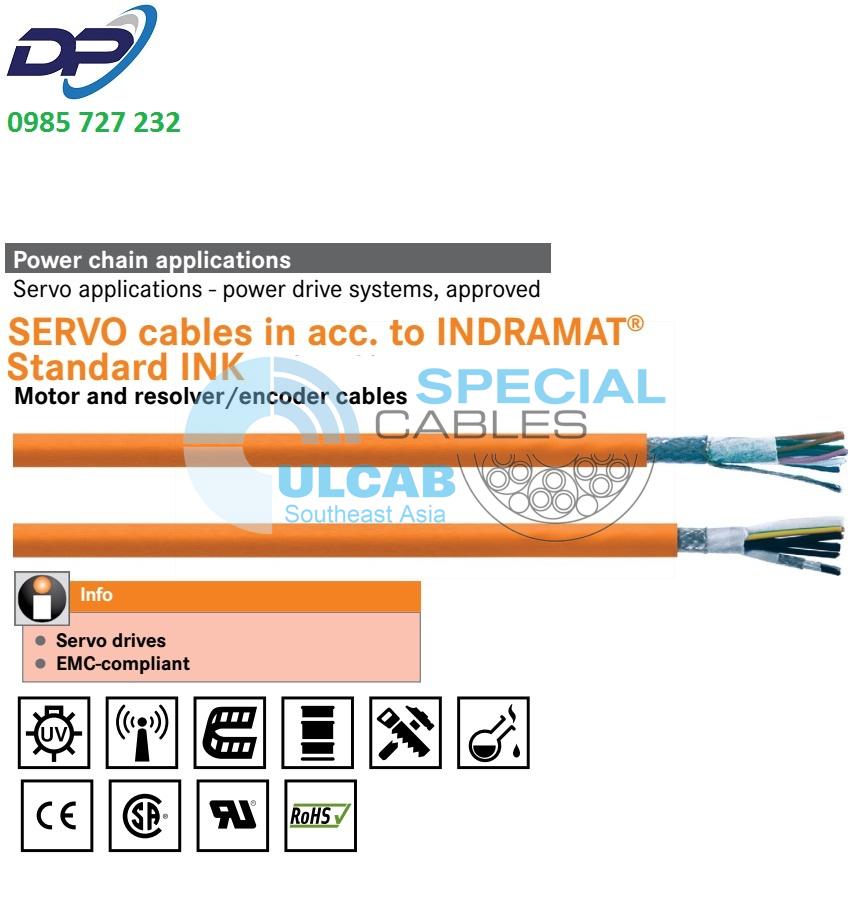

Cables in accordance with INDRAMAT® standard INK
Motor connection and rotary encoder cables – certified
Cables according to INDRAMAT® standard INK – shielded motor connection and rotary encoder cables for dynamic applications with UL/CSA AWM.
- Servo drives
- PUR outer sheath
- EMC-compliant
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Multi-standard certification reduces part varieties and saves costs
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Application range
- Connecting cable between servo controller and encoder/resolver
- Connecting cable between servo controller and motor
- Particularly in wet areas of machine tools and transfer lines
- Assembly and production lines, in all kinds of machines
Product features
- Designed for 5 million alternating bending cycles
- For horizontal travel distances up to 100m
- Abrasion-resistant, cut-resistant, halogen-free, oil-resistant
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
Norm references / approvals
- Power cables:
UL Style 20234, CSA AWM I/II A/B - Signal cables:
UL Style 20236, CSA AWM I/II A/B - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- In accordance with INDRAMAT® standard INK (also suitable for pre-assembled versions IKS and IKG)
- Core insulation made of TPE
- Refer to data sheet for more details
- Tin-plated copper braiding
- Polyurethane sheath (PUR), orange (RAL 2003)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Details see datasheet
Conductor design
- Extra-fine wire according to IEC 60228 class 6
Minimum bending radius
- Power cable:
Fixed installation: 4 x outer diameter
for flexible application: 7.5 x outer diameter - Signal cables:
Fixed installation: 5 x outer diameter
for flexible application: 10 x outer diameter
Nominal voltage
- Power cables:
– Power cores:
U0/U 600/1000 V (IEC)
1000 V (UL/CSA)
– Control cores:
250 V AC (IEC)
1000 V (UL/CSA) - Signal cables:
300V (IEC), 300V (UL/CSA)
Test voltage
- Power cables:
Power cores: 4000 V
Control cores: 2000 V - Signal cables: 500 V
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Fixed installation: -50°C to +80°C
- Flexing: -30°C to +80°C
Alternating bending cycles
- 5 million cycles
| Article number | Number of cores and mm² per conductor | Reference article no. | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Feedback / encoder / resolver cables | |||||
| 7072400 | 4 x 2 x 0,25 + 2 x 1,0 | INK-0209 | 8.8 | 74 | 120 |
| 7072401 | 4 x 2 x 0,25 + 2 x 0,5 | INK-0448 | 8.5 | 70 | 100 |
| 7072402 | 9 x 0,5 | INK-0208 | 8.8 | 75 | 126 |
| 7072414 | 4 x 1,0 + 4 x 2 x 0,14 + 4 x 0,14 | INK-0532 | 9.7 | 81 | 140 |
| 7072415 | 2 x (2 x 0,25) + 2 x 0,5 | INK-0234 | 8.7 | 46 | 90 |
| 7072416 | 2 x 2 x 0,25 + 2 x 0,5 | INK-0750 | 7.6 | 35.00 | 92 |
| Servo cables | |||||
| 7072417 | 4 G 0,75 + 2 x 0,5 | INK-0670 | 10 | 73.00 | 132 |
| 7072403 | 4 G 1,0 + 2 x (2 x 0,75) | INK-0653 | 11.5 | 170.00 | 226 |
| 7072404 | 4 G 1,5 + 2 x (2 x 0,75) | INK-0650 | 12.2 | 189.00 | 268 |
| 7072405 | 4 G 2,5 + 2 x (2 x 1,0) | INK-0602 | 15.1 | 212 | 320 |
| 7072406 | 4 G 4 + (2 x 1,0) + (2 x 1,5) | INK-0603 | 16 | 306 | 470 |
| 7072407 | 4 G 6 + (2 x 1,0) + (2 x 1,5) | INK-0604 | 18.8 | 366 | 600 |
| 7072408 | 4 G 10 + (2 x 1,0) + (2 x 1,5) | INK-0605 | 22 | 565 | 850 |
| 7072409 | 4 G 16 + 2 x (2 x 1,5) | INK-0606 | 25.2 | 838 | 1020 |
| 7072410 | 4 G 25 + 2 x (2 x 1,5) | INK-0607 | 28 | 1,231.00 | 1420 |
■ Similar products
▯ ÖLFLEX®SERVO FD 796 CP
■ Accessories
▯ Circular connectors
▯ SKINTOP®EMC/Earthing
