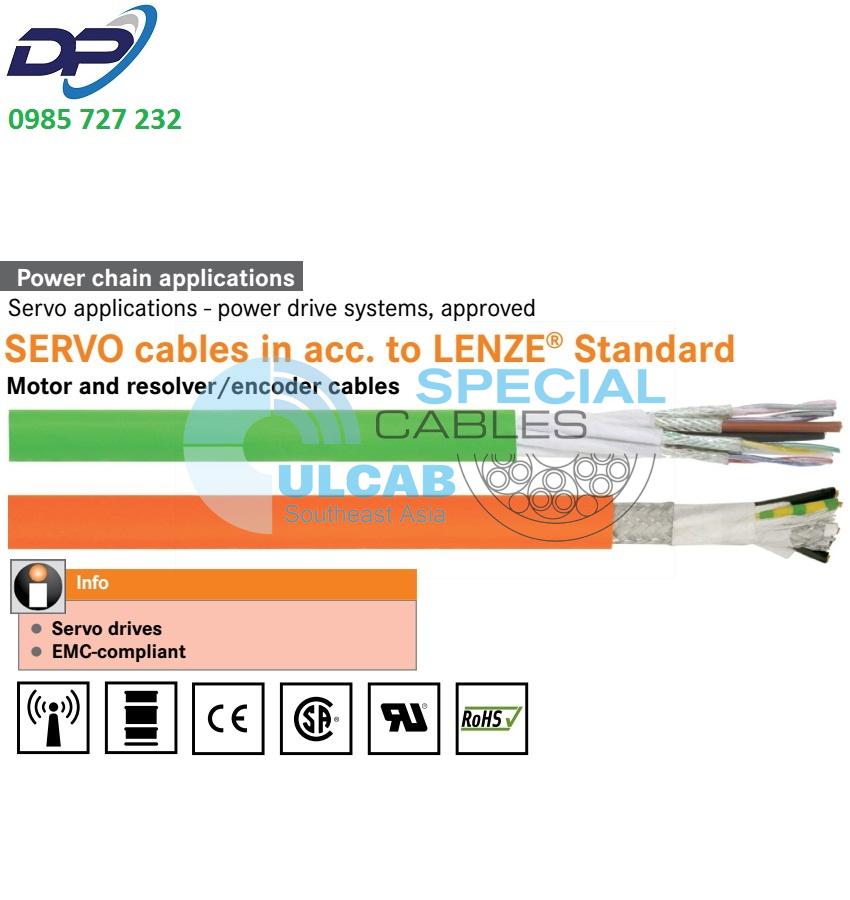

Cables in accordance with LENZE® standard
Motor connection and rotary encoder cables – certified
Cables according to LENZE® standard – motor connection and rotary encoder cables for stationary or dynamic applications with UL/CSA AWM.
- Servo drives
- Static or highly flexible use
- EMC-compliant
Benefits
- Motor cables with low-capacitance
- Multi-standard certification reduces part varieties and saves costs
Application range
- Connecting cable between servo controller and encoder/resolver
- Connecting cable between servo controller and motor
- Plant construction
- Assembly and production lines, in all kinds of machines
Norm references / approvals
- Resolver & encoder cable:
UL AWM Style 2464 for fixed installation versions,
UL AWM Style 21165 for high flexibility use,
CSA AWM I/II A/B - Motor cable:
UL AWM Style 2570 for fixed installation version,
UL AWM Style 20940 for high flexibility use,
CSA AWM I/II A/B - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Design according to LENZE® standard:
- Versions for fixed installation:
PVC outer sheath, PP core insulation - Versions for highly flexible use:
PUR sheath, TPE core insulation - Refer to data sheet for more details
- Signal cables: green (RAL 6018)
- Servo cables: orange (RAL 2003)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Encoder cables:
– 7072508 (fixed installation)
bk/ye+bk/gn+bk/rd+bk/bu+bk/wh
– 7072517 (flexible use)
gn/ye+bu/rd+gy/pk+bk/vt+bn/wh - Resolver cables:
– 7072507 (fixed installation)
bk/ye+bk/gn+bk/rd+bk/wh
– 7072516 (flexible use)
gn/ye+bu/rd+gy/pk+bn/wh
Minimum bending radius
- Flexible use: 10 x outer diameter
- Fixed installation: 7.5 x outer diameter
Nominal voltage
- Signal cables:
30 V (VDE), 300 V (UL/CSA) - Power cables:
– Power cores:
U0/U 0.6/1 kV (VDE)
600 V (UL/CSA)
– Control cores:
24 V (VDE)
600 V (UL/CSA)
Test voltage
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Motor cables for fixed installation | ||||
| 7072500 | 4 G 1,0 + (2 x 0,5) | 10 | 81 | 128 |
| 7072501 | 4 G 1,5 + (2 x 0,5) | 11.2 | 106 | 173 |
| 7072502 | 4 G 2,5 + (2 x 0,5) | 12.3 | 153 | 244 |
| Resolver/encoder cable, screened | ||||
| 7072507 | 3 x (2 x 0,14) + 1 x (2 x 0,5) | 9.3 | 43 | 91 |
| 7072508 | 4 x (2 x 0,14) + 1 x (2 x 1,0) | 11 | 65 | 136 |
| Motor cables for power chain application | ||||
| 7072509 | 4 G 1,0 + (2 x 0,5) | 10 | 81.00 | 151 |
| 7072510 | 4 G 1,5 + (2 x 0,5) | 11.5 | 106.00 | 192 |
| 7072511 | 4 G 2,5 + (2 x 0,5) | 13.2 | 153.00 | 271 |
| 7072512 | 4 G 4 + (2 x 1,0) | 14.6 | 235.00 | 373 |
| 7072513 | 4 G 6 + (2 x 1,0) | 16.8 | 316 | 477 |
| 7072514 | 4 G 10 + (2 x 1,0) | 20.1 | 513 | 710 |
| 7072515 | 4 G 16 + (2 x 1,0) | 23.8 | 710 | 1015 |
| Resolver & encoder cable for power chain applications | ||||
| 7072516 | 3 x (2 x 0,14) + 1 x (2 x 0,5) | 10 | 44 | 107 |
| 7072517 | 4 x (2 x 0,14) + 1 x (2 x 1,0) | 11.5 | 65 | 145 |
