Special encoder and resolver cables
Rotary encoder cables of various drive systems

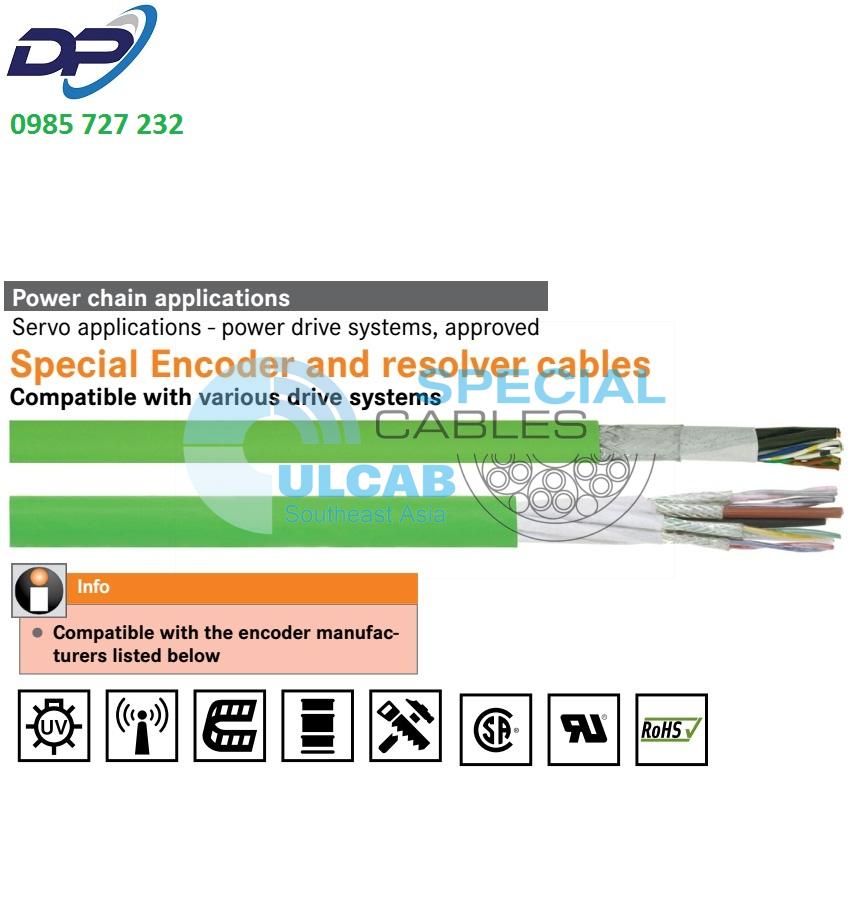

Special encoder and resolver cables for dynamic applications in power chains with UL/CSA AWM certification.
- Suitable for various rotary encoder systems
- PUR outer sheath
- AWM certification for USA and Canada
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Multi-standard certification reduces part varieties and saves costs
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Application range
- Servo drives and servo assemblies
- In power chains or mobile machine parts
- Plant construction
- Particularly in wet areas of machine tools and transfer lines
- Assembly and production lines, in all kinds of machines
Product features
- Abrasion-resistant and notch-resistant
- Oil-resistant
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
Norm references / approvals
- UL/CSA AWM styles please refer to data sheet
- UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Design according to specific OEM standard
- Refer to data sheet for more details
- PUR outer sheath
- Sheath colour: See ordering table
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Colour | Copper index (kg/km) | Weight (kg/km) |
| Suitable for Heidenhain | |||||
| 70388718 | 4 x 2 x 0,14 + 4 x 0,5 | 8.5 | black | 48 | 92 |
| 70388719 | 3 x (2 x 0,14) + 2 x (0,5) | 8.3 | black | 64 | 100 |
| 70388720 | 3 x (2 x 0,14) + 2 x (1,0) | 9.1 | black | 64 | 115 |
| 70388721 | 4 x 2 x 0,14 + 4 x 0,5 + (4 x 0,14) | 8.3 | black | 56 | 102 |
| Suitable for ELAU | |||||
| 70388722 | 3 x 2 x 0,25 + 2 x 0,5 | 8.4 | green | 44 | 95 |
| Suitable for KEB | |||||
| 70388724 | 3 x (2 x 0,14) + 2 x (0,5) | 8.1 | orange | 64 | 100 |
| Suitable for Berger Lahr | |||||
| 70388726 | 5 x 2 x 0,25 + 2 x 0,5 | 9.5 | green | 56 | 120 |
| Suitable for B & R | |||||
| 70388727 | 3 x 2 x 24AWG | 6.5 | green | 28 | 60 |
| 70388728 | 5 x 2 x 0,14 + 2 x 0,5 | 7.8 | green | 40 | 80 |
| Suitable for FANUC | |||||
| 70388730 | 5 x 0,5 + 2 x 2 x 0,18 | 7.6 | green | 94 | 169 |
| 70388731 | 2 x 0,5 + 4 x 2 x 0,22 | 7.6 | green | 72 | 120 |
| 70388732 | 3 x 2 x0,18 + 6 x 0,5 | 8.7 | green | 105 | 189 |
| 70388733 | 3 x 2 x 0,18 + 6 x 1,0 | 8.7 | green | 140 | 252 |
| 70388734 | 5 x 2 x 0,18 + 6 x 0,5 | 8.7 | green | 114 | 205 |
| 70388735 | 10 x 2 x 24 AWG | 9 | green | 60 | 121 |
