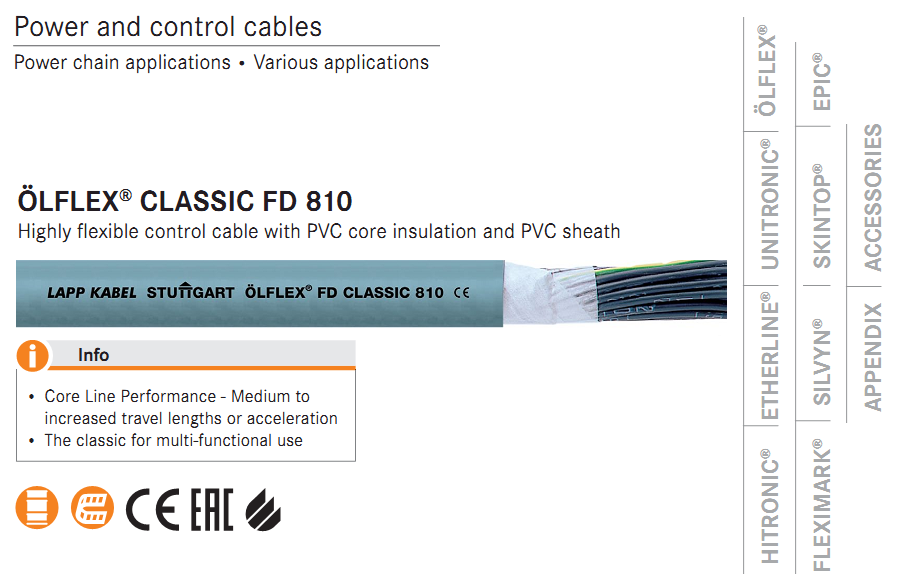

ÖLFLEX® CLASSIC FD 810
Highly flexible control cable with PVC core insulation and PVC sheath
ÖLFLEX® CLASSIC FD 810 – power and control cable for versatile use in power chains.
- Core Line for average duty power chain applications
- The classic for multi-functional use
Benefits
- Tried-and-tested and reliable
- Cost-effective version
- Low particle emission in flexing chain applications
Application range
- In power chains or mobile machine parts
- Suitable for use in measuring, control and regulating circuits
- Assembly and production lines, in all kinds of machines
- In damp or wet interiors
- Only for outdoor use within the indicated operating temperature range and with UV-protection
Product features
- Designed for 5 million alternating bending cycles and travel distances up to 10 metres
- Flame-retardant according to IEC 60332-1-2
- Low-adhesive surface
Norm references / approvals
- Core based on VDE 0245/0285
- Sheath based on VDE 0245/0285
- Clean room classification for individual items on request
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation: PVC
- Cores twisted in layers with short lay lengths
- Fleece wrapping
- PVC sheath, grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: 0°C to +70°C
- Fixed installation: -40°C to +80°C
Alternating bending cycles
- 5 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0026100 | 2 X 0.5 | 5.3 | 10 | 40 |
| 0026101 | 3 G 0.5 | 5.7 | 15 | 48 |
| 0026102 | 4 G 0.5 | 6.3 | 19.2 | 58 |
| 0026103 | 5 G 0.5 | 6.8 | 24 | 67 |
| 0026104 | 7 G 0.5 | 8 | 34 | 88 |
| 0026105 | 12 G 0.5 | 9.5 | 58 | 136 |
| 0026106 | 18 G 0.5 | 11.4 | 86.4 | 195 |
| 0026107 | 25 G 0.5 | 13.7 | 120 | 274 |
| 0026108 | 30 G 0.5 | 14.3 | 144 | 312 |
| 0026109 | 34 G 0.5 | 15.6 | 164 | 359 |
| 0026110 | 50 G 0.5 | 18.5 | 240 | 515 |
| 0026119 | 2 X 0.75 | 5.7 | 15 | 49 |
| 0026120 | 3 G 0.75 | 6.2 | 22 | 60 |
| 0026121 | 4 G 0.75 | 6.8 | 29 | 73 |
| 0026122 | 5 G 0.75 | 7.4 | 37 | 86 |
| 0026123 | 7 G 0.75 | 8.9 | 51 | 117 |
| 0026124 | 12 G 0.75 | 10.6 | 87 | 181 |
| 0026125 | 16 G 0.75 | 12 | 116 | 234 |
| 0026126 | 18 G 0.75 | 12.7 | 130 | 259 |
| 0026127 | 25 G 0.75 | 15.2 | 181 | 363 |
| 0026130 | 2 X 1.0 | 6.1 | 19 | 58 |
| 0026131 | 3 G 1.0 | 6.6 | 29 | 72 |
| 0026132 | 4 G 1.0 | 7.3 | 39 | 88 |
| 0026133 | 5 G 1.0 | 8 | 48 | 104 |
| 0026134 | 7 G 1.0 | 9.6 | 67 | 142 |
| 0026135 | 12 G 1.0 | 11.4 | 115 | 221 |
| 0026136 | 14 G 1.0 | 12.3 | 134.4 | 258 |
| 0026137 | 16 G 1.0 | 13 | 153 | 287 |
| 0026138 | 18 G 1.0 | 13.9 | 173 | 324 |
| 0026139 | 25 G 1.0 | 16.4 | 240 | 445 |
| 0026140 | 26 G 1.0 | 16.4 | 249.6 | 459 |
| 0026141 | 34 G 1.0 | 18.9 | 326.4 | 595 |
| 0026142 | 41 G 1.0 | 20.6 | 394 | 712 |
| 0026143 | 50 G 1.0 | 22.3 | 480 | 854 |
| 0026144 | 65 G 1.0 | 25.4 | 624 | 1097 |
| 0026149 | 2 X 1.5 | 6.8 | 29 | 74 |
| 0026150 | 3 G 1.5 | 7.4 | 43.2 | 93 |
| 0026151 | 4 G 1.5 | 8.1 | 58 | 114 |
| 0026152 | 5 G 1.5 | 9.1 | 72 | 139 |
| 0026153 | 7 G 1.5 | 10.9 | 101 | 189 |
| 0026154 | 12 G 1.5 | 12.9 | 173 | 295 |
| 0026156 | 18 G 1.5 | 15.6 | 259 | 429 |
| 0026157 | 25 G 1.5 | 18.6 | 360 | 597 |
| 0026158 | 26 G 1.5 | 18.6 | 374.4 | 615 |
| 0026159 | 34 G 1.5 | 21.1 | 489.6 | 783 |
| 0026160 | 41 G 1.5 | 23 | 613 | 936 |
| 0026161 | 42 G 1.5 | 23 | 629 | 954 |
| 0026162 | 50 G 1.5 | 25 | 720 | 1134 |
| 0026170 | 3 G 2.5 | 9 | 72 | 145 |
| 0026171 | 4 G 2.5 | 10 | 96 | 179 |
| 0026172 | 5 G 2.5 | 11.2 | 120 | 218 |
| 0026173 | 7 G 2.5 | 13.6 | 168 | 303 |
| 0026174 | 12 G 2.5 | 16 | 288 | 473 |
| 0026175 | 14 G 2.5 | 17.2 | 336 | 548 |
| 0026180 | 3 G 4 | 10.6 | 120 | 214 |
| 0026181 | 4 G 4 | 11.7 | 160 | 266 |
| 0026182 | 5 G 4 | 13.1 | 200 | 325 |
| 0026183 | 4 G 6 | 13.9 | 223 | 396 |
| 0026184 | 5 G 6 | 15.5 | 288 | 484 |
| 0026185 | 4 G 10 | 17.6 | 384 | 644 |
| 0026186 | 5 G 10 | 19.6 | 480 | 785 |
| 0026187 | 4 G 16 | 21 | 615 | 922 |
| 0026188 | 5 G 16 | 23.6 | 768 | 1133 |
