ÖLFLEX® CLASSIC FD 810 CY

Highly flexible, shielded control cable with PVC core insulation and PVC inner and outer sheath

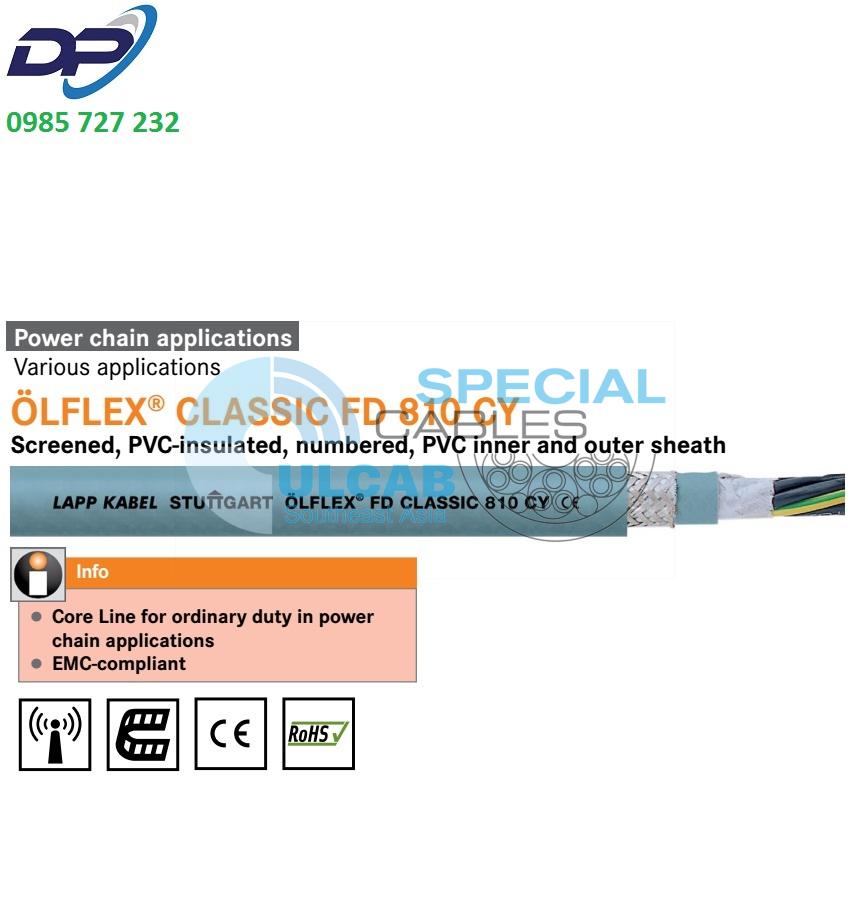

ÖLFLEX® CLASSIC FD 810 CY – shielded power and control cable for versatile use in power chains.

Core Line for average duty power chain applications
The classic for multi-functional use
EMC-compliant

product information (PDF)

Benefits

Tried-and-tested and reliable
Cost-effective version
Additional robustness thanks to inner sheath
Copper shielding complies with EMC requirements and protects against electromagnetic interference

Application range

In power chains or mobile machine parts
Suitable for use in measuring, control and regulating circuits
Power circuits for electrical equipment used in automation engineering
Assembly and production lines, in all kinds of machines
Only for outdoor use within the indicated operating temperature range and with UV-protection

Product features

Designed for 5 million alternating bending cycles and travel distances up to 10 metres
Flame-retardant according to IEC 60332-1-2
Low-adhesive surface
EMC-compliant

Norm references / approvals

Core based on VDE 0245/0285
Sheath based on VDE 0245/0285
For use in power chains: Please comply with assembly guideline appendix T3

Design

Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in layers with short lay lengths
PVC inner sheath, grey
Tin-plated copper braiding
Fleece wrapping
PVC sheath, grey (RAL 7001)

Classification

ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable

Core identification code

Black with white numbers acc. to VDE 0293-1

Conductor design

Extra-fine wire according to VDE 0295, class 6 / IEC 60228 class 6

Minimum bending radius

For flexible use:
7.5 x outer diameter
Fixed installation: 4 x outer diameter

Nominal voltage

U₀/U: 300/500 V

Test voltage

4000 V

Protective conductor

G = with GN-YE protective conductor
X = without protective conductor

Temperature range

Flexing: 0°C to +70°C
Fixed installation: -40°C to +80°C

Alternating bending cycles

5 million cycles

Article number	Number of cores and mm² per conductor	Outer diameter (mm)	Copper index (kg/km)	Weight (kg/km)
0026200	2 X 0.5	6.9	33	74
0026201	3 G 0.5	7.3	39	84
0026202	4 G 0.5	7.9	46	98
0026203	5 G 0.5	8.4	54	110
0026204	7 G 0.5	9.8	70	143
0026205	12 G 0.5	11.3	100	201
0026206	18 G 0.5	13.4	153	287
0026207	25 G 0.5	15.9	202	394
0026208	30 G 0.5	16.5	228	432
0026219	2 X 0.75	7.3	39	85
0026220	3 G 0.75	7.8	48	99
0026221	4 G 0.75	8.4	59	116
0026222	5 G 0.75	9	69	133
0026223	7 G 0.75	10.7	90	178
0026224	12 G 0.75	12.4	129	253
0026226	18 G 0.75	14.9	205	368
0026227	25 G 0.75	17.4	271	496
0026229	30 G 0.75	18	320	549
0026230	2 X 1.0	7.7	46	97
0026231	3 G 1.0	8.2	57	114
0026232	4 G 1.0	8.9	70	134
0026233	5 G 1.0	9.8	81	159
0026234	7 G 1.0	11.4	110	207
0026235	12 G 1.0	13.4	182	314
0026238	18 G 1.0	16.1	254	443
0026239	25 G 1.0	18.8	365	612
0026240	26 G 1.0	18.8	374	625
0026241	34 G 1.0	21.5	463	787
0026242	41 G 1.0	23.2	542	918
0026243	50 G 1.0	25.3	640	1120
0026249	2 X 1.5	8.4	58	117
0026250	3 G 1.5	9	75	139
0026251	4 G 1.5	9.9	91	169
0026252	5 G 1.5	10.9	112	201
0026253	7 G 1.5	12.7	145	262
0026254	12 G 1.5	15.1	247	404
0026255	16 G 1.5	16.8	314	503
0026256	18 G 1.5	17.8	348	560
0026257	25 G 1.5	21.2	498	793
0026259	34 G 1.5	23.9	700	1005
0026270	3 G 2.5	10.8	119	207
0026271	4 G 2.5	11.8	161	247
0026272	5 G 2.5	13.2	194	307
0026273	7 G 2.5	15.8	262	418
0026281	4 G 4	13.7	238	360
0026282	5 G 4	15.3	280	436
0026283	4 G 6	16.1	318	514
0026285	4 G 10	20.2	521	824
0026287	4 G 16	23.6	780	1207
