ÖLFLEX® CHAIN 808 CP
Highly flexible, shielded control cable with PVC core insulation and abrasion- and oil-resistant PUR sheath

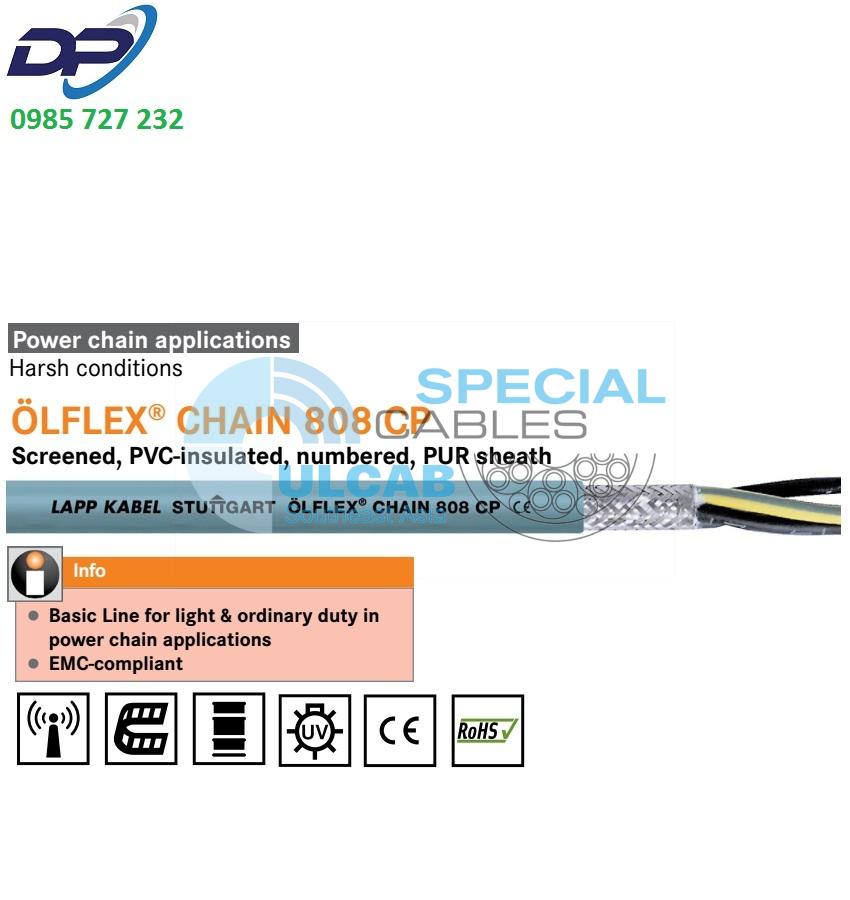

ÖLFLEX® CHAIN 808 CP – highly flexible, shielded control cable with PVC core insulation and abrasion- and oil-resistant PUR outer sheath
- Basic Line for light to medium stress in power chains
- Good oil resistance
- EMC-compliant copper shielding
Benefits
- Good combination of quality and price
- Compact design
- Thin and light, without inner sheath
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- In power chains or mobile machine parts
- In EMC-sensitive environments
- Particularly in wet areas of machine tools and transfer lines
- Suitable for use in measuring, control and regulating circuits
- In dry, damp and wet interiors
Product features
- Designed for 2 million alternating bending cycles and travel distances up to 10 metres
- High oil resistance
- Abrasion-resistant and notch-resistant
- Low-adhesive surface
Norm references / approvals
- Based on EN 50525-2-21
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Fine-wire, bare copper conductor
- Core insulation: PVC
- Cores twisted in layers
- Fleece wrapping
- Tin-plated copper braiding
- Polyurethane sheath, grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- For flexible use:
Chains in self-supporting non-gliding arrangements: 10 x outer diameter
In chains in gliding arrangements: 12 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- Core/Core: 4000 V
- Core/Shield: 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
Alternating bending cycles
- 2 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1027751 | 2 X 0.5 | 5.8 | 36 | 45 |
| 1027752 | 3 G 0.5 | 6.1 | 43 | 59 |
| 1027753 | 4 G 0.5 | 6.6 | 49 | 83 |
| 1027754 | 5 G 0.5 | 7. 1 | 57 | 96 |
| 1027755 | 7 G 0.5 | 8.5 | 69 | 136 |
| 1027756 | 12 G 0.5 | 10 | 104 | 200 |
| 1027757 | 18 G 0.5 | 11.8 | 141 | 275 |
| 1027758 | 25 G 0.5 | 14.1 | 211 | 350 |
| 1027759 | 2 X 0.75 | 6.2 | 43 | 56 |
| 1027760 | 3 G 0.75 | 6.6 | 52 | 70 |
| 10277 61 | 4 G 0.75 | 7. 1 | 61 | 95 |
| 1027762 | 5 G 0.75 | 7.7 | 72 | 130 |
| 1027763 | 7 G 0.75 | 9.1 | 89 | 168 |
| 1027764 | 12 G 0.75 | 10.9 | 138 | 232 |
| 1027765 | 18 G 0.75 | 13 | 211 | 315 |
| 1027766 | 25 G 0.75 | 15.6 | 280 | 435 |
| 1027767 | 2 X 1.0 | 6.5 | 51 | 84 |
| 1027768 | 3 G 1.0 | 6.9 | 62 | 110 |
| 1027769 | 4 G 1.0 | 7.5 | 74 | 130 |
| 1027770 | 5 G 1.0 | 8.3 | 88 | 156 |
| 1027771 | 7 G 1.0 | 9.8 | 112 | 192 |
| 1027772 | 12 G 1.0 | 11.7 | 185 | 285 |
| 1027773 | 18 G 1.0 | 14 | 268 | 395 |
| 1027774 | 25 G 1.0 | 16.7 | 354 | 656 |
| 1027775 | 2 X 1.5 | 7. 1 | 65 | 97 |
| 1027776 | 3 G 1.5 | 7.5 | 82 | 125 |
| 1027777 | 4 G 1.5 | 8.4 | 100 | 165 |
| 1027778 | 5 G 1.5 | 9.1 | 119 | 193 |
| 1027779 | 7 G 1.5 | 10.9 | 154 | 245 |
| 1027780 | 12 G 1.5 | 13.3 | 268 | 365 |
| 1027781 | 18 G 1.5 | 15.7 | 373 | 553 |
| 1027782 | 25 G 1.5 | 18.7 | 530 | 734 |
| 1027783 | 3 G 2.5 | 9 | 118 | 188 |
| 1027784 | 4 G 2.5 | 10.1 | 147 | 236 |
| 1027785 | 7 G 2.5 | 13.5 | 253 | 340 |
| 1027788 | 4 G 4 | 11.9 | 248 | 305 |
