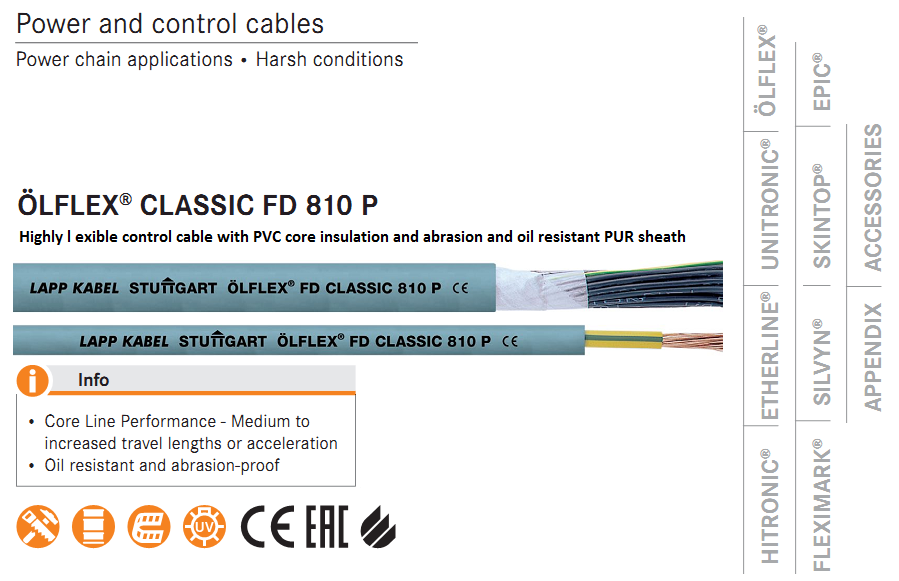

ÖLFLEX® CLASSIC FD 810 P
Highly flexible control cable with PVC core insulation and abrasion and oil resistant PUR sheath
ÖLFLEX® CLASSIC FD 810 P – power and control cable for use in power chains in harsh environmental conditions.
- Core Line for average duty power chain applications
- Good oil resistance
Benefits
- Tried-and-tested and reliable
- Various applications
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Application range
- In power chains or mobile machine parts
- Particularly in wet areas of machine tools and transfer lines
- Power circuits for electrical equipment used in automation engineering
- Suitable for use in measuring, control and regulating circuits
- In dry, damp or wet interiors with normal mechanical stress conditions
Product features
- Designed for 5 million alternating bending cycles and travel distances up to 10 metres
- Flame-retardant (IEC 60332.1.2)
- High oil resistance
- Abrasion-resistant and notch-resistant
- Low-adhesive surface
Norm references / approvals
- Core based on VDE 0245/0285
- Sheath based on VDE 0245/0285
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation: PVC
- Cores twisted in short lay lengths
- Fleece wrapping
- Polyurethane sheath, grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
Alternating bending cycles
- 5 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0026300 | 2 X 0.5 | 5.3 | 10 | 36 |
| 0026301 | 3 G 0.5 | 5.7 | 15 | 44 |
| 0026302 | 4 G 0.5 | 6.3 | 19 | 53 |
| 0026303 | 5 G 0.5 | 6.8 | 24 | 62 |
| 0026304 | 7 G 0.5 | 8 | 34 | 82 |
| 0026305 | 12 G 0.5 | 9.5 | 58 | 129 |
| 0026306 | 18 G 0.5 | 11.4 | 86.4 | 185 |
| 0026319 | 2 X 0.75 | 5.7 | 15 | 44 |
| 0026320 | 3 G 0.75 | 6.2 | 22 | 55 |
| 0026321 | 4 G 0.75 | 6.8 | 29 | 67 |
| 0026322 | 5 G 0.75 | 7.4 | 37 | 80 |
| 0026323 | 7 G 0.75 | 8.9 | 51 | 109 |
| 0026324 | 12 G 0.75 | 10.6 | 87 | 172 |
| 0026326 | 18 G 0.75 | 12.7 | 130 | 247 |
| 0026327 | 25 G 0.75 | 15.2 | 181 | 346 |
| 0026330 | 2 X 1.0 | 6.1 | 20 | 52 |
| 0026331 | 3 G 1.0 | 6.6 | 29 | 66 |
| 0026332 | 4 G 1.0 | 7.3 | 39 | 82 |
| 0026333 | 5 G 1.0 | 8 | 48 | 97 |
| 0026334 | 7 G 1.0 | 9.6 | 67 | 117 |
| 0026335 | 12 G 1.0 | 11.4 | 115 | 211 |
| 0026338 | 18 G 1.0 | 13.9 | 173 | 310 |
| 0026339 | 25 G 1.0 | 16.4 | 240 | 426 |
| 0026341 | 34 G 1.0 | 18.9 | 326.4 | 571 |
| 0026342 | 41 G 1.0 | 20.6 | 394 | 684 |
| 0026343 | 50 G 1.0 | 22.3 | 480 | 822 |
| 0026344 | 65 G 1.0 | 25.4 | 624 | 1058 |
| 0026349 | 2 X 1.5 | 6.8 | 29 | 68 |
| 0026350 | 3 G 1.5 | 7.4 | 43.2 | 86 |
| 0026351 | 4 G 1.5 | 8.1 | 58 | 106 |
| 0026352 | 5 G 1.5 | 9.1 | 72 | 131 |
| 0026353 | 7 G 1.5 | 10.9 | 101 | 178 |
| 0026354 | 12 G 1.5 | 12.9 | 173 | 281 |
| 0026355 | 16 G 1.5 | 14.6 | 230 | 365 |
| 0026356 | 18 G 1.5 | 15.6 | 259 | 4 11 |
| 0026357 | 25 G 1.5 | 18.6 | 360 | 571 |
| 0026359 | 34 G 1.5 | 21.1 | 489.6 | 753 |
| 0026361 | 42 G 1.5 | 23 | 629 | 919 |
| 0026362 | 50 G 1.5 | 25 | 720 | 1093 |
| 0026370 | 3 G 2.5 | 9 | 72 | 135 |
| 0026371 | 4 G 2.5 | 10 | 96 | 168 |
| 0026372 | 5 G 2.5 | 11.2 | 120 | 206 |
| 0026373 | 7 G 2.5 | 13.6 | 168 | 286 |
| 0026374 | 12 G 2.5 | 16 | 288 | 453 |
| 0026375 | 14 G 2.5 | 17.2 | 336 | 525 |
| 0026381 | 4 G 4 | 11.7 | 160 | 252 |
| 0026382 | 5 G 4 | 13.1 | 200 | 309 |
| 0029200 | 1 G 6 | 6.4 | 60 | 84 |
| 0026383 | 4 G 6 | 13.9 | 230 | 377 |
| 0029210 | 1 G 10 | 7.7 | 100 | 141 |
| 0026385 | 4 G 10 | 17.6 | 384 | 614 |
| 0026386 | 5 G 10 | 19.6 | 480 | 751 |
| 0029220 | 1 G 16 | 9.2 | 160 | 198 |
| 0026387 | 4 G 16 | 21 | 615 | 851 |
