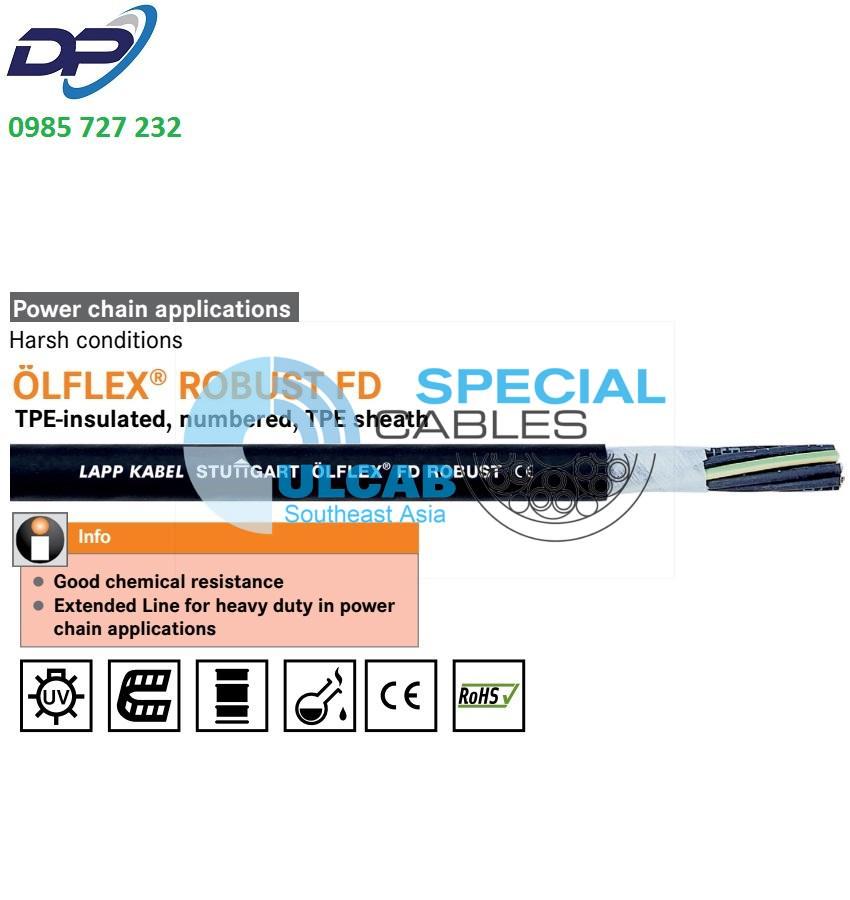

ÖLFLEX® ROBUST FD
Highly flexible, all-weather control cable with TPE sheath – resistant to a wide range of chemical media
ÖLFLEX® ROBUST FD – halogen-free power and control cable for use in power chains in harsh environmental conditions.
- Extended line for high loads in power chains
- Good chemical resistance
Benefits
- Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications
- Resistant to contact with bio-oils, fats, waxes and their emulsions with a plant, animal or synthetic basis
- Good resistance to ammonia compounds and biogases
- Good resistance to cold and hot water as well as water-soluble cleaning and cooling agents
- Suitable for frequent steam cleaning
- Low particle emission in flexing chain applications
Application range
- In power chains or mobile machine parts
- Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
- Food and beverage industry, especially for production and processing of milk and meat products
- For indoor and outdoor use
Product features
- Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres
- Highly resistant to oil and chemicals
- Ozone-, UV- and weather-resistant according to EN 50396 and HD 605 S2
- Hydrolysis-resistant to warm and hot water
- Good chemical resistance to ester-based hydraulic fluids
- Flexible at temperatures down to -40 °C
Norm references / approvals
- Based on VDE 0250 / 0285
- Clean room classification for individual items on request
- Certified resistance to disinfectant and cleaning solutions used in food and beverage industry
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire, tin-plated copper strands
- Core insulation made of TPE
- Cores twisted together in extremely short lay lengths
- Fleece wrapping
- Robust sheath made of special halogen-free TPE, black (RAL 9005)
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0026501 | 3 G 0.75 | 6.9 | 21.6 | 51 |
| 0026502 | 4 G 0.75 | 7.7 | 28.8 | 69 |
| 0026503 | 5 G 0.75 | 8.6 | 36 | 87 |
| 0026504 | 7 G 0.75 | 10.4 | 50.4 | 127 |
| 0026505 | 12 G 0.75 | 12.2 | 86.4 | 182 |
| 0026506 | 18 G 0.75 | 14.9 | 129.6 | 277 |
| 0026507 | 25 G 0.75 | 18.5 | 180 | 421 |
| 0026509 | 3 G 1.0 | 7.4 | 28.8 | 63 |
| 0026510 | 4 G 1.0 | 8.2 | 38.4 | 82 |
| 0026511 | 5 G 1.0 | 9.2 | 48 | 105 |
| 0026516 | 7 G 1.0 | 11. 1 | 67.2 | 157 |
| 0026517 | 12 G 1.0 | 13.3 | 115.2 | 226 |
| 0026518 | 18 G 1.0 | 15.9 | 172.8 | 345 |
| 0026521 | 3 G 1.5 | 8.9 | 43.2 | 90 |
| 0026522 | 4 G 1.5 | 9.9 | 57.6 | 118 |
| 0026523 | 5 G 1.5 | 11 | 72 | 149 |
| 0026524 | 7 G 1.5 | 13.4 | 100.8 | 233 |
| 0026525 | 12 G 1.5 | 15.8 | 172.8 | 322 |
| 0026526 | 18 G 1.5 | 18.9 | 259.2 | 494 |
| 0026527 | 25 G 1.5 | 23.5 | 360 | 695 |
| 0026531 | 4 G 2.5 | 11.8 | 96 | 181 |
| 0026532 | 5 G 2.5 | 12.9 | 120 | 228 |
| 0026533 | 7 G 2.5 | 15.7 | 168 | 329 |
| 0026534 | 12 G 2.5 | 18.7 | 288 | 491 |
| 0026541 | 4 G 4 | 13.8 | 153.6 | 261 |
| 0026551 | 4 G 6 | 14.8 | 230.4 | 356 |
| 0026561 | 4 G 10 | 20.1 | 384 | 596 |
| 0026571 | 4 G 16 | 23.8 | 614.4 | 910 |
