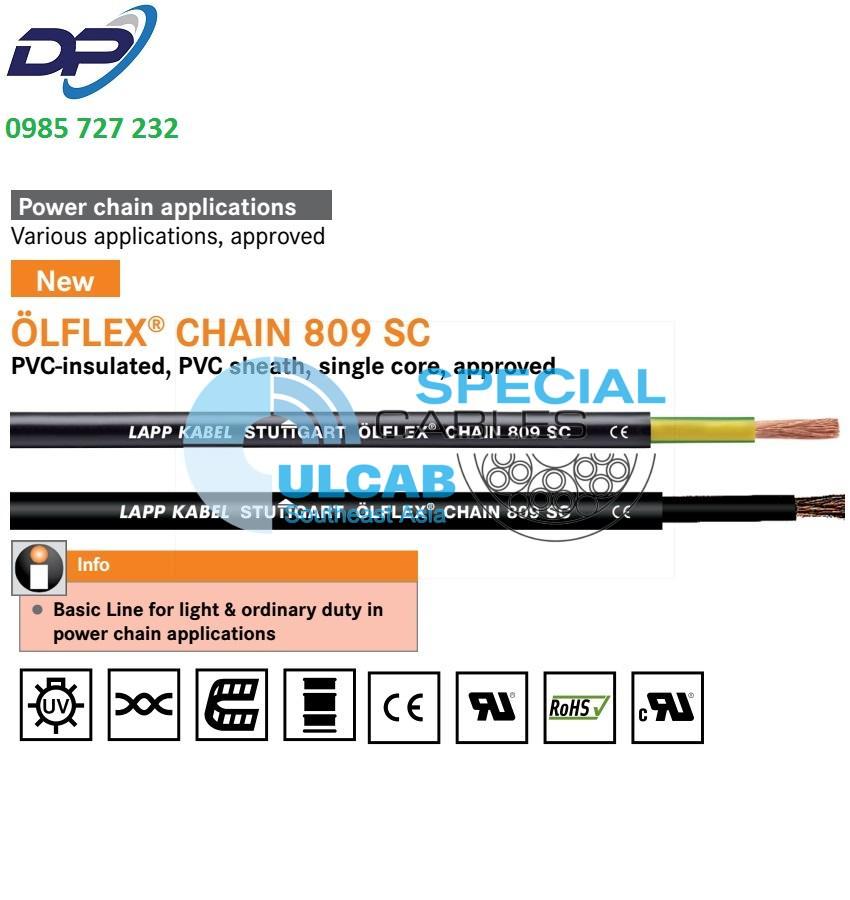

ÖLFLEX® CHAIN 809 SC
Highly flexible, single core cable with PVC insulation and PVC sheath – certified for North America
ÖLFLEX® CHAIN 809 SC – power and control cable for varied applications in power chains with UL/cUL AWM certification.
- Basic Line for light to medium stress in power chains
- AWM certification for USA and Canada
Benefits
- Multi-standard certification reduces part varieties and saves costs
- Easy to install
- Versatile application possibilities
- Also suitable for flexing outdoor use due to the temperature range
Application range
- In power chains or mobile machine parts
- For internal wiring of electric and electronic components in switch cabinets
- Where using multi-core connection cables may be problematic due to space requirements or minimum bending radii
- Specially designed for power circuits of servomotors driven by frequency converters
- Test systems in the automotive industry, vehicles and stationary fuel cell systems
Product features
- Designed for 2 million alternating bending cycles and travel distances up to 10 metres
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Oil-resistant according to DIN EN 50290-2-22 (TM54)
- Low-adhesive surface
Norm references / approvals
- Based on VDE 0250 / 0285
- UL-AWM-Style 10107
cRU AWM II A/B FT1 - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Fine-wire, bare copper conductor
- Core insulation: PVC
- PVC sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Black or green-yellow, other colours available on request
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Torsion application in WTG
- TW-0 & TW-1, refer to appendix T0
Minimum bending radius
- Flexing: 10 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- IEC: U0/U 600/1000 V
- UL & CSA: 600 V
Test voltage
- 4000 V
Protective conductor
- G = with PE conductor
- X = without PE conductor
Temperature range
- Flexing: 0°C to +70°C (UL: +90°C)
- Fixed installation: -40°C to +70°C (UL: +90°C)
Alternating bending cycles
- 2 million cycles
| Article number | Conductor cross-section (mm²) | Outer diameter (mm) | Core colour | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®CHAIN 809 SC | |||||
| 1062900 | 6 | 7.4 | green-yellow | 57.6 | 101 |
| 1062901 | 6 | 7.4 | black | 57.6 | 101 |
| 1062902 | 10 | 9 | green-yellow | 96 | 158 |
| 1062903 | 10 | 9 | black | 96 | 158 |
| 1062904 | 16 | 9.9 | green-yellow | 153.6 | 217 |
| 1062905 | 16 | 9.9 | black | 153.6 | 217 |
| 1062906 | 25 | 11.3 | green-yellow | 240 | 307 |
| 1062907 | 25 | 11.3 | black | 240 | 307 |
| 1062908 | 35 | 13.1 | green-yellow | 336 | 427 |
| 1062909 | 35 | 13.1 | black | 336 | 427 |
| 1062910 | 50 | 15.9 | green-yellow | 480 | 6 11 |
| 1062911 | 50 | 15.9 | black | 480 | 6 11 |
| 1062912 | 70 | 17.6 | green-yellow | 672 | 778 |
| 1062913 | 70 | 17.6 | black | 672 | 778 |
| 1062914 | 95 | 19.8 | green-yellow | 912 | 1015 |
| 1062915 | 95 | 19.8 | black | 912 | 1015 |
| 1062916 | 120 | 23 | green-yellow | 1,152.00 | 1296 |
| 1062917 | 120 | 23 | black | 1,152.00 | 1296 |
| 1062918 | 150 | 24.8 | green-yellow | 1,440.00 | 1597 |
| 1062919 | 150 | 24.8 | black | 1,440.00 | 1597 |
