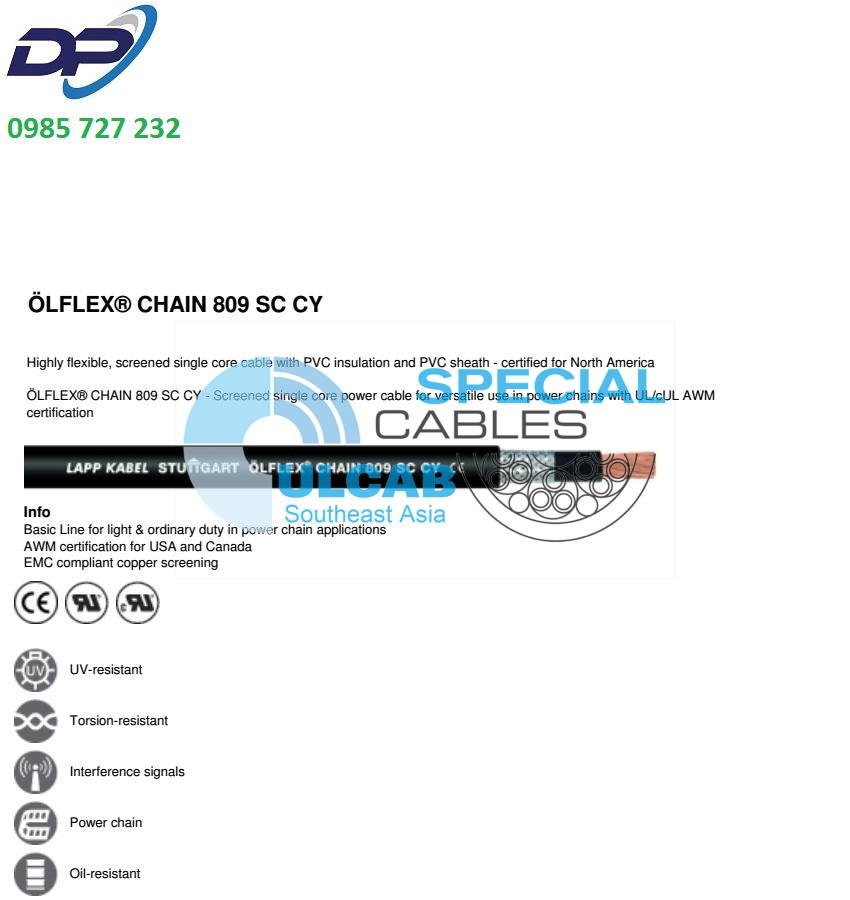

ÖLFLEX® CHAIN 809 SC CY
Highly flexible, shielded single core cable with PVC insulation and PVC sheath – certified for North America
ÖLFLEX® CHAIN 809 SC – power and control cable for varied applications in power chains with UL/cUL AWM certification.
- Basic Line for light to medium stress in power chains
- AWM certification for USA and Canada
- EMC-compliant copper shielding
Benefits
- Multi-standard certification reduces part varieties and saves costs
- Easy to install
- Versatile application possibilities
- Also suitable for flexing outdoor use due to the temperature range
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- In power chains or mobile machine parts
- For internal wiring of electric and electronic components in switch cabinets
- Where using multi-core, shielded motor cables may be problematic due to space requirements or minimum bending radii
- Specially designed for power circuits of servomotors driven by frequency converters
- Test systems in the automotive industry, vehicles and stationary fuel cell systems
Product features
- Designed for 2 million alternating bending cycles and travel distances up to 10 metres
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Oil-resistant according to DIN EN 50290-2-22 (TM54)
- Low-adhesive surface
- EMC-compliant
Norm references / approvals
- Based on VDE 0250 / 0285
- UL-AWM-Style 10107
cRU AWM II A/B FT1 - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Fine-wire, bare copper conductor
- Core insulation: PVC
- Fleece wrapping
- Tin-plated copper braiding
- Fleece wrapping
- PVC sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- black, other colours are available upon request
Insulation-specific contact resistance
- > 20 GOhm x cm
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Flexing: 10 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- IEC: U0/U 600/1000 V
- UL & CSA: 600 V
Test voltage
- 4000 V
Protective conductor
- X = without protective conductor
Temperature range
- Flexing: 0°C to +70°C (UL: +90°C)
- Fixed installation: -40°C to +70°C (UL: +90°C)
Alternating bending cycles
- 2 million cycles
| Article number | Conductor cross-section (mm²) | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® CHAIN 809 SC CY | ||||
| 1062940 | 6 | 8.1 | 76 | 126 |
| 1062941 | 10 | 9.7 | 122 | 190 |
| 1062942 | 16 | 10.6 | 180 | 250 |
| 1062943 | 25 | 12 | 268 | 351 |
| 1062944 | 35 | 14.8 | 392 | 519 |
| 1062945 | 50 | 16.8 | 544 | 686 |
| 1062946 | 70 | 18.5 | 766 | 885 |
| 1062947 | 95 | 20.9 | 1020 | 1135 |
| 1062948 | 120 | 24.1 | 1272 | 1443 |
| 1062949 | 150 | 26.1 | 1593 | 1788 |
| 1062950 | 185 | 28.4 | 1941 | 2177 |
| 1062951 | 240 | 31.9 | 2518 | 2671 |
| 1062952 | 300 | 33.5 | 3116 | 3299 |
