ÖLFLEX® FD 90
Highly flexible, single core cable with PVC insulation and PVC sheath – certified for North America

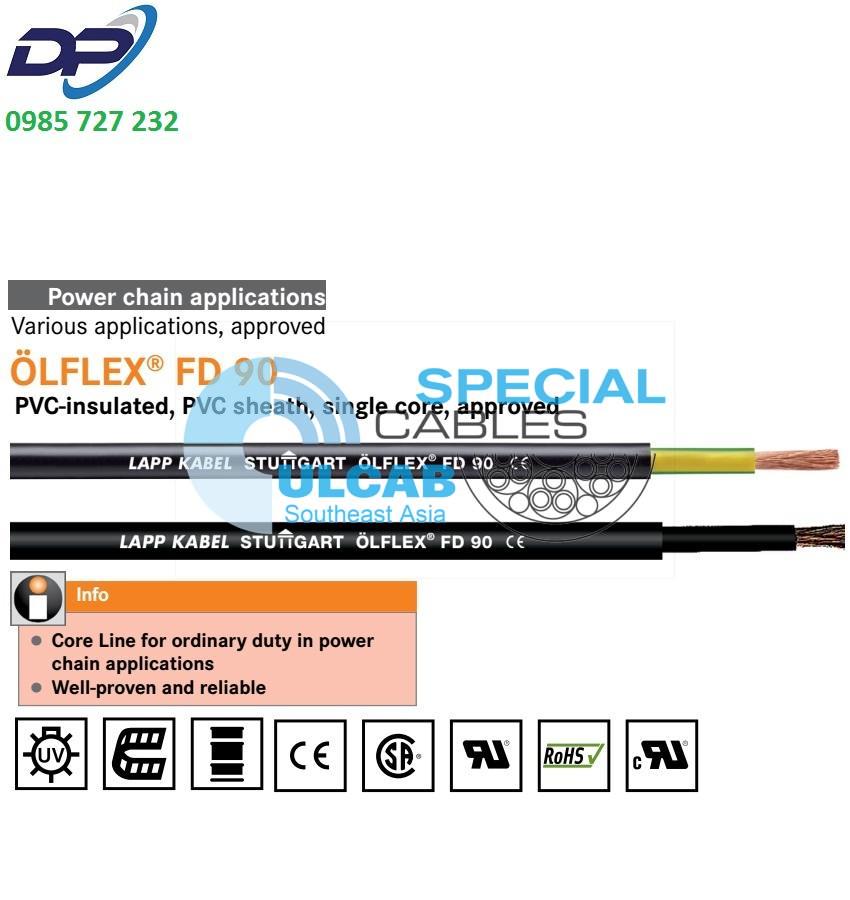

ÖLFLEX® FD 90 – oil-resistant power and control cable for versatile use in power chains with UL/CSA AWM certification.
- Core Line for average duty power chain applications
- Tried-and-tested and reliable
- AWM certification for USA and Canada
Benefits
- Multi-standard certification reduces part varieties and saves costs
- Versatile application possibilities
- Also suitable for flexing outdoor use due to the temperature range
- Also suitable for fixed installation where space is limited
Application range
- In power chains or mobile machine parts
- For internal wiring of electric and electronic components in switch cabinets
- Where using multi-core connection cables may be problematic due to space requirements or minimum bending radii
- Specially designed for power circuits of servomotors driven by frequency converters
- Test systems in the automotive industry, vehicles and stationary fuel cell systems
Product features
- Designed for 5 million alternating bending cycles and travel distances up to 10 metres
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
- High oil resistance
- Low-adhesive surface
Norm references / approvals
- Based on VDE 0250 / 0285
- UL-AWM-Style 10107, cRU AWM II A/B FT1 ≥150mm²
- CSA AWM IA/B IIA/B FT 1 ≤ 120 mm²
- UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Fleece wrapping
- Core insulation: PVC
- PVC sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Black or green-yellow, other colours available on request
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- Flexing: 7.5 x outer diameter
- Fixed installation: 3 x outer diameter
Nominal voltage
- IEC: U0/U 600/1000 V
- UL & CSA: 600 V
Test voltage
- 4000 V
Protective conductor
- G = with PE conductor
- X = without PE conductor
Temperature range
- Flexing: -5°C to +90°C (UL/CSA)
- Fixed installation: -40°C to +90°C (UL/CSA)
Alternating bending cycles
- 5 million cycles
| Article number | Conductor cross-section (mm²) | Outer diameter (mm) | Core colour | Copper index (kg/km) | Weight (kg/km) |
| 0026600 | 10 | 9 | green-yellow | 96 | 176 |
| 0026601 | 10 | 9 | black | 96 | 176 |
| 0026603 | 16 | 10.5 | green-yellow | 153.6 | 240 |
| 0026604 | 16 | 10.5 | black | 153.6 | 240 |
| 0026607 | 25 | 11.8 | green-yellow | 240 | 361 |
| 0026608 | 25 | 11.8 | black | 240 | 361 |
| 0026610 | 35 | 14.2 | green-yellow | 336 | 482 |
| 0026611 | 35 | 14.2 | black | 336 | 482 |
| 0026613 | 50 | 16.2 | green-yellow | 480 | 660 |
| 0026614 | 50 | 16.2 | black | 480 | 660 |
| 0026616 | 70 | 18.3 | green-yellow | 672 | 898 |
| 0026617 | 70 | 18.3 | black | 672 | 898 |
| 0026619 | 95 | 19.8 | green-yellow | 912 | 1179 |
| 0026620 | 95 | 19.8 | black | 912 | 1179 |
| 0026622 | 120 | 23.4 | green-yellow | 1,152.00 | 1521 |
| 0026623 | 120 | 23.4 | black | 1,152.00 | 1521 |
| 0026625 | 150 | 25.1 | green-yellow | 1,440.00 | 1739 |
| 0026626 | 150 | 25.1 | black | 1,440.00 | 1739 |
| 0026628 | 185 | 28.1 | green-yellow | 1,776.00 | 2305 |
| 0026629 | 185 | 28.1 | black | 1,776.00 | 2305 |
| 0026634 | 240 | 31.6 | green-yellow | 2,304.00 | 2944 |
| 0026635 | 240 | 31.6 | black | 2,304.00 | 2944 |
| 0026640 | 300 | 33.5 | green-yellow | 2,880.00 | 3545 |
| 0026641 | 300 | 33.5 | black | 2,880.00 | 3545 |
■ Accessories
▯ SILVYN®CHAIN cable protection and guiding systems
