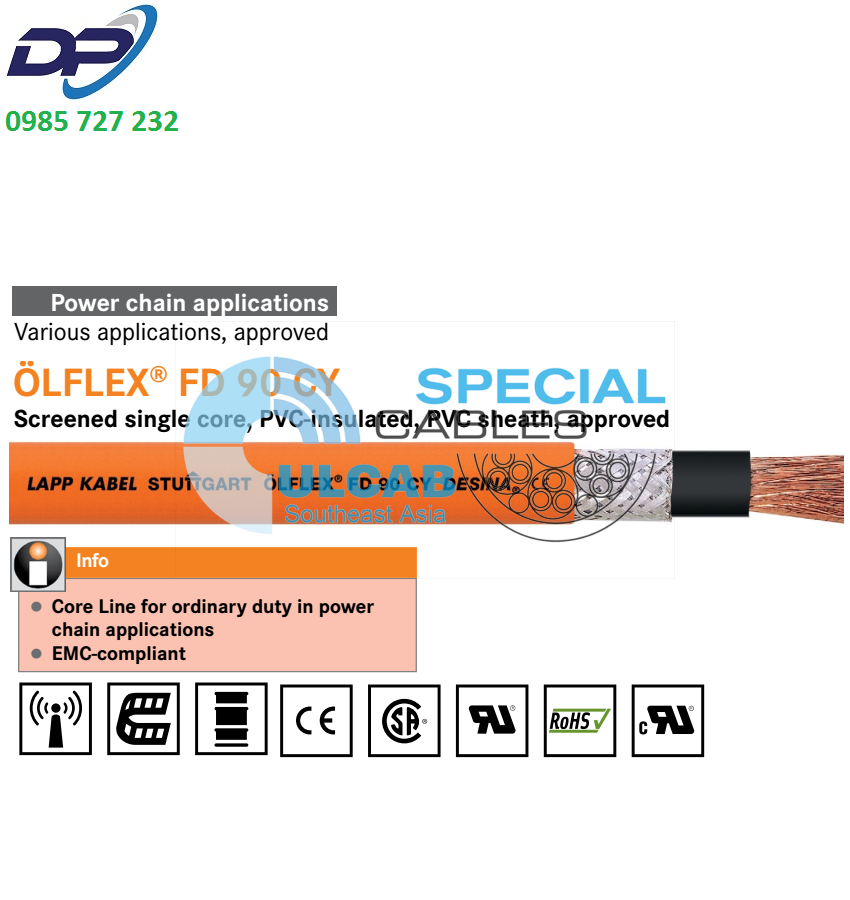

ÖLFLEX® FD 90 CY
Highly flexible, shielded single core cable with PVC insulation and PVC sheath – certified for North America
ÖLFLEX® FD 90 CY – oil-resistant and shielded power and control cable for versatile use in power chains, UL/CSA AWM.
- Core Line for average duty power chain applications
- AWM certification for USA and Canada
- EMC-compliant copper shielding
Benefits
- Multi-standard certification reduces part varieties and saves costs
- For various applications
- Also suitable for fixed installation where space is limited
- Copper shielding complies with EMC requirements and protects against electromagnetic interference
Application range
- In power chains or mobile machine parts
- For internal wiring of electric and electronic components in switch cabinets
- Specially designed for power circuits of servomotors driven by frequency converters
- Where using multi-core, shielded motor cables may be problematic due to space requirements or minimum bending radii
- Test systems in the automotive industry, vehicles and stationary fuel cell systems
Product features
- Designed for 5 million alternating bending cycles and travel distances up to 10 metres
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
- High oil resistance
- Low-adhesive surface
- EMC-compliant
Norm references / approvals
- Based on VDE 0250 / 0285
- UL-AWM-Style 10107, cRU AWM II A/B FT1 ≥150mm²
- CSA AWM IA/B IIA/B FT 1 ≤ 120 mm²
- UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Fleece wrapping
- Core insulation: PVC
- Tin-plated copper braiding
- PVC sheath, orange (RAL 2003)
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- black, other colours are available upon request
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 3 x outer diameter
Nominal voltage
- IEC: U0/U 600/1000 V
- UL & CSA: 600 V
Test voltage
- 4000 V
Protective conductor
- X = without protective conductor
Temperature range
- Flexing: -5°C to +90°C (UL/CSA)
- Fixed installation: -40°C to +90°C (UL/CSA)
Alternating bending cycles
- 5 million cycles
| Article number | Conductor cross-section (mm²) | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0026651 | 10 | 9.7 | 127.6 | 227 |
| 0026653 | 16 | 11.2 | 186.2 | 297 |
| 0026655 | 25 | 12.5 | 257.8 | 410 |
| 0026657 | 35 | 15.1 | 400.7 | 607 |
| 0026659 | 50 | 17. 1 | 554.8 | 808 |
| 0026661 | 70 | 19.4 | 775.6 | 1081 |
| 0026663 | 95 | 20.9 | 1,028.10 | 1382 |
| 0026665 | 120 | 24.5 | 1,282.40 | 1752 |
| 0026667 | 150 | 26.2 | 1,410.40 | 1924 |
| 0026669 | 185 | 29.2 | 1,935.00 | 26 11 |
| 0026671 | 240 | 32.9 | 2,526.00 | 3372 |
| 0026673 | 300 | 34.8 | 3,128.80 | 4105 |
■ Accessories
▯ SKINTOP® MS-M BRUSH
▯ SILVYN®CHAIN cable protection and guiding systems
