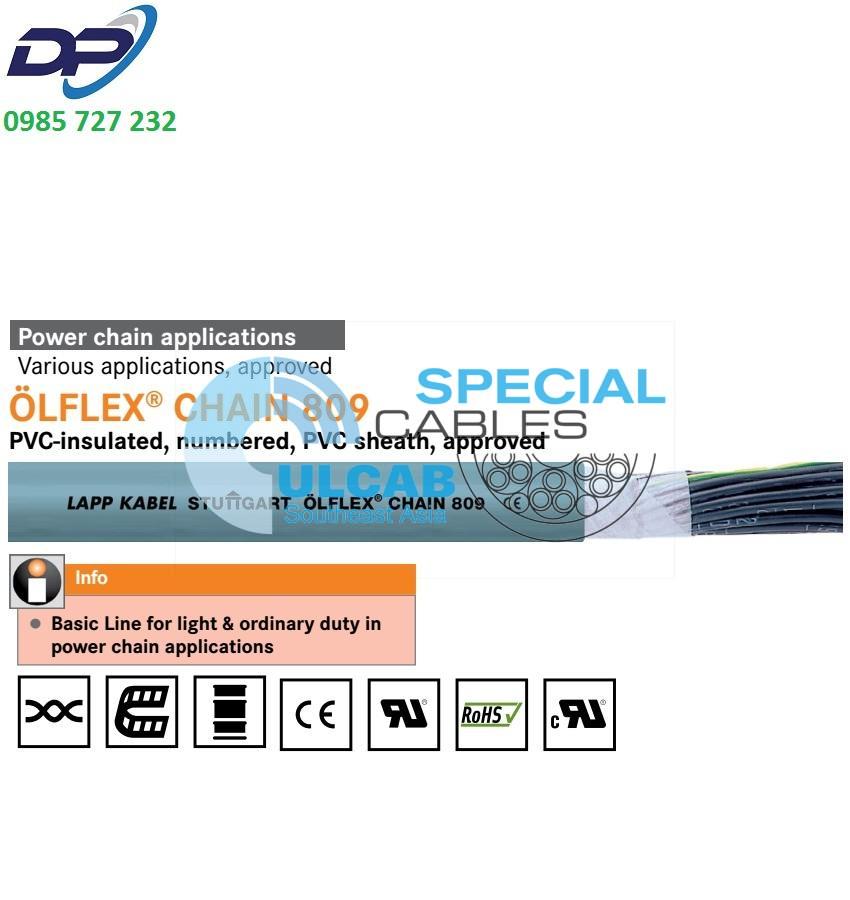

ÖLFLEX® CHAIN 809
Highly flexible control cable with PVC core insulation and PVC sheath – certified for North America
ÖLFLEX® CHAIN 809 – power and control cable for versatile use in power chains with UL/cUL AWM certification.
- Basic Line for light to medium stress in power chains
- AWM certification for USA and Canada
Benefits
- Good combination of quality and price
- Compact design
- Multi-standard certification reduces part varieties and saves costs
- Ideal for export-oriented machinery and equipment manufacturers
Application range
- In power chains or mobile machine parts
- In dry, damp and wet interiors
- Suitable for use in measuring, control and regulating circuits
- Wiring machines, devices, and control cabinets
- Only for outdoor use within the indicated operating temperature range and with UV-protection
Product features
- Designed for 2 million alternating bending cycles and travel distances up to 10 metres
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Oil-resistant according to DIN EN 50290-2-22 (TM54)
- Low-adhesive surface
Norm references / approvals
- UL AWM Style 20886
- cUL AWM II A/B FT1
- UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Fine-wire, bare copper strand
- Core insulation: PVC
- Cores twisted in layers
- Fleece wrapping
- PVC sheath, grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Torsion application in WTG
- TW-0 & TW-1, refer to appendix T0
Minimum bending radius
- For flexible use:
Chains in self-supporting non-gliding arrangements: 10 x outer diameter
In chains in gliding arrangements: 12 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- VDE: U0/U: 300/500 V
- UL & CSA: 1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: VDE 0°C to +70°C UL 0°C to +80°C
- Fixed installation: VDE -40°C to +70°C; UL/CSA -40°C to +80°C;
Alternating bending cycles
- 2 million cycles
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1026700 | 2 X 0.5 | 5.2 | 10 | 40 |
| 1026701 | 3 G 0.5 | 5.5 | 15 | 48 |
| 1026702 | 4 G 0.5 | 6 | 20 | 58 |
| 1026703 | 5 G 0.5 | 6.5 | 24 | 67 |
| 1026704 | 7 G 0.5 | 7.7 | 34 | 88 |
| 1026705 | 12 G 0.5 | 9.2 | 58 | 136 |
| 1026706 | 18 G 0.5 | 11 | 87.00 | 195 |
| 1026707 | 25 G 0.5 | 13.3 | 120.00 | 274 |
| 1026708 | 2 X 0.75 | 5.6 | 15.00 | 49 |
| 1026709 | 3 G 0.75 | 6 | 22.00 | 60 |
| 1026710 | 4 G 0.75 | 6.5 | 29.00 | 73 |
| 1026711 | 5 G 0.75 | 7. 1 | 37.00 | 86 |
| 1026712 | 7 G 0.75 | 8.5 | 51 | 117 |
| 1026713 | 12 G 0.75 | 10.3 | 87 | 181 |
| 1026714 | 18 G 0.75 | 12.2 | 130.00 | 259 |
| 1026715 | 25 G 0.75 | 14.8 | 181.00 | 363 |
| 1026716 | 2 X 1.0 | 5.9 | 19.00 | 58 |
| 1026717 | 3 G 1.0 | 6.3 | 29.00 | 72 |
| 1026718 | 4 G 1.0 | 6.9 | 39.00 | 88 |
| 1026719 | 5 G 1.0 | 7.5 | 48.00 | 104 |
| 1026720 | 7 G 1.0 | 9 | 67.00 | 142 |
| 1026721 | 12 G 1.0 | 10.9 | 115.00 | 221 |
| 1026722 | 18 G 1.0 | 13.2 | 173.00 | 324 |
| 1026723 | 25 G 1.0 | 15.7 | 240.00 | 445 |
| 1026724 | 2 X 1.5 | 6.5 | 29 | 74 |
| 1026725 | 3 G 1.5 | 6.9 | 43.2 | 93 |
| 1026726 | 4 G 1.5 | 7.6 | 58 | 114 |
| 1026727 | 5 G 1.5 | 8.5 | 72 | 139 |
| 1026728 | 7 G 1.5 | 10.3 | 101 | 189 |
| 1026729 | 12 G 1.5 | 12.3 | 173 | 295 |
| 1026730 | 18 G 1.5 | 14.9 | 259 | 429 |
| 1026731 | 25 G 1.5 | 17.9 | 360 | 597 |
| 1026732 | 3 G 2.5 | 8.4 | 72 | 145 |
| 1026733 | 4 G 2.5 | 9.3 | 96 | 179 |
| 1026734 | 7 G 2.5 | 12.7 | 168 | 218 |
| 1026737 | 4 G 4 | 11. 1 | 160 | 266 |
