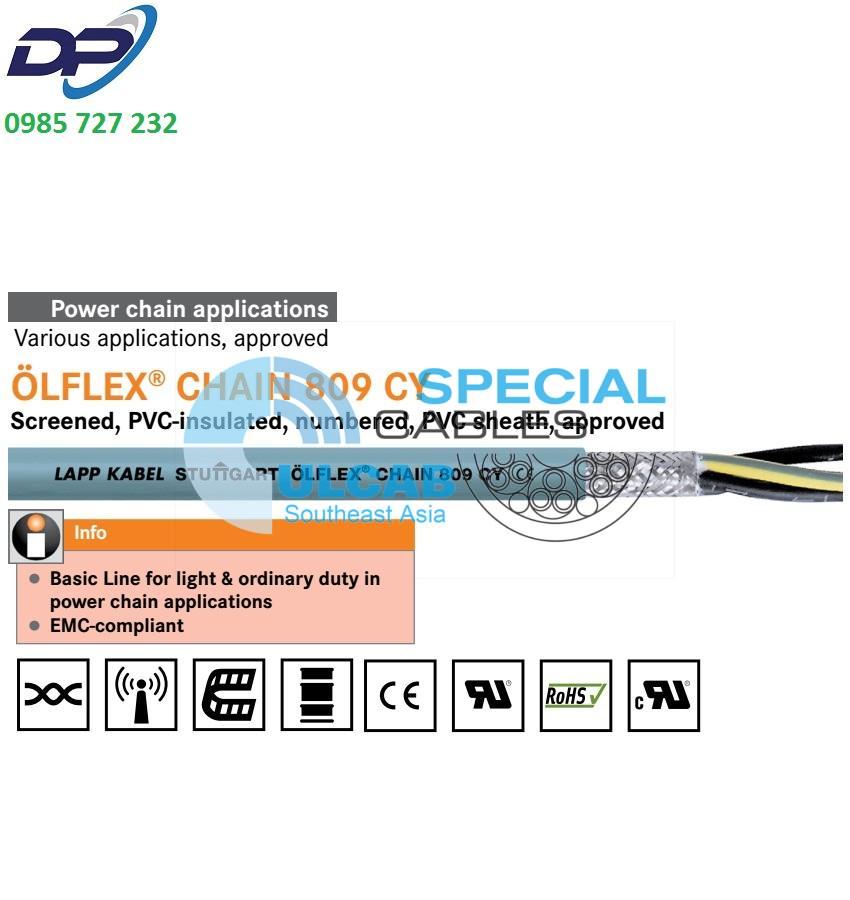

ÖLFLEX® CHAIN 809 CY

Highly flexible, shielded control cable with PVC core insulation and PVC sheath – certified for North America

ÖLFLEX® CHAIN 809 CY – shielded power and control cable for versatile use in power chains with UL/cUL AWM certification.

Basic Line for light to medium stress in power chains
AWM certification for USA and Canada
EMC-compliant copper shielding

product information (PDF)

Benefits

Good combination of quality and price
Thin and light, without inner sheath
Multi-standard certification reduces part varieties and saves costs
Ideal for export-oriented machinery and equipment manufacturers
Copper shielding complies with EMC requirements and protects against electromagnetic interference

Application range

In power chains or mobile machine parts
In EMC-sensitive environments
Suitable for use in measuring, control and regulating circuits
Wiring machines, devices, and control cabinets
Only for outdoor use within the indicated operating temperature range and with UV-protection

Product features

Designed for 2 million alternating bending cycles and travel distances up to 10 metres
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2
Oil-resistant according to DIN EN 50290-2-22 (TM54)
Low-adhesive surface

Norm references / approvals

UL AWM Style 20886
cUL AWM II A/B FT1
UL File No. E63634
For use in power chains: Please comply with assembly guideline appendix T3

Design

Fine-wire, bare copper strand
Core insulation: PVC
Cores twisted in layers
Fleece wrapping
Tin-plated copper braiding
PVC sheath, grey (RAL 7001)

Classification

ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable

Core identification code

Black with white numbers acc. to VDE 0293-1

Conductor design

Fine wire according to VDE 0295 class 5 / IEC 60228 class 5

Torsion application in WTG

TW-0 & TW-1, refer to appendix T0

Minimum bending radius

For flexible use:
Chains in self-supporting non-gliding arrangements: 10 x outer diameter
In chains in gliding arrangements: 12 x outer diameter
Fixed installation: 4 x outer diameter

Nominal voltage

VDE: U₀/U: 300/500 V
UL & CSA: 1000 V

Test voltage

Core/Core: 4000 V
Core/Shield: 2000 V

Protective conductor

G = with GN-YE protective conductor
X = without protective conductor

Temperature range

Flexing: VDE 0°C to +70°C UL 0°C to +80°C
Fixed installation: VDE -40°C to +70°C; UL/CSA -40°C to +80°C;

Alternating bending cycles

2 million cycles

Article number	Number of cores and mm² per conductor	Outer diameter (mm)	Copper index (kg/km)	Weight (kg/km)
1026751	2 X 0.5	5.8	36	45
1026752	3 G 0.5	6.1	43	59
1026753	4 G 0.5	6.6	49	83
1026754	5 G 0.5	7. 1	57	96
1026755	7 G 0.5	8.5	69	136
1026756	12 G 0.5	10	104	200
1026757	18 G 0.5	11.8	141.00	275
1026758	25 G 0.5	14.1	211.00	350
1026759	2 X 0.75	6.2	43.00	56
1026760	3 G 0.75	6.6	52.00	70
1026761	4 G 0.75	7. 1	61.00	95
1026762	5 G 0.75	7.7	72.00	130
1026763	7 G 0.75	9.1	89	168
1026764	12 G 0.75	10.9	138	232
1026765	18 G 0.75	13	211.00	315
1026766	25 G 0.75	15.6	280.00	435
1026767	2 X 1.0	6.5	51.00	84
1026768	3 G 1.0	6.9	62.00	110
1026769	4 G 1.0	7.5	74.00	130
1026770	5 G 1.0	8.3	88.00	156
1026771	7 G 1.0	9.8	112.00	192
1026772	12 G 1.0	11.7	185.00	285
1026773	18 G 1.0	14	268.00	395
1026774	25 G 1.0	16.7	354.00	486
1026775	2 X 1.5	7. 1	65	97
1026776	3 G 1.5	7.5	82	125
1026777	4 G 1.5	8.4	100	165
1026778	5 G 1.5	9.1	119	193
1026779	7 G 1.5	10.9	154	245
1026780	12 G 1.5	13.3	268	365
1026781	18 G 1.5	15.7	373	553
1026782	25 G 1.5	18.7	530	734
1026783	3 G 2.5	9	118	188
1026784	4 G 2.5	10.1	147	236
1026785	7 G 2.5	13.5	253	340
1026788	4 G 4	11.9	248	305
