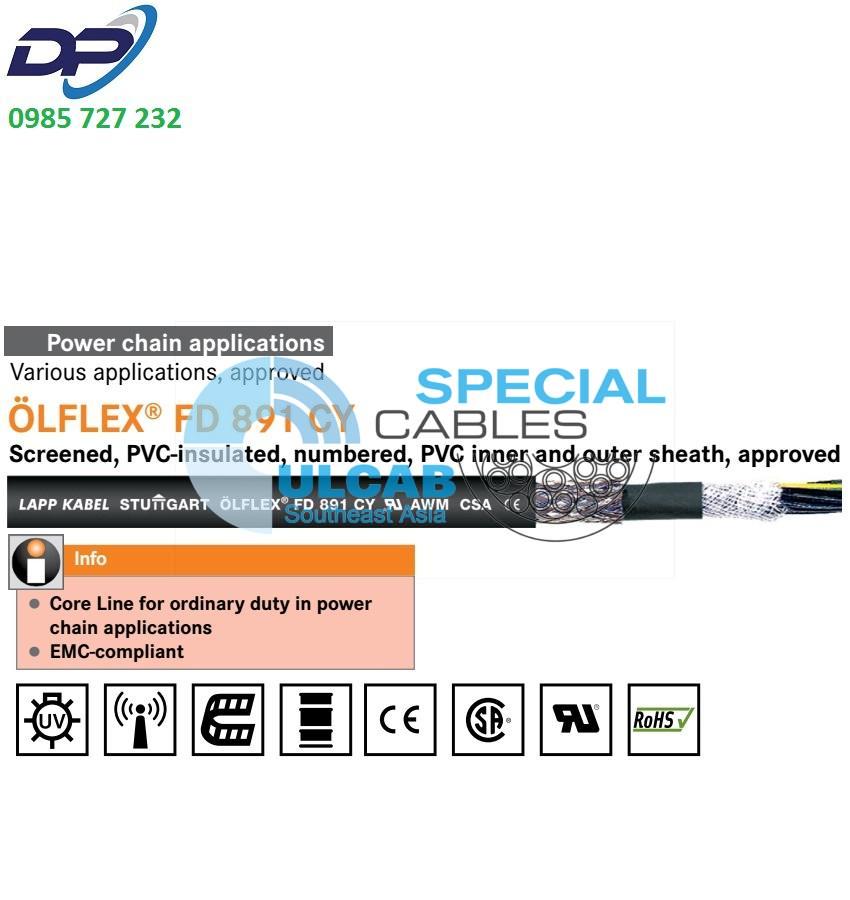

ÖLFLEX® FD 891 CY
Highly flexible, shielded control cable with PVC insulation and PVC inner and outer sheath – certified
ÖLFLEX® FD 891 CY – shielded power and control cable for versatile use in power chains with UL/CSA AWM certification.
- Core Line for average duty power chain applications
- AWM certification for USA and Canada
- EMC-compliant copper shielding
Benefits
- Multi-standard certification reduces part varieties and saves costs
- Ideal for export-oriented machinery and equipment manufacturers
- Also suitable for flexing outdoor use due to the temperature range
- Copper shielding complies with EMC requirements and protects against electromagnetic interference
Application range
- In power chains or mobile machine parts
- Suitable for use in measuring, control and regulating circuits
- Assembly and production lines, in all kinds of machines
- Machine tools
- Plant construction
Product features
- Designed for 5 million alternating bending cycles and travel distances up to 10 metres
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
- Oil-resistant
- Low-adhesive surface
- EMC-compliant
Norm references / approvals
- UL AWM Style 21098
- CSA AWM IA/B; IIA/B FT 1
- UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation: PVC
- Cores twisted in layers with short lay lengths
- Fleece wrapping
- Tin-plated copper braiding
- PVC sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Extra-fine wire according to VDE 0295, class 6 / IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- IEC: U0/U 300/500 V
- UL/CSA: 600 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: -5°C to +90°C (UL/CSA)
- Fixed installation: -40°C to +90°C (UL/CSA)
Alternating bending cycles
- 5 million cycles
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1027003 | 3 G 0.5 | 7.9 | 38.9 | 89 |
| 1027004 | 4 G 0.5 | 8.5 | 47.3 | 102 |
| 1027005 | 5 G 0.5 | 9.2 | 55.3 | 127 |
| 1027007 | 7 G 0.5 | 10.9 | 81.1 | 177 |
| 1027012 | 12 G 0.5 | 12.6 | 99.9 | 234 |
| 1027018 | 18 G 0.5 | 15.5 | 160.1 | 381 |
| 1027025 | 25 G 0.5 | 17.7 | 203.90 | 472 |
| 1027103 | 3 G 0.75 | 8.2 | 49.20 | 105 |
| 1027104 | 4 G 0.75 | 8.9 | 59.90 | 123 |
| 1027105 | 5 G 0.75 | 10 | 68.60 | 155 |
| 1027107 | 7 G 0.75 | 11.6 | 91.70 | 206 |
| 1027112 | 12 G 0.75 | 13.8 | 152.10 | 304 |
| 1027118 | 18 G 0.75 | 16.3 | 204.4 | 425 |
| 1027292 | 3 G 1.0 | 8.7 | 56 | 124 |
| 1027301 | 4 G 1.0 | 9.8 | 70.20 | 155 |
| 1027293 | 5 G 1.0 | 10.6 | 84.00 | 182 |
| 1027294 | 7 G 1.0 | 12.3 | 108.00 | 237 |
| 1027295 | 12 G 1.0 | 14.7 | 178.00 | 352 |
| 1027302 | 18 G 1.0 | 17.3 | 255.00 | 497 |
| 1027296 | 25 G 1.0 | 20.5 | 352.00 | 702 |
| 1027303 | 3 G 1.5 | 9.7 | 74.80 | 152 |
| 1027304 | 4 G 1.5 | 10.6 | 94.20 | 187 |
| 1027305 | 5 G 1.5 | 11.4 | 101.10 | 187 |
| 1027307 | 7 G 1.5 | 13.8 | 165.60 | 320 |
| 1027312 | 12 G 1.5 | 16.3 | 246.5 | 460 |
| 1027318 | 18 G 1.5 | 19.5 | 374.7 | 677 |
| 1027325 | 25 G 1.5 | 23.6 | 489.4 | 926 |
| 1027403 | 3 G 2.5 | 10.6 | 103.9 | 194 |
| 1027404 | 4 G 2.5 | 11.8 | 161.8 | 235 |
| 1027405 | 5 G 2.5 | 13 | 184.6 | 306 |
| 1027407 | 7 G 2.5 | 15.8 | 242.1 | 428 |
| 1027 412 | 12 G 2.5 | 18.2 | 403.5 | 590 |
| 1027503 | 3 G 4 | 12.4 | 157.5 | 275 |
| 1027504 | 4 G 4 | 14 | 218.1 | 365 |
| 1027507 | 7 G 4 | 18.3 | 373.2 | 629 |
| 1027604 | 4 G 6 | 16.1 | 304.70 | 500 |
| 1027624 | 4 G 16 | 27. 1 | 803.6 | 1357 |
| 1027634 | 4 G 25 | 31.3 | 1,180.40 | 1879 |
| 1027644 | 4 G 35 | 34.3 | 1,593.70 | 2360 |
