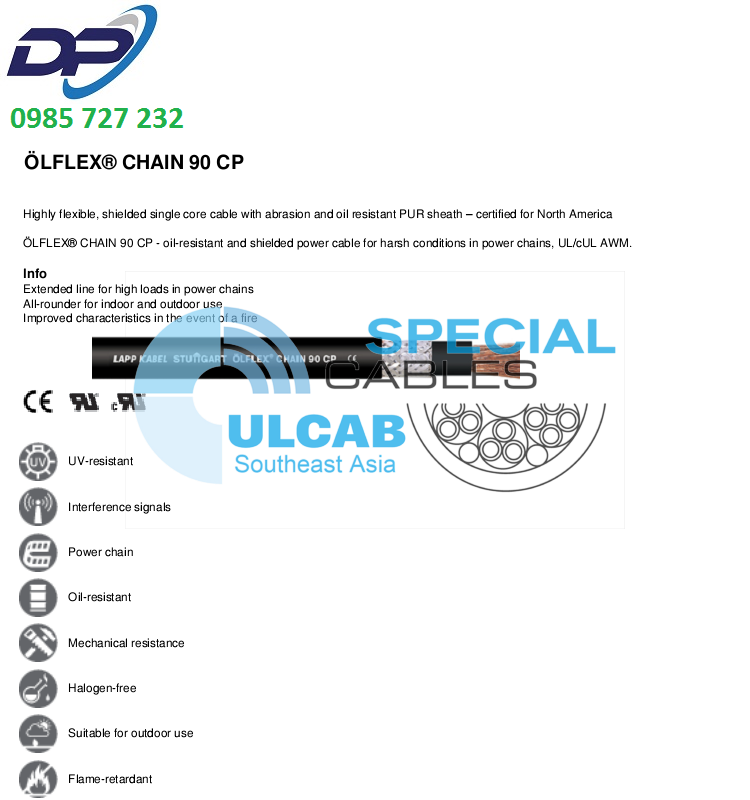

ÖLFLEX® CHAIN 90 CP
Highly flexible, shielded single core cable with abrasion and oil resistant PUR sheath – certified for North America
ÖLFLEX® CHAIN 90 CP – oil-resistant and shielded power cable for harsh conditions in power chains, UL/cUL AWM.
- Extended line for high loads in power chains
- All-rounder for indoor and outdoor use
- Improved characteristics in the event of a fire
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- Longer installation lengths thanks to low capacitance cable design
- Copper shielded complies with EMC requirements and protects against electromagnetic interference
Application range
- In power chains or mobile machine parts
- For internal wiring of electric and electronic components in switch cabinets
- Specially designed for power circuits of servomotors driven by frequency converters
- Where using multi-core, shielded motor cables may be problematic due to space requirements or minimum bending radii
- Test systems in the automotive industry, vehicles and stationary fuel cell systems
- For indoor and outdoor use
Product features
- Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres
- Fire behaviour:
– Halogen-free according to VDE 0472-815
– Flame retardant according to IEC
60332-1-2 or UL/cUL VW-1, FT1
– No flame propagation according to
IEC 60332-3-24 Cat. C or /-25 Cat. D - Good weather, UV and oil resistance
- Flexible at cold temperatures
- Low-capacitance design
- EMC-compliant
Norm references / approvals
- USA: UL AWM Style 11624, VW-1
Canada: cUL AWM I/II A, FT1 - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation made of TPE compound
- Fleece wrapping
- Tin-plated copper braiding
- Polyurethane sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- black, other colours are available upon request
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 3 x outer diameter
Nominal voltage
- IEC: U0/U 600/1000 V
- UL & CSA: 1000 V
Test voltage
- 4000 V
Temperature range
- Flexing: -35°C to +80°C
- Fixed installation: -50°C to +80°C
Alternating bending cycles
- 10 million cycles
| Article number | Conductor cross-section (mm²) |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® CHAIN 90 CP | ||||
| 1026547 | 1.5 | 7 | 23.8 | 60 |
| 1026548 | 2.5 | 7.6 | 41 | 90 |
| 1026549 | 4 | 7.9 | 58.8 | 100 |
| 1026550 | 6 | 8.4 | 81.3 | 120 |
| 1026551 | 10 | 9.8 | 123 | 180 |
| 1026553 | 16 | 11.3 | 187.7 | 240 |
| 1026555 | 25 | 13 | 280.60 | 340 |
| 1026557 | 35 | 14.2 | 398.90 | 480 |
| 1026559 | 50 | 16.8 | 551.70 | 610 |
| 1026561 | 70 | 19.1 | 773.20 | 880 |
| 1026563 | 95 | 21.6 | 1,036.60 | 1160 |
| 1026565 | 120 | 23.6 | 1,277.70 | 1380 |
| 1026567 | 150 | 25.9 | 1618 | 1670 |
| 1026569 | 185 | 28.5 | 1,957.30 | 1980 |
| 1026571 | 240 | 33.4 | 2,511.70 | 2600 |
| 1026573 | 300 | 35.3 | 3,117.00 | 3210 |
