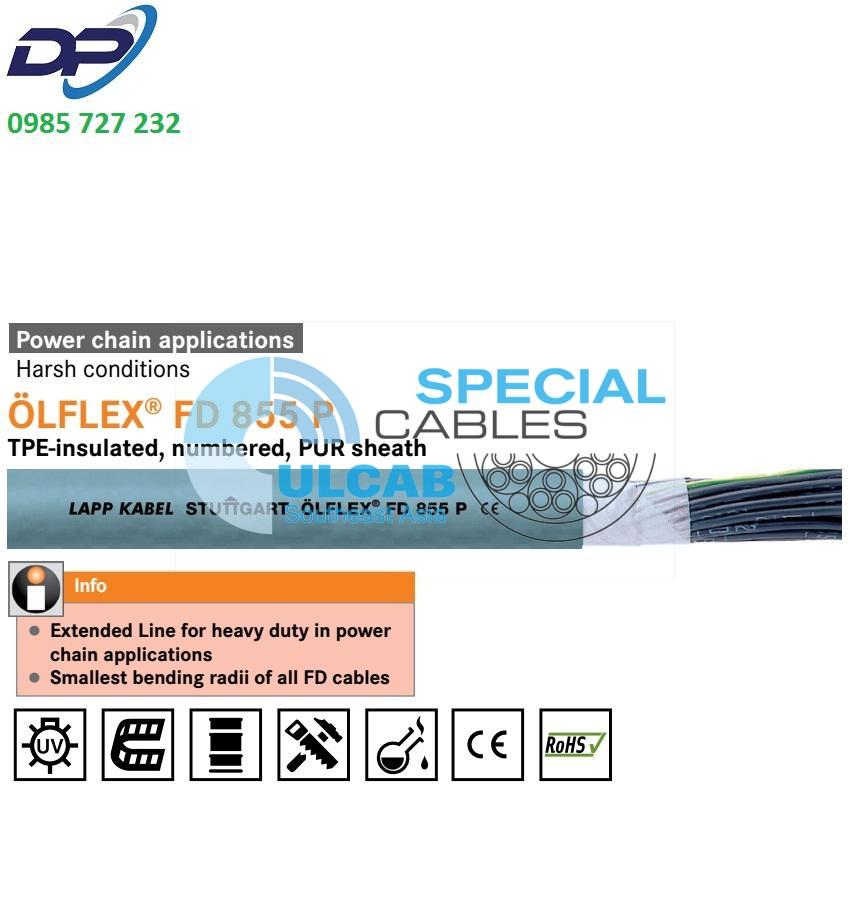

ÖLFLEX® FD 855 P
Halogen-free, highly flexible control cable with abrasion- and oil-resistant PUR sheath – certified
ÖLFLEX® FD 855 P – halogen-free power and control cable for use in power chains in harsh environmental conditions.
- Extended line for high loads in power chains
- Small bending radii – long distances
- UL/cUL certified for North America
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Multi-standard certification reduces part varieties and saves costs
- Low particle emission in flexing chain applications
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
Application range
- In power chains or mobile machine parts
- Particularly in wet areas of machine tools and transfer lines
- Assembly and production lines, in all kinds of machines
- For use in assembly & automatic placement machines
- For indoor and outdoor use
Product features
- Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres
- Halogen-free and flame-retardant (IEC 60332-1-2)
- Resistant to oil and drilling fluids according to IEC 61892-4, appendix D
- Flexible at temperatures down to -40 °C
- Abrasion-resistant and notch-resistant
- Low-adhesive surface
Norm references / approvals
- Based on VDE 0250 / 0285
- USA: UL AWM Style 21576
Canada: cUL AWM Style I/II A/B FT2 - UL File No. E63634
- Clean room classification for individual items on request
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation made of TPE
- Cores twisted together in extremely short lay lengths
- Fleece wrapping
- Polyurethane sheath, grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Minimum bending radius
- For flexible use: 5 x outer diameter
- Fixed installation: 3 x outer diameter
Nominal voltage
- IEC U0/U: 300/500 V
- UL: 1000 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: -40°C to +80°C
- Fixed installation: -50°C to +80°C
Alternating bending cycles
- 10 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0027530 | 2 X 0.5 | 5.1 | 10 | 34 |
| 0027531 | 3 G 0.5 | 5.5 | 14 | 40 |
| 0027532 | 5 G 0.5 | 6.6 | 24 | 55 |
| 0027533 | 6 G 0.5 | 7. 1 | 29 | 63 |
| 0027534 | 7 G 0.5 | 7.7 | 34 | 76 |
| 0027535 | 12 G 0.5 | 9.1 | 58 | 114 |
| 0027536 | 18 G 0.5 | 10.9 | 86.00 | 165 |
| 0027537 | 20 G 0.5 | 11.5 | 96.00 | 180 |
| 0027538 | 25 G 0.5 | 13.4 | 120.00 | 219 |
| 0027540 | 30 G 0.5 | 13.6 | 144.00 | 251 |
| 0027541 | 36 G 0.5 | 14.7 | 173.00 | 290 |
| 0027545 | 2 X 0.75 | 5.6 | 14.00 | 42 |
| 0027546 | 3 G 0.75 | 6 | 22 | 50 |
| 0027547 | 4 G 0.75 | 6.7 | 29.00 | 60 |
| 0027548 | 5 G 0.75 | 7.3 | 36.00 | 71 |
| 0027549 | 7 G 0.75 | 8.8 | 50.00 | 99 |
| 0027550 | 12 G 0.75 | 10.3 | 86.00 | 158 |
| 0027551 | 18 G 0.75 | 12.4 | 130.00 | 219 |
| 0027552 | 20 G 0.75 | 13.3 | 144.00 | 240 |
| 0027553 | 25 G 0.75 | 15.5 | 180.00 | 309 |
| 0027555 | 36 G 0.75 | 16.9 | 259.00 | 4 11 |
| 0027560 | 2 X 1.0 | 6 | 19.00 | 50 |
| 0027561 | 3 G 1.0 | 6.5 | 29.00 | 61 |
| 0027562 | 4 G 1.0 | 7.2 | 38.00 | 70 |
| 0027563 | 5 G 1.0 | 7.8 | 48 | 93 |
| 0027564 | 7 G 1.0 | 9.5 | 67 | 122 |
| 0027565 | 12 G 1.0 | 11.2 | 115 | 196 |
| 0027566 | 18 G 1.0 | 13.7 | 173 | 274 |
| 0027567 | 20 G 1.0 | 14.4 | 192 | 300 |
| 0027568 | 25 G 1.0 | 16.8 | 240 | 385 |
| 0027570 | 30 G 1.0 | 17 | 288 | 444 |
| 0027571 | 36 G 1.0 | 18.6 | 346 | 516 |
| 0027575 | 2 X 1.5 | 6.7 | 29 | 68 |
| 0027576 | 3 G 1.5 | 7.3 | 43 | 83 |
| 0027586 | 4 G 1.5 | 8 | 58 | 100 |
| 0027577 | 5 G 1.5 | 9 | 72.00 | 128 |
| 0027578 | 7 G 1.5 | 10.7 | 101 | 177 |
| 0027579 | 12 G 1.5 | 12.7 | 173.00 | 275 |
| 0027580 | 18 G 1.5 | 15.2 | 259.00 | 405 |
| 0027582 | 25 G 1.5 | 18.8 | 360 | 565 |
| 0027584 | 30 G 1.5 | 18.8 | 432 | 652 |
| 0027585 | 36 G 1.5 | 20.6 | 518 | 759 |
| 0027587 | 41 G 1.5 | 22.4 | 614 | 978 |
| 0027370 | 3 G 2.5 | 8.9 | 72 | 121 |
| 0027371 | 4 G 2.5 | 9.9 | 96 | 163 |
| 0027372 | 5 G 2.5 | 11 | 120 | 196 |
| 0027373 | 7 G 2.5 | 13.4 | 168 | 266 |
| 0027374 | 12 G 2.5 | 15.8 | 288 | 446 |
| 0027375 | 18 G 2.5 | 18.9 | 432 | 665 |
| 0027376 | 25 G 2.5 | 23.5 | 600 | 929 |
