ÖLFLEX® FD 855 CP
Halogen-free, highly flexible and shielded control cable with abrasion- and oil-resistant PUR sheath – certified

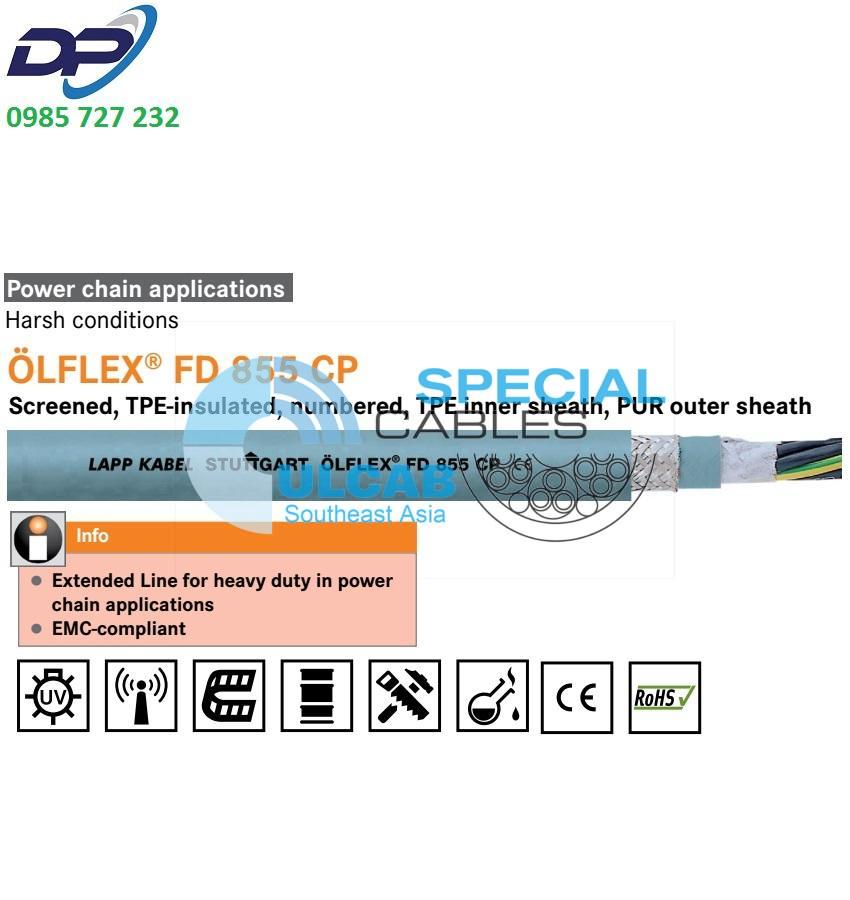

ÖLFLEX® FD 855 CP – halogen-free and shielded power and control cable for use in power chains in harsh environmental conditions
- Extended line for high loads in power chains
- Small bending radii – long distances
- UL/cUL certified for North America
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- Multi-standard certification reduces part varieties and saves costs
- Copper shielding complies with EMC requirements and protects against electromagnetic interference
Application range
- In power chains or mobile machine parts
- Particularly in wet areas of machine tools and transfer lines
- For use in assembly & automatic placement machines
- Assembly and production lines, in all kinds of machines
- For indoor and outdoor use
Product features
- Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres
- Halogen-free and flame-retardant (IEC 60332-1-2)
- Resistant to oil and drilling fluids according to IEC 61892-4, appendix D
- Flexible at temperatures down to -40 °C
- Low-adhesive surface
- EMC-compliant
Norm references / approvals
- Based on VDE 0250 / 0285
- USA: UL AWM Style 21576 also VW-1
Canada: cUL AWM Style I/II A/B FT1 - UL File No. E63634
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation made of TPE
- Cores twisted together in extremely short lay lengths
- Fleece wrapping
- Inner sheath made of TPE
- Tin-plated copper braiding
- Polyurethane sheath, grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Extra-fine wire according to VDE 0295, class 6 / IEC 60228 class 6
Minimum bending radius
- For flexible use:
7.5 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- IEC U0/U: 300/500 V
- UL: 1000 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: -40°C to +80°C
- Fixed installation: -50°C to +80°C
Alternating bending cycles
- 10 million cycles
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0027605 | 2 X 0.5 | 6.7 | 32 | 67 |
| 0027606 | 3 G 0.5 | 7. 1 | 40 | 79 |
| 0027607 | 5 G 0.5 | 8.2 | 53 | 107 |
| 0027608 | 6 G 0.5 | 8.7 | 59 | 121 |
| 0027609 | 7 G 0.5 | 9.5 | 67 | 132 |
| 0027610 | 12 G 0.5 | 10.9 | 97 | 190 |
| 0027611 | 18 G 0.5 | 12.9 | 131.00 | 245 |
| 0027612 | 20 G 0.5 | 13.5 | 156.00 | 281 |
| 0027613 | 25 G 0.5 | 15.6 | 190.00 | 367 |
| 0027615 | 30 G 0.5 | 15.8 | 222.00 | 408 |
| 0027616 | 36 G 0.5 | 16.9 | 251.00 | 459 |
| 0027620 | 2 X 0.75 | 7.2 | 40.00 | 79 |
| 0027621 | 3 G 0.75 | 7.6 | 47 | 96 |
| 0027622 | 4 G 0.75 | 8.3 | 58.00 | 112 |
| 0027623 | 5 G 0.75 | 8.9 | 65.00 | 126 |
| 0027624 | 7 G 0.75 | 10.6 | 85.00 | 165 |
| 0027625 | 12 G 0.75 | 12.1 | 127.00 | 231 |
| 0027626 | 18 G 0.75 | 14.6 | 198.00 | 330 |
| 0027628 | 25 G 0.75 | 17.7 | 259.00 | 459 |
| 0027630 | 36 G 0.75 | 19.5 | 348.00 | 605 |
| 0027635 | 2 X 1.0 | 7.6 | 45.00 | 93 |
| 0027636 | 3 G 1.0 | 8.1 | 55.00 | 109 |
| 0027637 | 4 G 1.0 | 8.8 | 68.00 | 126 |
| 0027638 | 5 G 1.0 | 9.6 | 81.00 | 147 |
| 0027639 | 7 G 1.0 | 11.3 | 106 | 196 |
| 0027640 | 12 G 1.0 | 13.2 | 175 | 292 |
| 0027641 | 18 G 1.0 | 15.9 | 242 | 418 |
| 0027643 | 25 G 1.0 | 19.5 | 329 | 575 |
| 0027645 | 30 G 1.0 | 19.6 | 377 | 635 |
| 0027646 | 36 G 1.0 | 21.2 | 467 | 758 |
| 0027649 | 2 X 1.5 | 8.3 | 58 | 115 |
| 0027650 | 3 G 1.5 | 8.9 | 76 | 139 |
| 0027661 | 4 G 1.5 | 9.8 | 91 | 156 |
| 0027651 | 5 G 1.5 | 10.8 | 111 | 198 |
| 0027652 | 7 G 1.5 | 12.5 | 145 | 254 |
| 0027653 | 12 G 1.5 | 14.9 | 242.00 | 416 |
| 0027654 | 18 G 1.5 | 17.4 | 346 | 564 |
| 0027656 | 25 G 1.5 | 21.4 | 486.00 | 811 |
| 0027659 | 36 G 1.5 | 23.4 | 655.00 | 1066 |
| 0027380 | 3 G 2.5 | 10.7 | 110 | 194 |
| 0027381 | 4 G 2.5 | 11.7 | 136 | 234 |
| 0027382 | 5 G 2.5 | 12.8 | 180 | 293 |
| 0027383 | 7 G 2.5 | 15.6 | 246 | 418 |
| 0027384 | 12 G 2.5 | 18 | 377 | 629 |
| 0027385 | 18 G 2.5 | 21.5 | 569 | 912 |
| 0027386 | 25 G 2.5 | 26.5 | 765 | 1266 |
■ Similar products
▯ ÖLFLEX® PETRO FD 865 CP
■ Accessories
▯ SILVYN® CHAIN cable protection and guiding systems
