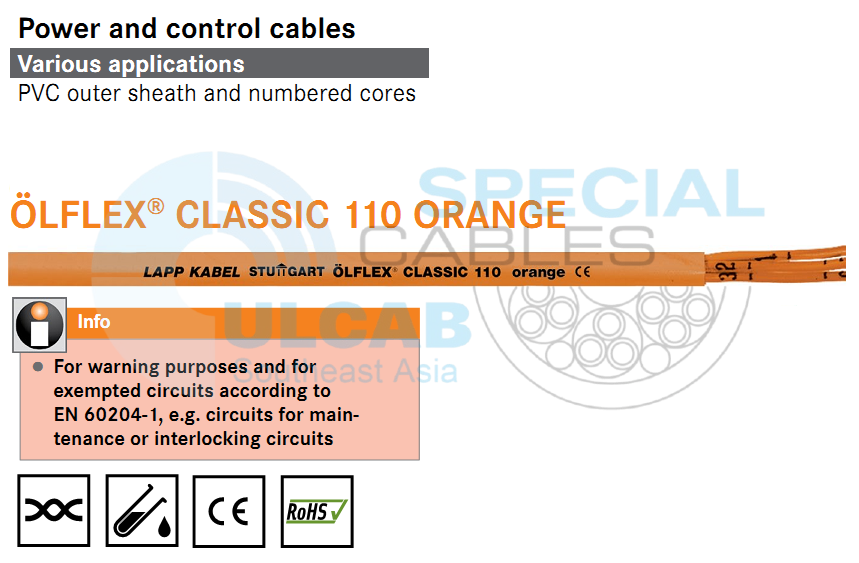

LAPP KABEL ÖLFLEX® CLASSIC 110 ORANGE
ÖLFLEX® CLASSIC 110 ORANGE – PVC control cable, flexible, orange cores, especially for warning purposes and exempted circuits, also for YSLY or YY
For warning purposes and for
exempted circuits according to EN 60204-1,
e.g. circuits for maintenance purposes
or interlocking circuits
Benefits
- Space-saving installation due to small cable diameters
- High electrical safety due to 4 kV test voltage
Application range
- According to EN 60204-1 (VDE 0113-1), conductors of control circuits that are supplied by an external power source and/or remain live when the main switch is deactivated must be orange
- Lighting and socket circuits for maintenance or repair purposes
- Undervoltage protection circuits
- Control circuits for locking
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on IEC 60227-5 and EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Orange cores with black numbers
- PVC sheath, orange (RAL 2003)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Orange cores with black numbers
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Torsion movement in WTG
- TW-0 & TW-1, refer to Appendix T0
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® CLASSIC 110 ORANGE | ||||
| 0019700 | 2 X1.0 | 5.7 | 19.2 | 53 |
| 0019701 | 3 G1.0 | 6.0 | 28.8 | 65 |
| 0019702 | 3 X1.0 | 6.0 | 28.8 | 65 |
| 0019706 | 4 G1.0 | 6.5 | 38.4 | 80 |
| 0019708 | 4 X1.0 | 6.5 | 38.4 | 80 |
| 0019709 | 5 G1.0 | 7.1 | 50.0 | 95 |
| 0019710 | 2 X1.5 | 6.3 | 29.0 | 68 |
| 0019711 | 3 G1.5 | 6.7 | 43.0 | 85 |
| 0019718 | 4 G1.5 | 7.2 | 58.0 | 105 |
| 0019720 | 5 G1.5 | 8.1 | 72.0 | 128 |
■ Similar products
▯ H07V-K
▯ Orange-coloured single cores
■ Accessories
▯ SKINTOP® CLICK
