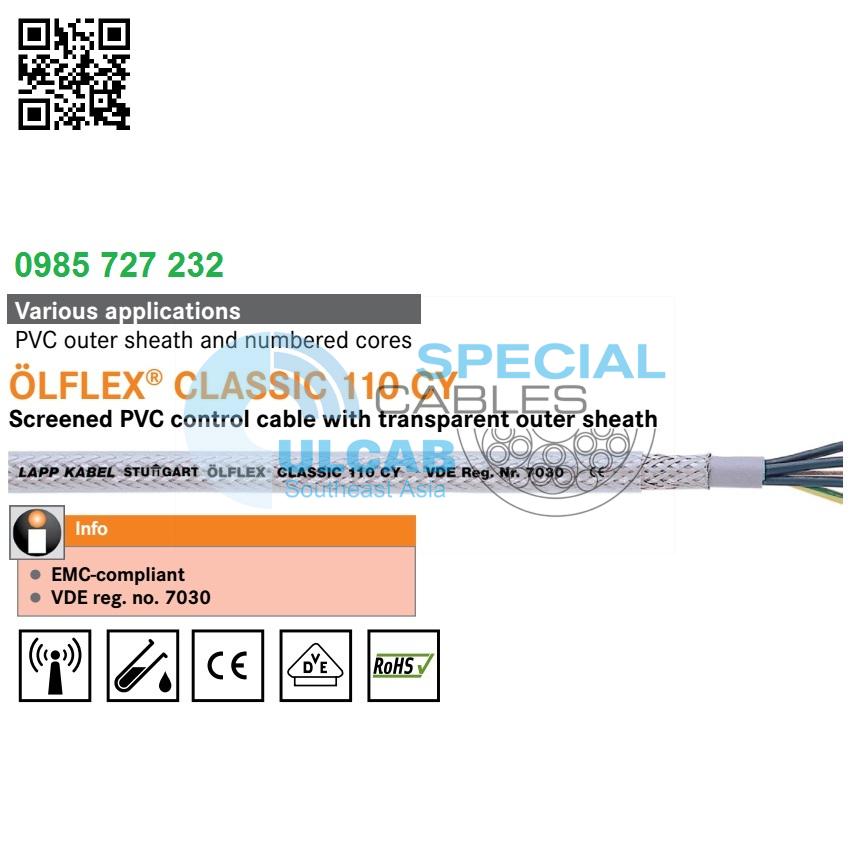

LAPP KABEL ÖLFLEX® CLASSIC 110 CY
Screened PVC control cable with transparent outer sheath
ÖLFLEX® CLASSIC 110 CY – PVC control cable, VDE-registered, shielded and flexible for varied applications, nominal voltage: 300/500V
- EMC-compliant
- VDE reg. no. 7030
Benefits
- Space-saving installation due to small cable diameters
- High electrical safety due to 4 kV test voltage
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Conveyor and transport systems
- In EMC-sensitive environments
(electromagnetic compatibility)
Product features
- Flame-retardant according to IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
- High level of screening
Low coupling resistance
(max. 250 Ω/km at 30 MHz)
Norm references / approvals
- VDE reg. no. 7030
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Cores twisted in layers
- PVC inner sheath, grey
- Tinned-copper braiding
- PVC sheath, transparent
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 110 CY | ||||
| 1135752 | 2 X0.5 | 7 | 41 | 75 |
| 1135003 | 3 G0.5 | 7,3 | 45,5 | 83 |
| 1135753 | 3 X0.5 | 7,3 | 45,5 | 83 |
| 1135004 | 4 G0.5 | 7,9 | 55 | 99 |
| 1135754 | 4 X0.5 | 7,9 | 55 | 99 |
| 1135005 | 5 G0.5 | 8,4 | 66 | 112 |
| 1135755 | 5 X0.5 | 8,4 | 66 | 112 |
| 1135007 | 7 G0.5 | 8,9 | 80,5 | 132 |
| 1135757 | 7 X0.5 | 8,9 | 80,5 | 132 |
| 1135012 | 12 G0.5 | 11,3 | 138,5 | 202 |
| 1135762 | 12 X0.5 | 11,3 | 138,5 | 202 |
| 1135018 | 18 G0.5 | 13,3 | 156,4 | 289 |
| 1135025 | 25 G0.5 | 15,2 | 250 | 378 |
| 1135030 | 30 G0.5 | 16,1 | 297 | 429 |
| 1135040 | 40 G0.5 | 18,2 | 343 | 542 |
| 1135802 | 2 X0.75 | 7,4 | 46 | 86 |
| 1135103 | 3 G0.75 | 7,9 | 57,9 | 100 |
| 1135803 | 3 X0.75 | 7,9 | 57,9 | 100 |
| 1135104 | 4 G0.75 | 8,4 | 64 | 115 |
| 1135804 | 4 X0.75 | 8,4 | 64 | 115 |
| 1135105 | 5 G0.75 | 8,9 | 77,4 | 130 |
| 1135805 | 5 X0.75 | 8,9 | 77,4 | 130 |
| 1135107 | 7 G0.75 | 9,7 | 102 | 161 |
| 1135807 | 7 X0.75 | 9,7 | 102 | 161 |
| 1135112 | 12 G0.75 | 12,3 | 177 | 247 |
| 1135812 | 12 X0.75 | 12,3 | 177 | 247 |
| 1135118 | 18 G0.75 | 14,5 | 243 | 356 |
| 1135818 | 18 X0.75 | 14,5 | 243 | 356 |
| 1135125 | 25 G0.75 | 16,6 | 307,3 | 465 |
| 1135134 | 34 G0.75 | 18,9 | 323,2 | 601 |
| 1135840 | 40 X0.75 | 20,5 | 369,4 | 734 |
| 1135141 | 41 G0.75 | 20,6 | 488 | 728 |
| 1135852 | 2 X1.0 | 7,9 | 56 | 98 |
| 1135203 | 3 G1.0 | 8,2 | 65,3 | 111 |
| 1135853 | 3 X1.0 | 8,2 | 65,3 | 111 |
| 1135204 | 4 G1.0 | 8,7 | 78,1 | 130 |
| 1135854 | 4 X1.0 | 8,7 | 78,1 | 130 |
| 1135205 | 5 G1.0 | 9,5 | 89,4 | 153 |
| 1135207 | 7 G1.0 | 10,2 | 113,3 | 185 |
| 1135212 | 12 G1.0 | 13,3 | 188,1 | 307 |
| 1135216 | 16 G1.0 | 14,6 | 216 | 390 |
| 1135218 | 18 G1.0 | 15,5 | 286 | 418 |
| 1135225 | 25 G1.0 | 17,5 | 388,5 | 544 |
| 1135234 | 34 G1.0 | 20,3 | 505 | 738 |
| 1135241 | 41 G1.0 | 22 | 578 | 864 |
| 1135250 | 50 G1.0 | 23,8 | 688 | 1011 |
| 1135902 | 2 X1.5 | 8,5 | 65 | 117 |
| 1135303 | 3 G1.5 | 8,9 | 83 | 136 |
| 1135903 | 3 X1.5 | 8,9 | 83 | 136 |
| 1135304 | 4 G1.5 | 9,6 | 100 | 163 |
| 1135904 | 4 X1.5 | 9,6 | 100 | 163 |
| 1135305 | 5 G1.5 | 10,3 | 125 | 188 |
| 1135905 | 5 X1.5 | 10,3 | 125 | 188 |
| 1135307 | 7 G1.5 | 11,3 | 149 | 237 |
| 1135907 | 7 X1.5 | 11,3 | 149 | 237 |
| 1135312 | 12 G1.5 | 14,8 | 280 | 393 |
| 1135318 | 18 G1.5 | 17,2 | 389 | 538 |
| 1135325 | 25 G1.5 | 20,1 | 535 | 745 |
| 1135334 | 34 G1.5 | 22,8 | 702 | 964 |
| 1135341 | 41 G1.5 | 24,7 | 844,6 | 1123 |
| 1135350 | 50 G1.5 | 27,1 | 1,006.0 | 1372 |
| 1135402 | 2 X2.5 | 9,9 | 112 | 165 |
| 1135403 | 3 G2.5 | 10,3 | 146 | 192 |
| 1135404 | 4 G2.5 | 11,3 | 167 | 233 |
| 1135405 | 5 G2.5 | 12,6 | 200 | 283 |
| 1135407 | 7 G2.5 | 13,9 | 288 | 371 |
| 1135412 | 12 G2.5 | 17,6 | 477,3 | 585 |
| 1135502 | 2 X4 | 11,4 | 120 | 247 |
| 1135504 | 4 G4 | 13,4 | 237 | 347 |
| 1135505 | 5 G4 | 14,7 | 280 | 413 |
| 1135602 | 2 X6 | 13,6 | 180 | 353 |
| 1135604 | 4 G6 | 15,8 | 318 | 485 |
| 1135605 | 5 G6 | 17,3 | 441 | 702 |
| 1135607 | 7 G6 | 18,8 | 530 | 950 |
| 1135702 | 2 X10 | 16,4 | 256 | 492 |
| 1135615 | 3 G10 | 17,4 | 362,4 | 507 |
| 1135614 | 4 G10 | 19 | 558 | 735 |
| 1135616 | 5 G10 | 21,3 | 595 | 847 |
| 1135617 | 7 G10 | 23,2 | 796 | 1039 |
| 1135622 | 2 X16 | 18,6 | 390 | 698 |
| 1135624 | 4 G16 | 22,2 | 804 | 1395 |
| 1135623 | 5 G16 | 24,4 | 935 | 1440 |
| 1135626 | 4 G25 | 26,9 | 1,161.0 | 1730 |
| 1135627 | 5 G25 | 30 | 1,400.0 | 2090 |
| 1135625 | 4 G35 | 30,2 | 1,543.0 | 2210 |
| 1135628 | 5 G35 | 33,2 | 1,901.0 | 2710 |
