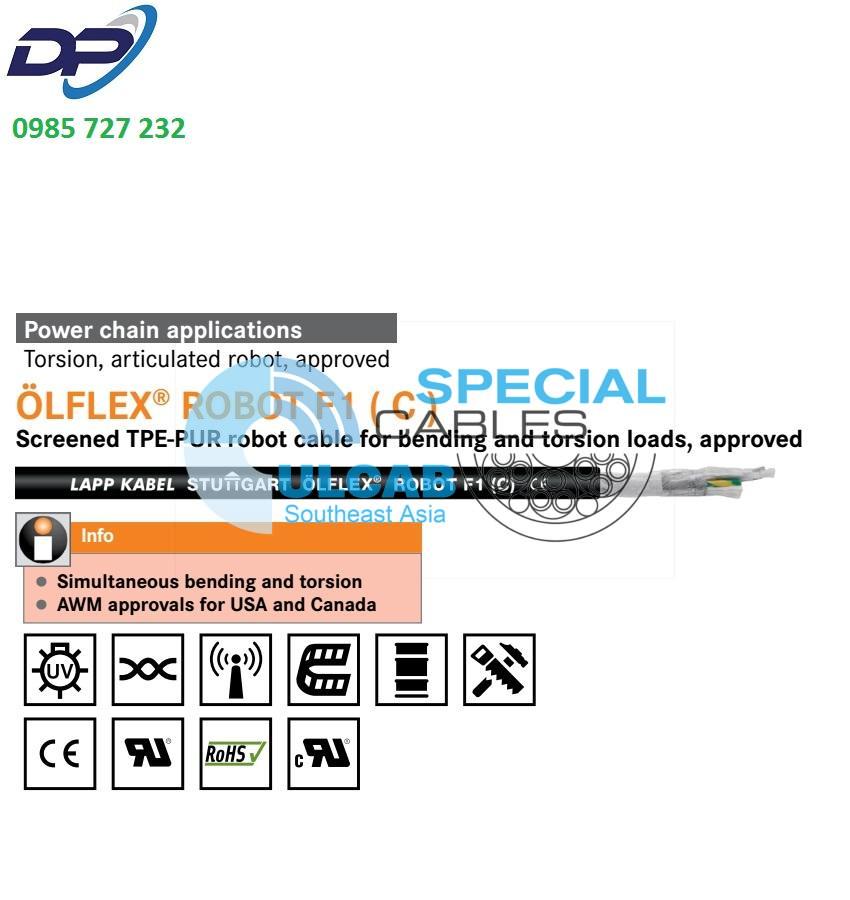

ÖLFLEX® ROBOT F1 ( C )
Shielded TPE-PUR robot cable for bending and torsion loads, certified
ÖLFLEX® ROBOT F1 (C) – shielded power and control cable for bending and torsional applications in harsh environmental conditions with UL/cUL AWM certification.
- Simultaneous bending and twisting
- Torsion angle up to +/- 180°/m
- AWM certification for USA and Canada
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Multi-standard certification reduces part varieties and saves costs
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
Application range
- Multi-axis articulated robot
- Automated handling equipment
- Industrial machinery and machine tools
- In power chains or mobile machine parts
- Plant construction
Product features
- Abrasion-resistant and notch-resistant
- Flame-retardant
- High oil resistance
- Resistant to cold temperatures
- Low-adhesive surface
Norm references / approvals
- UL AWM Style 20940
cUL AWM I/II A/B - UL File No. E213974
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand, 0.14 mm² -0.5 mm², made of tin-plated copper wires, bare.
- Core insulation made of TPE
- Cores (or core pairs) twisted in layers or bundles
- Wrapping: PTFE tape
- Braiding or wrapping of tin-plated copper wires
- Polyurethane sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Up to 0.34 mm²: Cores DIN 47100
- From 0.5 mm²: white cores with black printed numbers
Conductor design
- Extra-fine wire
Torsion
- Torsion load max. ± 180°/m
Minimum bending radius
- Flexible use: 10 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- IEC: up to 0.34 mm² 250 Vss.
0.5 – 2.5 mm² 300/500 V
UL/CSA up to 1.5 mm² 600 V,
from 2.5 mm² 1000 V
Test voltage
- Cores: Spark test 6 kV
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: -40°C to +80°C
Fixed installation: -50°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0029653 | 3 x 2 x 0,25 | 8 | 38 | 100 |
| 0029654 | 25 x 0,25 | 13.8 | 115 | 280 |
| 0029655 | 2 x 0,34 | 5.2 | 18 | 54 |
| 0029656 | 3 x 0,34 | 5.4 | 20 | 56 |
| 0029657 | 4 x 0,34 | 6.6 | 28 | 72 |
| 0029658 | 5 x 2 x 0,34 | 10.2 | 69 | 158 |
| 0029689 | 12 G 1,5 | 15.4 | 230 | 380 |
| 0029690 | 18 G 1,5 | 18.5 | 340 | 550 |
| 0029664 | 4 G 1,5 | 8.8 | 75.1 | 120 |
| 0029665 | 4 G 2,5 | 10.3 | 116 | 200 |
| 0029691 | 4 G 1,5 + (2 x 1,0) | 11 | 116 | 213 |
| 0029692 | 4 G 2,5 + (2 x 1,0) | 12 | 150 | 270 |
