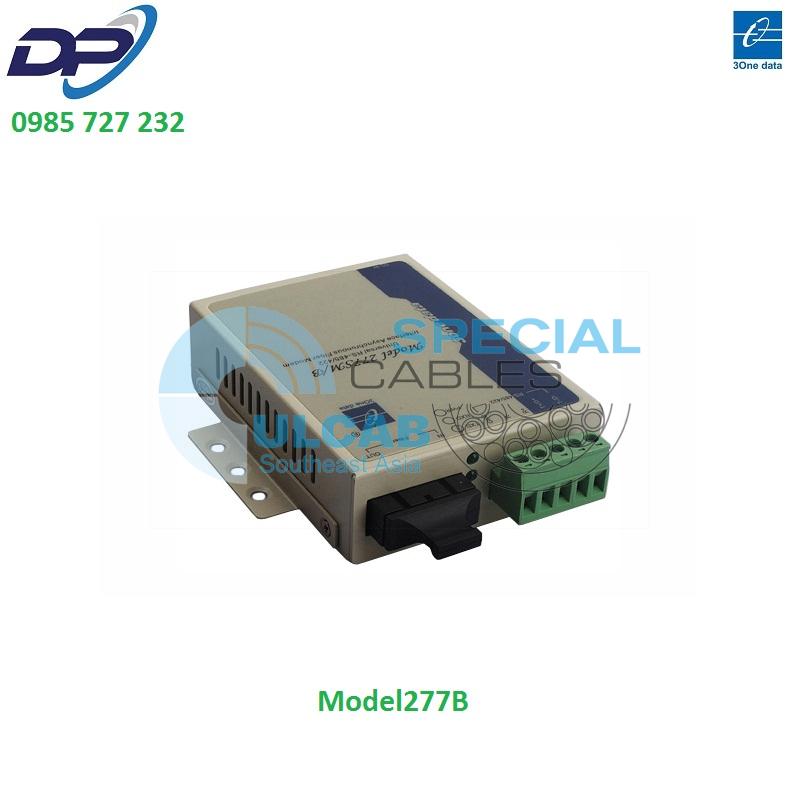

Model : Model277B
Model277B is one kind can offer RS-485/422 serial port carry transparent optical fiber modem of transmission to get end to user, no need patch cords set up, switch over automatically, and can detect and examine the signal speed automatically, zero delays time to transmit automatically. Model277B adopt optic fiber transmit, have isolate protection, data privacy is fine, working steady, data, such threats to communication equipment as the wave is welled up and interfered with electromagnetically that the effective one has prevented the abominable environment from being struck by lightning, can work in the abominable and dangerous environment reliably.
Can be used in occasions such as various industrial control, course controlling, traffic controlling and intellectual district , especially suit the bank, electricity and interfering with environment department and system with the special requirement electromagnetically.
Can be used in occasions such as various industrial control, course controlling, traffic controlling and intellectual district , especially suit the bank, electricity and interfering with environment department and system with the special requirement electromagnetically.
Features
1. Extend RS-485/422 transmission up to 120Km with single-mode
2. Transmit asynchronously, point to point, speed reach 500Kbps
3. Examine signal speed automatically, zero delay time
4. Plug-and-Play(hot-pluggable, data format auto-sensing & self-adjusting)
5. Power External 5VDC
6. 600W surge protection, 15KV ESD protection
2. Transmit asynchronously, point to point, speed reach 500Kbps
3. Examine signal speed automatically, zero delay time
4. Plug-and-Play(hot-pluggable, data format auto-sensing & self-adjusting)
5. Power External 5VDC
6. 600W surge protection, 15KV ESD protection
Specification
RS-485/422
Standards: EIA RS-485, RS422 standard
RS-422 signal: T+, T-, R+, R-, GND
RS-485 signal: D+, D-, GND
Working mode: Asynchronism, point to point or multi point, 2 wire half-duplex,4 wire full duplex
Baud rate: 300~500Kbps, auto test serial signal rate detect signal speed automatically, zero delay time
Transfer distance: RS-485/422 side:1.2Km(9600bps)
Max number of drops: 128 nodes(RS-485/422)
Port protect: 600W surge protection
15KV ESD protection
Fiber Optic
Connectors: SC, FC or ST, optional
Fiber optic cables: Single Mode:8.3/125,8.7/125,9/125 or 10/125um
Muti-Mode:50/125,62.5/125 or 100/125um
Transmission: 20, 40,60,80, 120km(SM),
2km(MM) optional
Wavelength:850nm,1310nm,1550nm
Power
Power input: Power External 5VDC
Consumption: 120mA
Environment
Operating temperature: -25°C to 70°C
Storage temperature: -40°C to 85°C
Humidity: 5% to 95%(no condensation)
Appearance
Dimensions: 94.0×71.0×26.0mm(power external)
Material: Iron(shell)
Color: White
Weight: 230g(power external)
Warranty: 3 years
Approvals: FCC, CE, RoHS approvals
Standards: EIA RS-485, RS422 standard
RS-422 signal: T+, T-, R+, R-, GND
RS-485 signal: D+, D-, GND
Working mode: Asynchronism, point to point or multi point, 2 wire half-duplex,4 wire full duplex
Baud rate: 300~500Kbps, auto test serial signal rate detect signal speed automatically, zero delay time
Transfer distance: RS-485/422 side:1.2Km(9600bps)
Max number of drops: 128 nodes(RS-485/422)
Port protect: 600W surge protection
15KV ESD protection
Fiber Optic
Connectors: SC, FC or ST, optional
Fiber optic cables: Single Mode:8.3/125,8.7/125,9/125 or 10/125um
Muti-Mode:50/125,62.5/125 or 100/125um
Transmission: 20, 40,60,80, 120km(SM),
2km(MM) optional
Wavelength:850nm,1310nm,1550nm
Power
Power input: Power External 5VDC
Consumption: 120mA
Environment
Operating temperature: -25°C to 70°C
Storage temperature: -40°C to 85°C
Humidity: 5% to 95%(no condensation)
Appearance
Dimensions: 94.0×71.0×26.0mm(power external)
Material: Iron(shell)
Color: White
Weight: 230g(power external)
Warranty: 3 years
Approvals: FCC, CE, RoHS approvals
