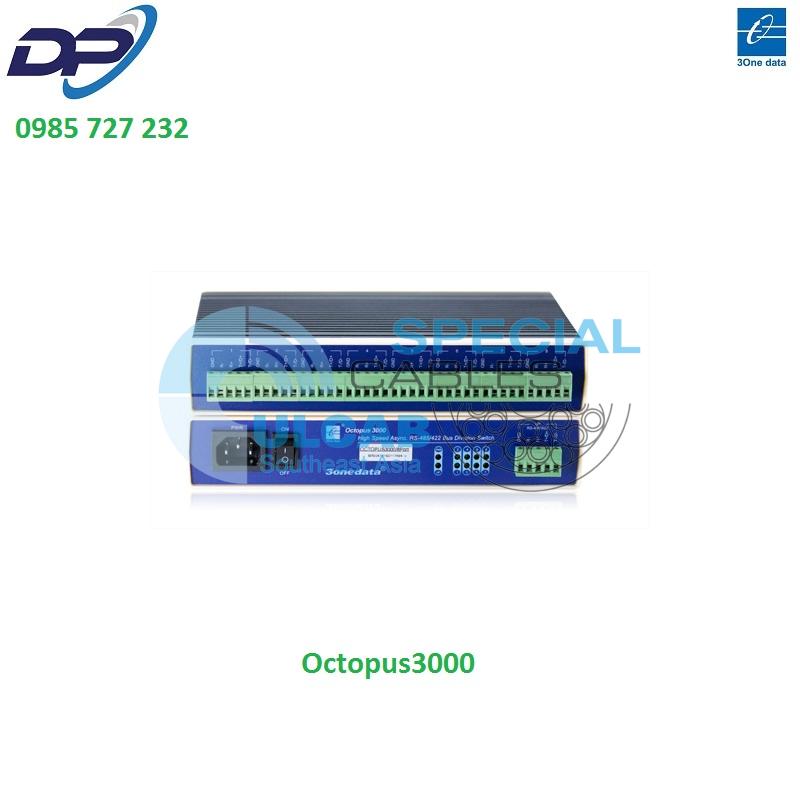

Model : Octopus3000
The fault network section shall be isolated in case of lightning strike or equipment faults to ensure the high communication reliability of other network sections. Such performance of Octopus3000 can significantly improve t he reliability of existing RS-485/RS-422 network, and effectively shorten the network maintenance time. Reasonable utilization of Octopus3000 can enable you to design unique RS-485/RS-422 system.
2. Star structure, bi-directional Converter RS232 to RS485/422 or RS485/422 repeater
3. Reach up to 3000m at the rate of 9600bps
4. 600W surge protection,15KV ESD protection, built-in short circuit protection
5. Each port 3000V optical isolation separately
6. Support stage connection, each port support 256 nodes loopback
7. Data direction auto-turnaround, no flow control is necessary
Standards: EIA RS-232C, RS-485, RS422 standard
RS-232 signal: TX, RX, GND
RS-422 signal: T+, T-, R+, R-, GND
RS-485 signal: D+, D-, GND
Working mode: Asynchronism, point to point, 2 wire half-duplex,4 wire full duplex
Baud rate: 300~115200bps, auto test serial signal rate detect signal speed automatically, zero delay time
Flow control: Data direction auto-turnaround, no flow control is required
Transfer distance: RS-485/422 side:1.8Km(9600bps)
RS-232 side: no less than 15m
Loading: Support 256 nodes loopback
Optical isolation: 3000V
Port protection: 600W surge protection,15KV ESD protection
Connector: 5 bit terminal block
Power
Power input: 220VAC
Consumption: 5W
Environment
Operating temperature: -10°C to 60°C
Storage temperature: -40°C to 85°C
Humidity: 5% to 95%(no condensation)
Appearance
Dimensions: 227.0mm×146.0mm×43.0mm
Material: Plastic
Color: Black
Weight: 1000g
Warranty: 3 years
Approvals: FCC, CE, RoHS approvals
