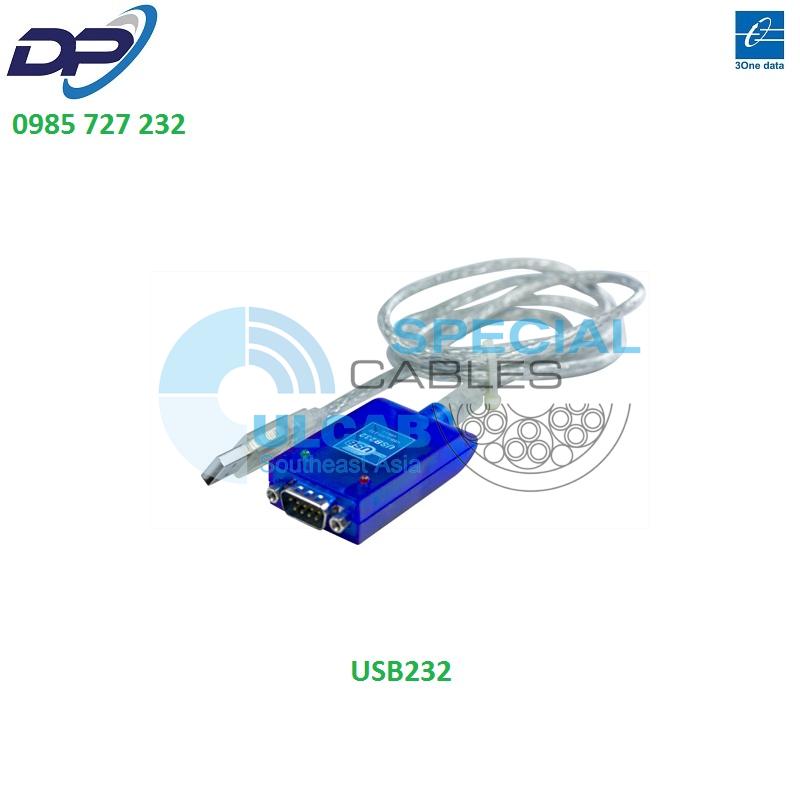

Model : USB232
2. No power supply needed, plug and play
3. Single chip(ASIC) USB port to serial port communication,Automatic detective serial signal rate
4. Accord USB1.1 or 2.0, EIA RS232 standard
5. USB full-speed to 12Mbps
6. LED indication: RXD/TXD(RS-232)
USB
Compliance: USB1.1/2.0 compliant
Connector: USB type A
Speed: 12Mbps(full-speed)
Serial interface
Numbers of ports: 1
Serial standards: RS-232
Connector: DB9 male
Serial Line protection
ESD Protection: 15KV embedded
Performance
Baudrate: 300bps to 115.2Kbps
Serial Communication Parameters
Data Bites: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
FIFO: 128 bytes
Serial Signals
RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND
Driver Support
Operating System: Support Windows98/ME and Windows2000/XP,Windows Server 2003/2008, Windows 7/Vista
Physical Characteristics
Weight: Products only: 70g
Packaged: 120g
Dimension: 70mm×35mm×18mm(wiring 1.5m)
Environment
Working temperature: -10 to 60°C
Storage temperature: -25 to 85°C
Humidity: Relative humidity 5% to 95%
Power requirements
No power supply needed, powered from USB
Consumption: Static consumption less than 80mA, dynamic average consumption less than 150mA
Warranty: 3 years
Approvals: FCC, CE, RoHS approvals
