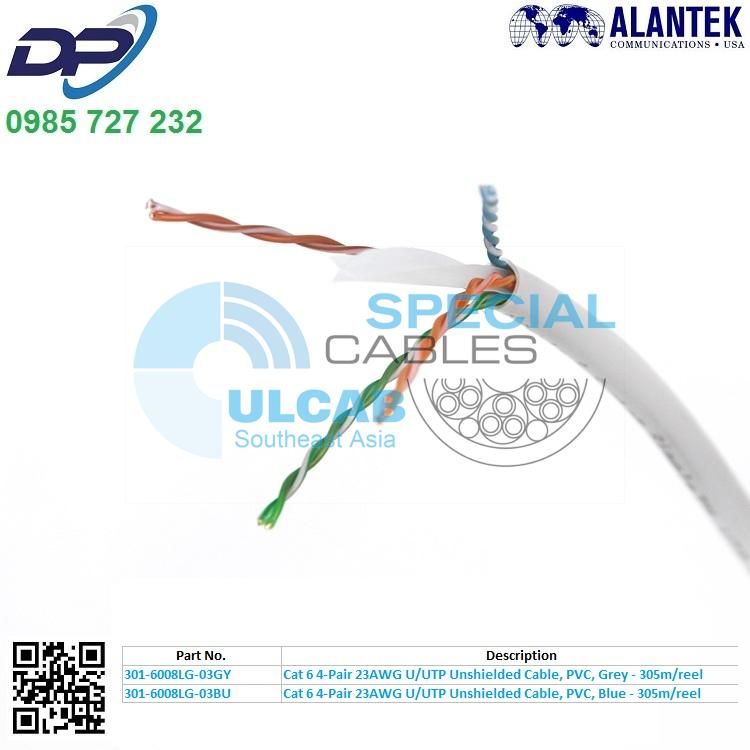

CAT 6 4-Pair 23AWG U/UTP Cable
Description
Alantek Cat6 Twisted Pair Cable is designed to support high-bandwidth application up to 10Gigabit* Ethernet. The
cable is composed of 23 AWG bare solid copper conductors insulated with High Density Polyethylene (HDPE) insulation. For the unshielded cable, the 4 twisted pairs are separated by a flexible PE separator and the cable is completed with an Outer Jacket. For the shielded cable, an additional layer of Aluminum Foil covers the 4 twisted pairs.
Standards
ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173
Physical Characteristics
| Conductor (x 4pair) | Conductor Insulation | Jacket | Max Tensile Load (Installation): |
|
| Material | Solid Bare Copper | HDPE | PVC | |
| Dimension | 23AWG (0.56mm) | 1.03 ± 0.01 mm (Dia) | 6.4 ± 0.2 mm (Dia) | 100 N |
Electrical Characteristics
| FREQ. | ATTN. | NEXT | ACR | RL | PS NEXT | PS ACR | ELFEXT | PS ELFEXT |
| MHz | dB/100m | dB | dB/100m | dB | dB | dB/100m | dB | dB |
| 1 | 2 | 74.3 | 72.3 | 20 | 72.3 | 70.3 | 67.8 | 64.8 |
| 4 | 3.8 | 65.3 | 61.5 | 23 | 63.3 | 59.5 | 55.8 | 52.8 |
| 8 | 5.3 | 60.8 | 55.5 | 24.5 | 58.8 | 53.5 | 49.7 | 46.7 |
| 10 | 6 | 59.3 | 53.3 | 25 | 57.3 | 51.3 | 47.8 | 44.8 |
| 16 | 7.6 | 56.2 | 48.6 | 25 | 54.2 | 46.6 | 43.7 | 40.7 |
| 20 | 8.5 | 54.8 | 46.3 | 25 | 52.8 | 44.3 | 41.8 | 38.8 |
| 25 | 9.5 | 53.3 | 43.8 | 24.3 | 51.3 | 41.8 | 39.8 | 36.8 |
| 31.25 | 10.7 | 51.9 | 41.2 | 23.6 | 49.9 | 39.2 | 37.9 | 34.9 |
| 62.5 | 15.4 | 47.4 | 32 | 21.5 | 45.4 | 30 | 31.9 | 28.9 |
| 100 | 19.8 | 44.3 | 24.5 | 20.1 | 42.3 | 22.5 | 27.8 | 24.8 |
| 200 | 29 | 39.8 | 10.8 | 18 | 37.8 | 8.8 | 21.8 | 18.8 |
| 250 | 32.8 | 38.3 | 5.5 | 17.3 | 36.3 | 3.5 | 19.8 | 16.8 |
| Part No. | Description |
| 301-6008LG-03GY | Cat 6 4-Pair 23AWG U/UTP Unshielded Cable, PVC, Grey – 305m/reel |
| 301-6008LG-03BU | Cat 6 4-Pair 23AWG U/UTP Unshielded Cable, PVC, Blue – 305m/reel |
DATA SHEET
